Product Description
C8180(900-9X81E-00EX-ST0)
C8180(900-9X81E-00EX-ST0)

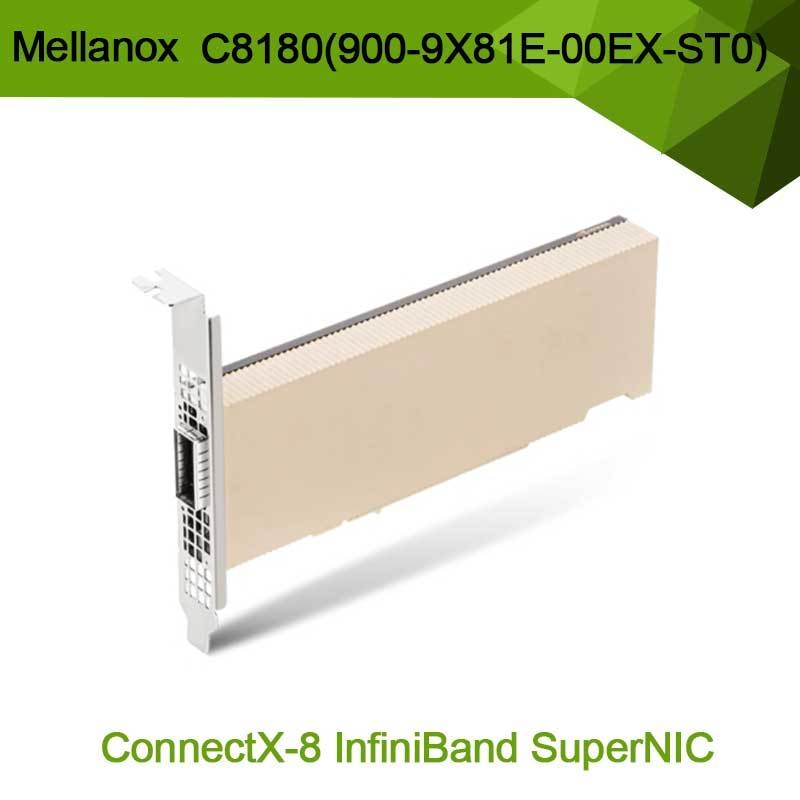

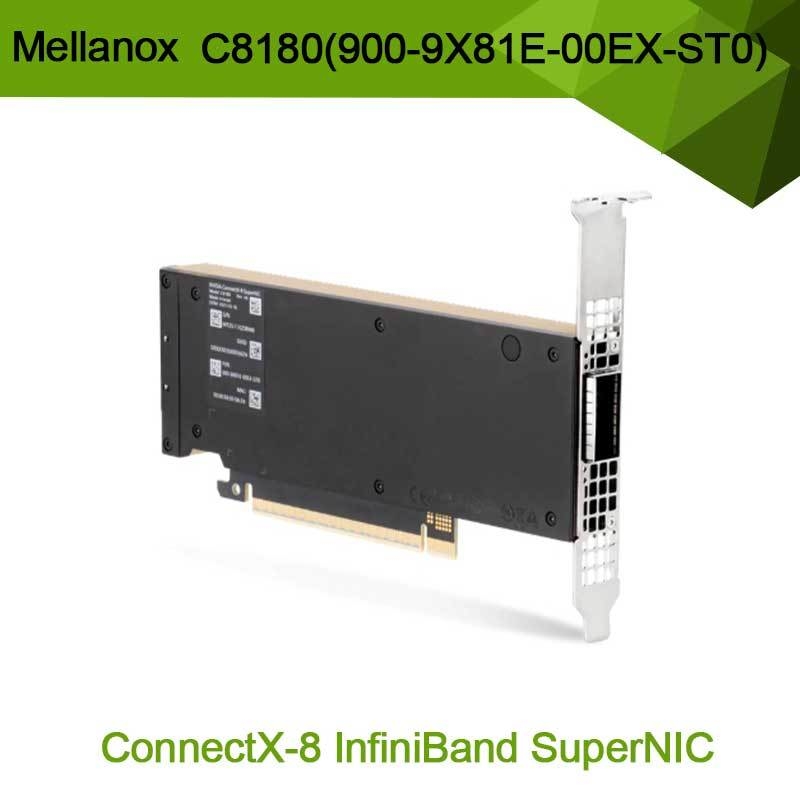

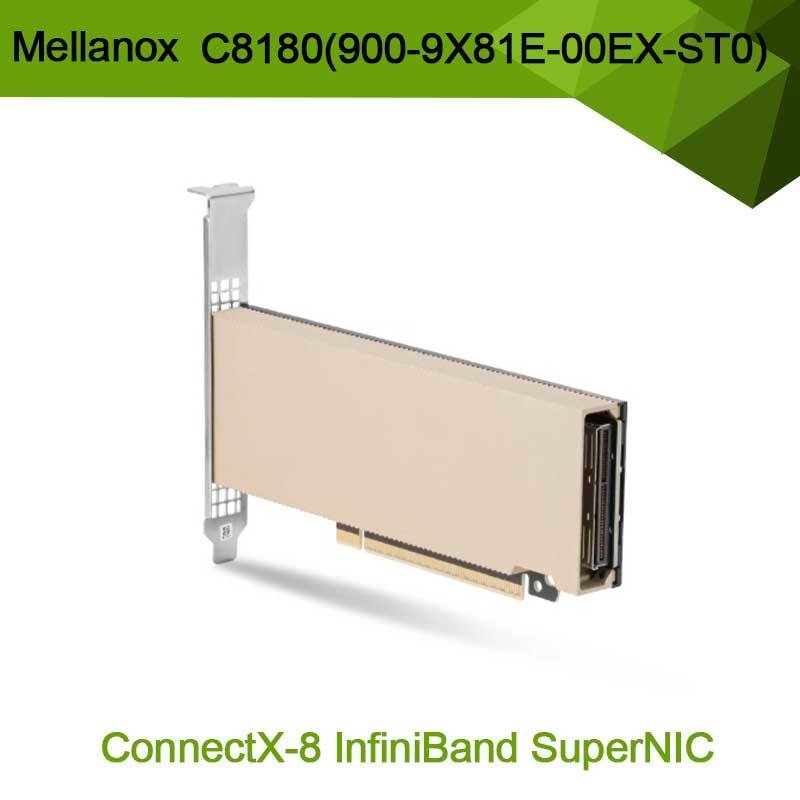

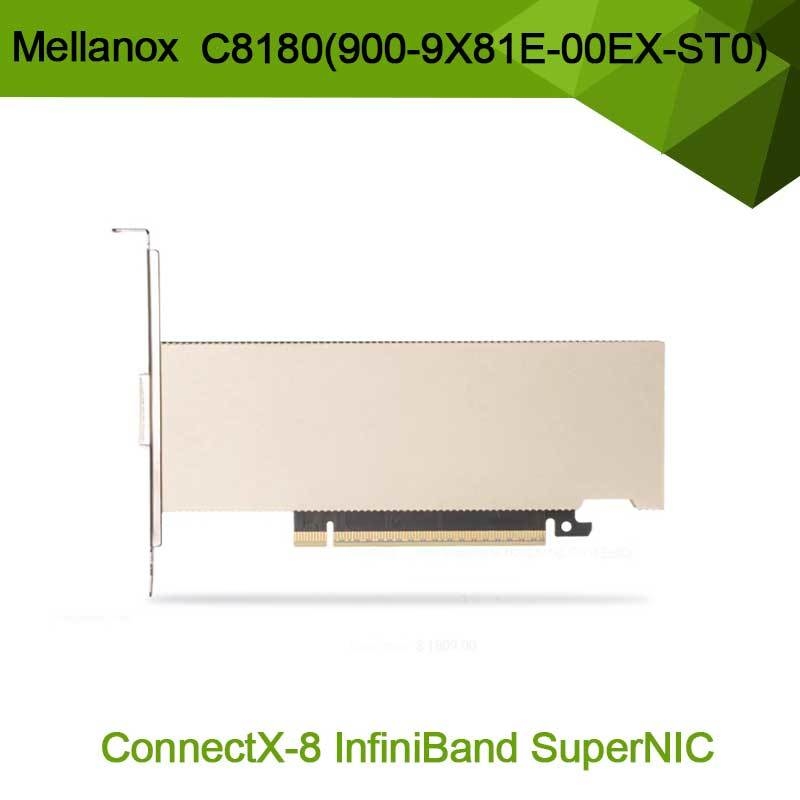

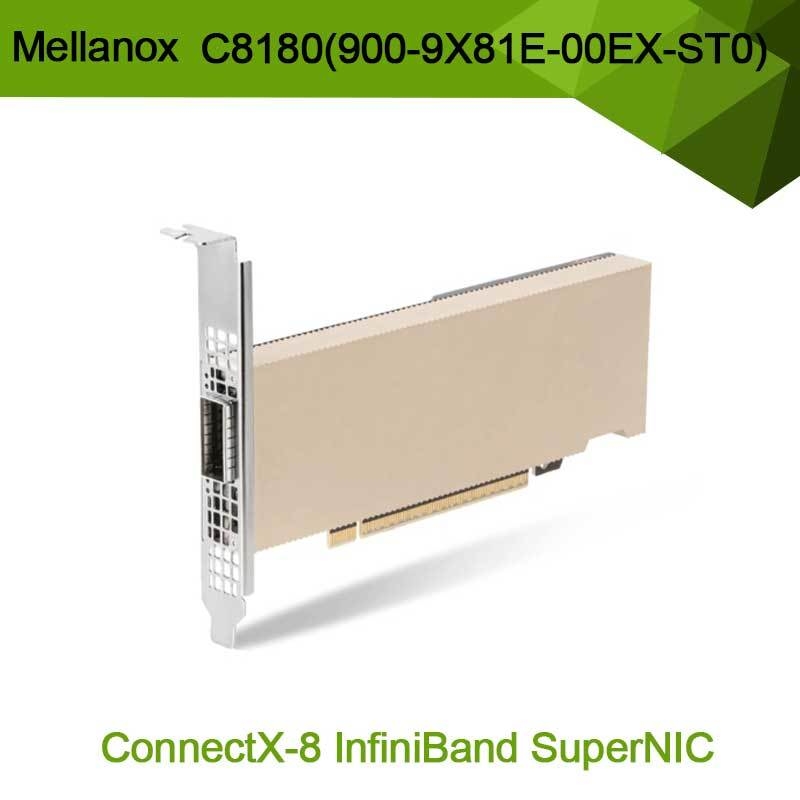

The NVIDIA® ConnectX®-8 SuperNIC™ is optimized to supercharge hyperscale AI computing workloads. With support for both InfiniBand and Ethernet networking at up to 800 gigabits per second (Gb/s), ConnectX-8 SuperNIC delivers high-speed, efficient network connectivity, significantly enhancing system performance for AI factories and cloud data center environments.C8180(900-9X81E-00EX-ST0)
Powerful Networking for Generative AI C8180(900-9X81E-00EX-ST0)
Central to NVIDIA's AI networking portfolio, ConnectX-8 SuperNICs fuel the next wave of innovation in forming accelerated, massive-scale AI compute fabrics. They seamlessly integrate with next-gen NVIDIA networking platforms, providing end-to-end 800Gb/s connectivity. These platforms offer the robustness, feature sets, and scalability required for trillion-parameter GPU computing and generative AI applications.
C8180(900-9X81E-00EX-ST0)
C8180(900-9X81E-00EX-ST0)
With enhanced power efficiency, ConnectX-8 SuperNICs support the creation of sustainable AI data centers operating hundreds of thousands of GPUs, ensuring a future-ready infrastructure for AI advancements.
ConnectX-8 SuperNICs enable advanced routing and telemetry-based congestion control capabilities, achieving the highest network performance and peak AI workload efficiency. Additionally, ConnectX-8 InfiniBand SuperNICs extend the
capabilities of NVIDIA® Scalable Hierarchical Aggregation and Reduction Protocol to boost In-network computing in high-performance computing environments, further enhancing overall efficiency and performance.
|
Model
|
NVIDIA SKU
|
Port Type
|
Supported Speed
|
Form Factor
|
PCIe Express
|
Socket Direct Extension Option
|
Crypto
|
Secure Boot
|
Bracket Type
|
|
C8240
|
900-9X81Q-00CN-ST0
|
Dual-port QSFP112
|
InfiniBand: NDR IB (Default)
Ethernet: 400GbE
|
Half-Height, Half-Length (HHHL)
|
PCIe 6 x16
|
YES
|
YES
|
YES
|
Tall Bracket
|
|
C8180
|
900-9X81E-00EX-ST0
|
Single-cage OSFP
|
InfiniBand: 800Gbs XDR IB (Default)
Ethernet: 2x400GbE
|
Half-Height, Half-Length (HHHL)
|
PCIe 6 x16
|
YES
|
YES
|
YES
|
Tall Bracket
|
|
900-9X81E-00EX-DT0
|
Single-cage OSFP
|
InfiniBand: 800Gbs XDR IB (Default)
Ethernet: 2x400GbE
|
Half-Height, Half-Length (HHHL)
|
PCIe 6 x16
|
YES
|
YES
|
YES
|
Tall Bracket
|
|
C8180L
Partner Cooled
|
900-9X81E-00EX-SL0
|
Single-cage OSFP
|
InfiniBand: 800Gbs XDR IB (Default)
Ethernet: 2x400GbE
|
Half-Height, Half-Length (HHHL)
|
PCIe 6 x16
|
YES
|
YES
|
YES
|
Tall Bracket
|
|
Physical
|
SuperNIC Dimensions: PCIe Half Height, Half Length 2.69 in. x 6.58 in. (68.50mm x 168.40mm)
|
|
Interfaces
|
SeeSupported Interfaces
|
|
PCI Express Interface
|
Gen6 SERDES @ 64GT/s, x16 lanes (Gen 5 compatible)
|
|
Optional: Additional PCIe x16 Gen5 @ SERDES 32GT/s through the PCIe auxiliary card and MCIO harness
|
|
Networking Port: Single cage OSFP InfiniBand and Ethernet
|
|
Data Rate
|
InfiniBand (Default)
|
XDR/NDR/HDR/HDR100/EDR/SDR
|
|
Ethernet
|
400/200/100 Gb/s Ethernet
|
|
Protocol Support
|
InfiniBand: IBTA v1.7a
Auto-Negotiation: XDR (4 lanes x 200Gb/s per ) port, NDR (4 lanes x 100Gb/s per lane) port, NDR200 (2 lanes x 100Gb/s per lane) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane) port, EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1X/2X/4X SDR (2.5Gb/s per lane).
|
|
Ethernet: 400GAUI-4 C2M, 400GBASE-CR4, 200GAUI-2 C2M, 200GAUI-4 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GAUI-1 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2 , 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M , XLPPI, SFI
|
|
Capabilities
|
900-9X81Q-00CN-ST0
|
Secure Boot Enabled, Crypto Enabled with x16 PCIe extension option
|
|
900-9X81E-00EX-DT0
|
Secure Boot Enabled, Crypto Enabled with x16 PCIe Down-Stream Port Extension Option
|
|
Electrical and Thermal Specifications
|
Voltage: 12V, 3.3V, 3.3VAUX
|
|
The complete electrical and thermal specifications are provided in "NVIDIA ConnectX-8 SuperNIC Product Specifications" document. You can access the document either by logging into NVOnline or by contacting your NVIDIA representative.
|
|
Environmental
|
Temperature
|
Operational
|
0°C to 55°C
|
|
Non-operational
|
-40°C to 70°Cb
|
|
Humidity
|
Operational
|
10% to 85% relative humidity
|
|
Non-operational
|
10% to 90% relative humidity
|
|
Altitude (Operational)
|
3050m
|
|
Regulatory
|
Safety: CB / cTUVus / CE
|
|
EMC: CE / FCC / VCCI / ICES / RCM / KC
|
|
RoHS: RoHS Compliant
|
|
Notes:
a. The ConnectX-8 SuperNICs supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. The non-operational storage temperature specifications apply to the product without its package.
|
