Mellanox network card Bluefield-2 2.75GHz Dpu for Enhanced Data Management Mbf2h516c-Cesot
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MBF2H516C-CESOT |
| Document: | Mbf2h516c-Cesot nvidia-blue...de.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MBF2H516C-CESOT | Ports: | Dual-Port |
|---|---|---|---|
| Technology: | Ethernet | Private Mold: | No |
| Transport Package: | Packing | Trademark: | Mellanox |
| Transmission Rate: | 1/10/25/40/50/100g | Interface Type: | Pcle 4.0 X16 |
| Highlight: | Mellanox Bluefield-2 network card,2.75GHz DPU network card,Mellanox network card with warranty |
||
Product Description

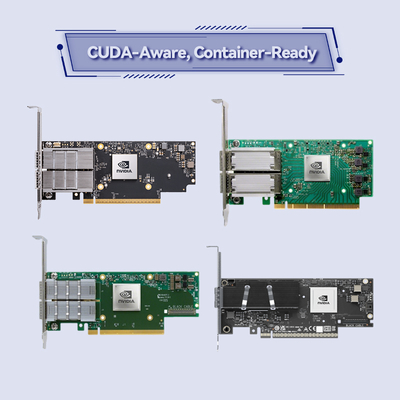

NVIDIA BlueField-2 DPU Network Card (MBF2H516C-CESOT)
1. Product Overview
The NVIDIA BlueField-2 Data Processing Unit (DPU) model MBF2H516C-CESOT is a high-performance, programmable network card designed for modern data centers. It combines powerful Arm® cores with ConnectX-6 Dx network adapter technology to offload, accelerate, and isolate data center infrastructure tasks like networking, storage, and security. This NIC card supports dual-port 100Gb/s Ethernet connectivity and is ideal for accelerating AI, cloud, and enterprise workloads.
2. Key Characteristics
- Dual-port 100Gb/s Ethernet connectivity via QSFP56 cages
- 8x Arm® Cortex-A72 cores running at up to 2.75GHz
- Hardware offloads for networking, storage, and security
- 16GB DDR4 memory with ECC protection
- 128GB eMMC onboard storage
- PCIe Gen 4.0 x16 host interface
- Out-of-Band (OOB) 1GbE management port
3. Core Technologies
The BlueField-2 DPU leverages NVIDIA’s DOCA software framework, RoCE (RDMA over Converged Ethernet), and hardware acceleration for NVMe over Fabrics, TLS/IPSEC encryption, and virtualization. It supports SR-IOV, GPUDirect® RDMA, and PCIe atomics for high-performance computing environments.
4. Working Principle
The BlueField-2 network card operates as a standalone data-centric processor. It offloads infrastructure functions from the host CPU, handling tasks such as packet processing, encryption, and storage protocols directly on the card. The integrated Arm cores run a full Linux OS, enabling custom application deployment and secure service isolation.
5. Applications
- Software-Defined Storage (SDS) and Hyper-Converged Infrastructure (HCI)
- AI and Machine Learning training clusters
- Cloud and Enterprise Data Center Networking
- Network Function Virtualization (NFV) and Security Offload
- High-Performance Computing (HPC) and Big Data analytics
6. Specifications
| Attribute | Value |
|---|---|
| Model | MBF2H516C-CESOT |
| Form Factor | FHHL (Full-Height Half-Length) |
| Ports | 2 x QSFP56 |
| Speed | Up to 100Gb/s per port |
| Host Interface | PCIe Gen 4.0 x16 |
| Onboard Memory | 16GB DDR4 + 128GB eMMC |
| Power Connector | 6-pin ATX (auxiliary) |
| Dimensions | 167.65mm x 115.15mm |
7. Advantages
- Reduces host CPU overhead by offloading infrastructure tasks
- Enables zero-trust security with hardware-isolated workloads
- Improves network performance with RoCE and RDMA support
- Provides full programmability with NVIDIA DOCA SDK
- Designed for high scalability in hyperscale and cloud environments
8. Service & Support
We offer global shipping, 24/7 technical support, and a standard manufacturer warranty. Custom configuration and bulk pricing available. Our team provides integration support and firmware updates.
9. Frequently Asked Questions
Q: Does this DPU support virtualization?
A: Yes, it supports SR-IOV with up to 1,000 virtual functions per port.
Q: What cables are compatible with the QSFP56 ports?
A: You can use DAC, AOC, or optical transceivers compliant with 100GbE standards.
Q: Is the DPU compatible with VMware?
A: Yes, it is fully compatible with VMware vSphere and supports NetQueue.
10. Precautions
- Ensure proper airflow and cooling in the server chassis
- Use only certified cables and transceivers
- Verify PCIe slot compatibility (x16 required)
- Update to the latest firmware and drivers before deployment
- Follow ESD safety procedures during installation
