Versatile Psr75-12A Switching Power Supply for Electronic Devices PSR75-12A Carton
Product Details:
| Brand Name: | H3C |
| Model Number: | PSR75-12A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Model NO.: | PSR75-12A | Transmission Rate: | 75W |
|---|---|---|---|
| Ports: | ≦8 | Maximum Input Current: | 2.5A |
| Transport Package: | Carton | Specification: | 101.6× 41.1× 177 Mm |
| Trademark: | H3C | Origin: | China |
Product Description

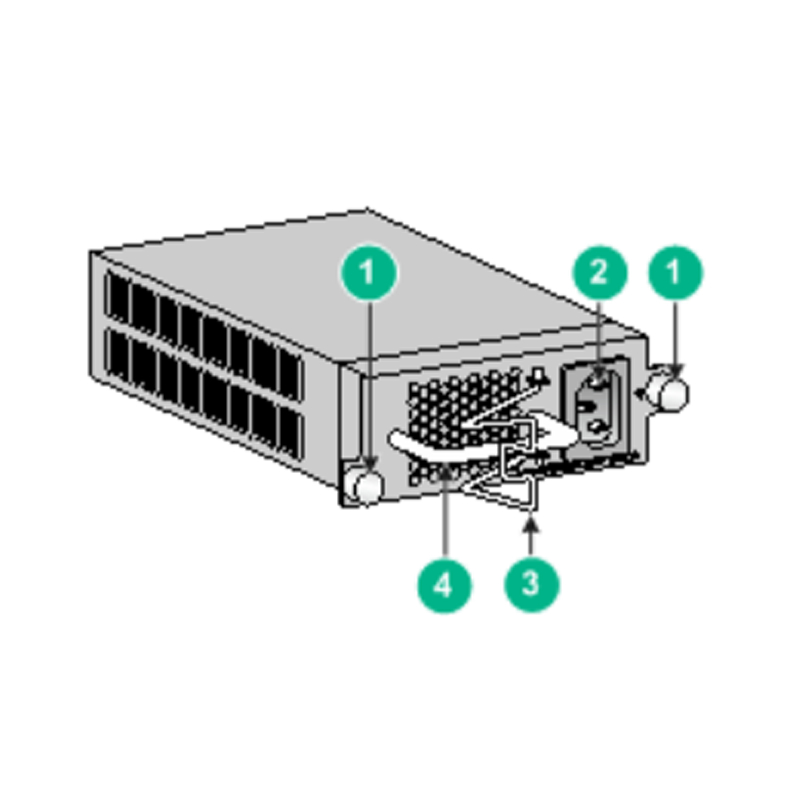

The PSR75-12A is a power module that provides DC output, both AC input and DC input. The maximum output power of this power module is 75W, and its main features are shown in Table 1.PSR75-12A
To avoid damage to the power module and equipment and personal injury, follow these precautions:
l When installing and disassembling the power module, please wear an anti-static wrist strap, make sure that the anti-static wrist strap is in good contact with the skin, and confirm that the anti-static wrist strap is well grounded.PSR75-12A
l Before installing the power module, please ensure that the working voltage of the external power supply system is consistent with the voltage marked by the power module, and the output voltage of the power module is consistent with the voltage required by the equipment.
l Please do not touch any wires and terminals exposed in the power module.PSR75-12A
l Please do not place the power module in a humid place, and do not let liquid enter the inside of the power module.
l In order to prevent damage to the power module, please do not open the power module shell at will, and hand it over to the maintenance personnel for maintenance when the internal circuits or components of the power module fail.PSR75-12A
|
project
|
specification
|
|
|
AC input
|
Rated input voltage range
|
100V~240V AC,50/60Hz
|
|
Maximum input voltage range
|
90V~290V AC,47~63Hz
|
|
|
Maximum input current
|
2.5A
|
|
|
High voltage DC input
|
Rated input voltage range
|
240V DC
|
|
Maximum input voltage range
|
180V~320V DC
|
|
|
Maximum input current
|
1A
|
|
|
Output voltage
|
12V
|
|
|
Output current
|
6.3A
|
|
|
Maximum output power
|
75W
|
|
|
Dimensions (W×H×D)
|
101.6×41.1×177 mm
|
|
|
weight
|
0.72kg
|
|
|
Operating ambient temperature
|
-10°C~55°C
|
|
|
relative humidity
|
5%~95%,no condensation
|
|
