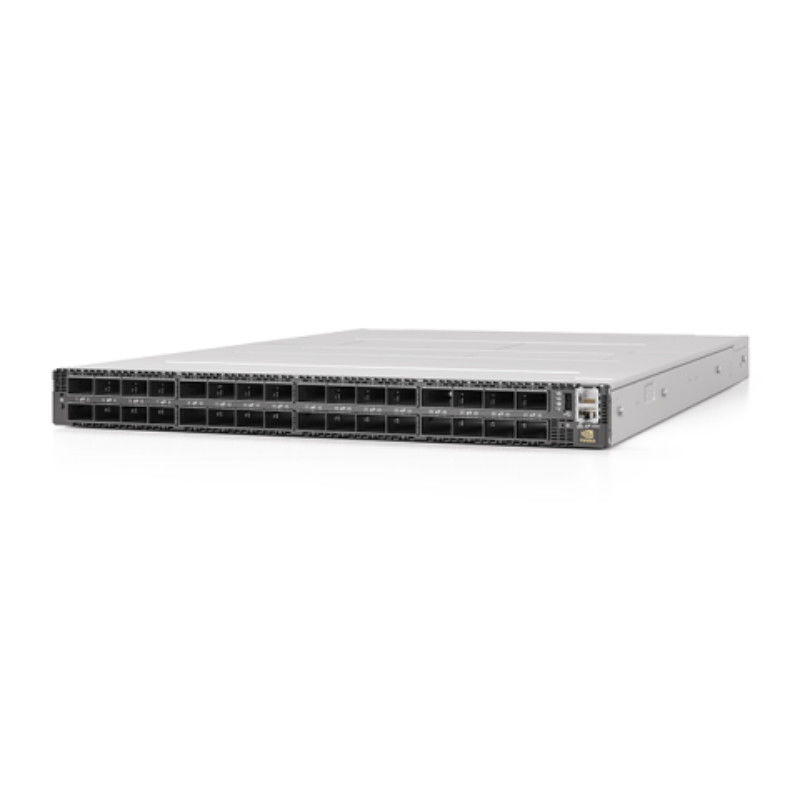

MQM9700-NS2F Quantum 2 NDR InfiniBand Switch MQM9700-NS2F Mellanox Network Switch

MQM9700-NS2F Quantum 2 NDR InfiniBand Switch MQM9700-NS2F Mellanox Network Switch

Brand Name:

Mellanox

Model Number:

Mellanox Network Switch MQM9700-NS2F

CONTACT US

Request A Quote
Product Details
Products Status:
Stock
Application:
Server
Condition:
New And Original
Warranty:
1 Year
Switching Capacity:
16.8 Tbps
Uplink Connectivity:
400 Gbps
Name:
MQM9700-NS2F Quantum 2 NDR InfiniBand Switch MQM9700-NS2F
Keyword:
Mellanox Network Switch
Product Description

MQM9700-NS2F Quantum 2 NDR InfiniBand Switch MQM9700-NS2F

MQM9700-NS2F Mellanox Network switch Product Description

The NVI DIA Quantum-2-based QM9700 and QM9790 switch systems deliver an unprecedented 64 ports of 400Gb/s InfiniBand per port in a 1U standard chassis design. A single switch carries an aggregated bidirectional throughput of 51.2 terabits per second (Tb/s), with a landmark of more than 66.5 billion packets per second (BPPS) capacity. Supporting the latest NVI DIA high-speed interconnect 400Gb/s technology, NVI DIA Quantum-2 brings a high-speed, extremely low-latency and scalable solution that incorporates state-of-the-art technologies such as Remote Direct Memory Access (RDMA), adaptive routing, and NVI DIA Scalable Hierarchical Aggregation and Reduction Protocol (SHARP)

MQM9700-NS2F Mellanox Network card Parameter form

item

Features

Model

Mellanox Network Switch MQM9700-NS2F

Form factor

2U

Ports

48 QSFP28 ports

Switching capacity

16.8 Tbps

Maximal data rate

11.5 Bpps

Latency

90 ns (InfiniBand) / 300 ns (Ethernet)

Power consumption

1500W (max)



Key Specifications

Performance
  • 400Gb/s per port
Switch radix
  • 64 400Gb/s non-blocking ports with aggregate data throughput up to 51.2Tb/s
Connectors and cabling
  • 32 octal small form-factor pluggable (OSFP) connectors; passive or active copper or active fiber cable; optical module
Power supply
  • 1+1 redundant and hot-swappable power
  • Input range: 200-240Vac; US min: 2 phases of 100-110v—in total, at least 208v
  • 80 Gold+ and ENERGY STAR certified

MQM9700-NS2F Quantum 2 NDR InfiniBand Switch MQM9700-NS2F Mellanox Network Switch 0

MQM9700-NS2F Quantum 2 NDR InfiniBand Switch MQM9700-NS2F Mellanox Network Switch 1

MQM9700-NS2F Quantum 2 NDR InfiniBand Switch MQM9700-NS2F Mellanox Network Switch 2

MQM9700-NS2F Quantum 2 NDR InfiniBand Switch MQM9700-NS2F Mellanox Network Switch 3
