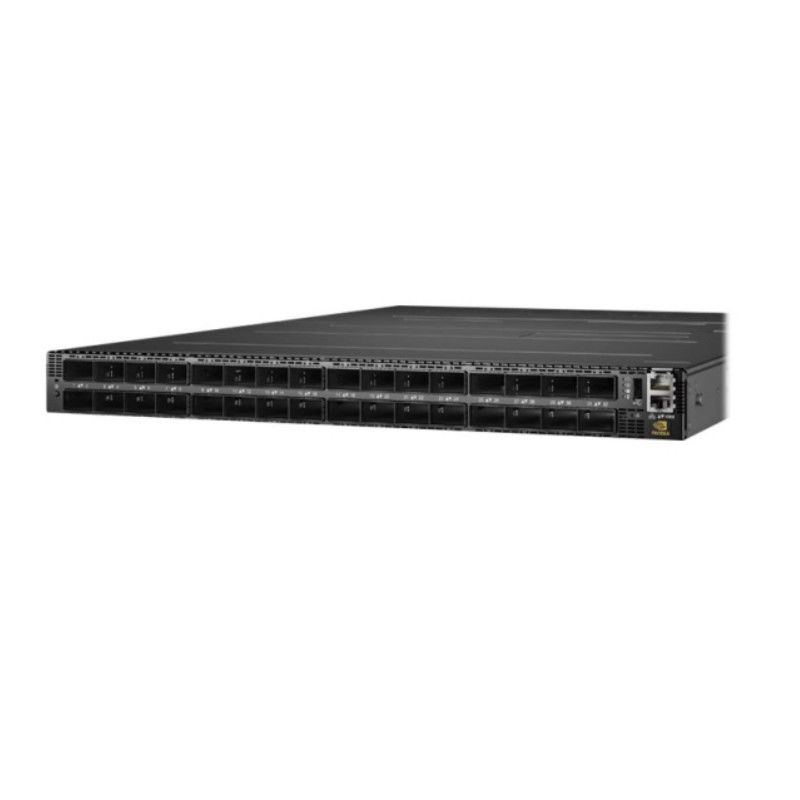

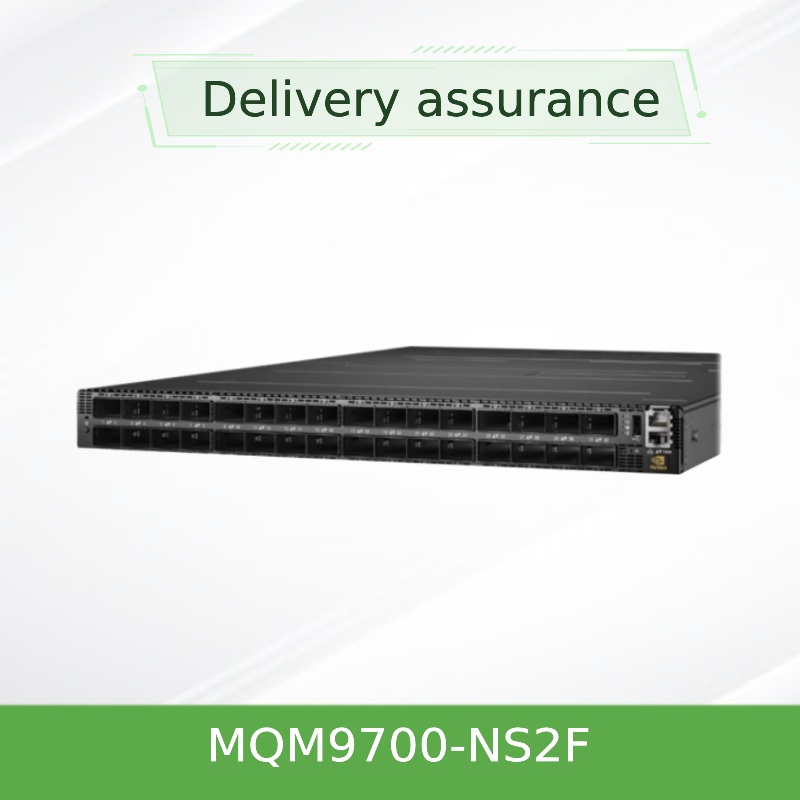

Quantum-2 QM9700 Mellanox Infiniband network Switch 64-Port Non-Blocking Managed NDR 400Gb/S MQM9700-NS2F(920-9B210-00FN-0M0)
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MQM9700-NS2F(920-9B210-00FN-0M0 |
| Document: | MQM9700 series.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Application: | Server | Condition: | New And Original |
|---|---|---|---|
| Total Throughput: | 51.2 Tb/s Bidirectional Bandwidth | Uplink Connectivity: | 400 Gbps |
| Name: | Mellanox Network Switch Quantum-2 QM9700 64-port Non-blocking Managed NDR 400Gb/s InfiniBand Switch MQM9700-NS2F | Keyword: | Mellanox Network Switch |
| Highlight: | MQM9700-NS2F Mellanox Infiniband Switch,QM9700 Mellanox Infiniband Switch |
||
Product Description
NVIDIA Quantum-2 QM9700 Series 400G InfiniBand Switch
MQM9700-NS2F Performance Highlights:
64 Ports
400Gb/s InfiniBand connectivity
51.2 Tb/s
Aggregate throughput capacity
32× Boost
AI acceleration performance
MQM9700-NS2F Product Overview
The NVIDIA Quantum-2 QM9700 Series represents a transformative advancement in high-performance networking, engineered to meet the escalating demands of modern AI research, machine learning, and high-performance computing environments. This cutting-edge 400G InfiniBand switch delivers unparalleled bandwidth, ultra-low latency, and revolutionary in-network computing capabilities that dramatically accelerate time-to-solution for the world's most complex computational workloads.
MQM9700-NS2F Technical Specifications
| Parameter | Specification |
|---|---|
| Port Configuration | 64 × 400Gb/s InfiniBand ports |
| Total Throughput | 51.2 Tb/s bidirectional bandwidth |
| Form Factor | 1RU standard chassis (1.7" H) |
| Connectivity | 32 × OSFP connectors |
| Power Supply | 1+1 redundant hot-swappable |
| Physical Dimensions | 1.7" H × 17.0" W × 26.0" D |
| System Weight | 14.5 kg (31.97 lbs) |
| Management Interfaces | CLI, WebUI, SNMP, JSON-RPC |
MQM9700-NS2F Advanced Technology Integration
The QM9700 incorporates NVIDIA's groundbreaking technologies including Remote Direct Memory Access (RDMA), Scalable Hierarchical Aggregation and Reduction Protocol (SHARP), and intelligent adaptive routing algorithms. These innovations work in concert to dramatically reduce latency, maximize bandwidth efficiency, and accelerate distributed artificial intelligence and high-performance computing applications.
MQM9700-NS2F Key Performance Features
SHARPy3 Technology
Delivers 32× greater AI acceleration compared to previous generations through advanced in-network computing
Adaptive Routing
Intelligent traffic management across all 64 non-blocking ports with dynamic load balancing
Multi-Topology Support
Compatible with Fat Tree, SlimFly, and DragonFly+ architectures for maximum deployment flexibility
Backward Compatibility
Full support for existing InfiniBand infrastructure with seamless integration capabilities
Application Environments
Optimized for artificial intelligence training clusters, high-performance computing environments, scientific research facilities, and large-scale cloud data centers. The QM9700's exceptional flexibility supports diverse network architectures, making it suitable for both current operational requirements and future expansion needs.
MQM9700-NS2F Model Selection Guide
| Model Identifier | Management | Airflow | Primary Use Case |
|---|---|---|---|
| MQM9700-NS2F | Integrated Subnet Manager | Port-to-Power | Standard data center deployment |
| MQM9700-NS2R | Integrated Subnet Manager | Power-to-Port | Reverse airflow environments |
| MQM9790-NS2F | External Management | Port-to-Power | UFM software integration |
| MQM9790-NS2R | External Management | Power-to-Port | Advanced management needs |
Frequently Asked Questions
What are the environmental operating specifications?
Operating temperature: 0°C to 35°C (forward airflow) or 0°C to 40°C (reverse airflow). Humidity: 10% to 85% non-condensing. Altitude: up to 3050m.
Does the QM9700 support existing InfiniBand infrastructure?
Yes, it maintains full backward compatibility with previous InfiniBand generations and supports both passive and active copper and optical cabling solutions.
What management options are available?
The switch supports comprehensive management through CLI, WebUI, SNMP, and JSON-RPC interfaces, with optional NVIDIA UFM software for advanced fabric management capabilities.
Operational Guidelines
- Maintain operating temperature within specified ranges for optimal performance
- Use only certified optical transceivers and cabling solutions for guaranteed compatibility
- Adhere to all applicable EMC and safety regulations in your region
- Implement regular firmware updates to maintain optimal performance and security
- Ensure proper airflow management in your data center environment
