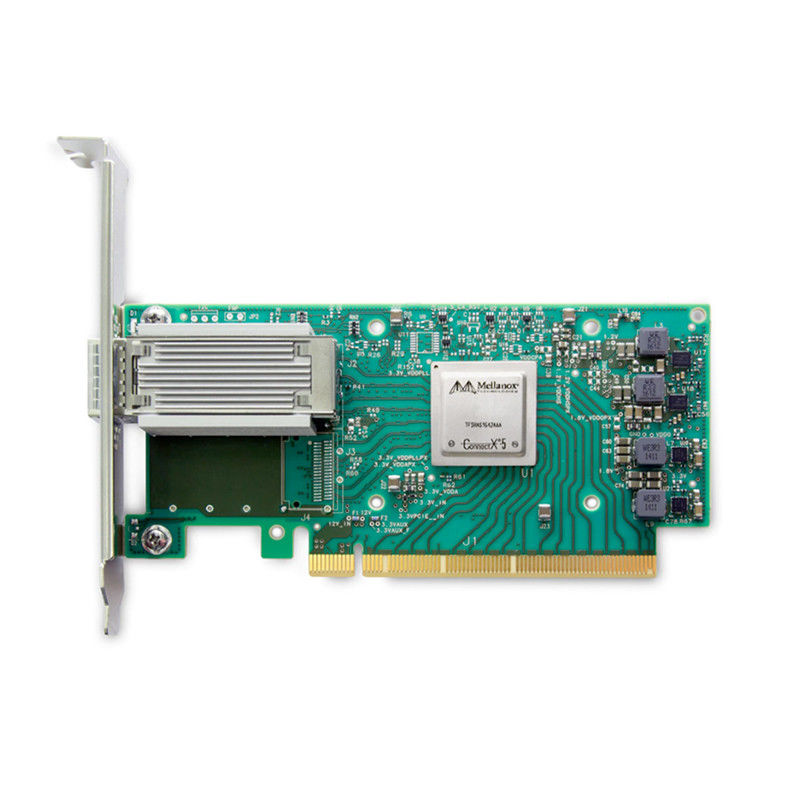

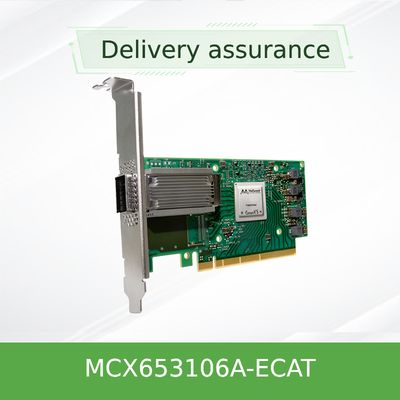

Original MCX653106A-ECAT Connect X-6 100Gb/S Dual Port QSFP56 Ethernet Adapter
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCX653106A-ECAT |
| Document: | connectx-6-infiniband.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Products Status: | Stock | Application: | Server |
|---|---|---|---|
| Interface Type:: | InfiniBand | Ports: | Dual |
| Max Speed: | 100GbE | Type: | Wired |
| Condition: | New And Original | Warranty Time: | 1 Year |
| Model: | MCX653106A-ECAT | Name: | Mellanox Network Card Original MCX653106A-ECAT Connect X-6 100Gb/s Dual-port QSFP56 Ethernet Adapter |
| Keyword: | Mellanox Network Card | ||
| Highlight: | MCX653106A-ECAT Mellanox Connectx 6,100Gb/S MELLANOX NIC,Dual Port QSFP56 Mellanox 100gb Nic |
||
Product Description
NVIDIA ConnectX-6 MCX653106A-ECAT: High-Performance InfiniBand Network Interface Card
The NVIDIA ConnectX-6 MCX653106A-ECAT represents the pinnacle of network interface card technology, delivering exceptional 200Gb/s bandwidth per port through advanced InfiniBand architecture. This cutting-edge NIC card incorporates sophisticated in-network computing capabilities that fundamentally transform data center performance by offloading critical processing tasks from host CPUs. Engineered for the most demanding computational environments, the ConnectX-6 adapter provides unprecedented throughput, ultra-low latency, and enhanced security features that make it ideal for next-generation data centers, artificial intelligence infrastructure, and high-performance computing clusters.
Distinguishing Characteristics
- Dual-port 200Gb/s InfiniBand connectivity
- Hardware-accelerated RDMA capabilities
- In-network computing intelligence
- Block-level XTS-AES encryption engine
- PCIe Gen 4.0 interface compatibility
- SR-IOV virtualization support (up to 1,000 VFs)
- NVMe over Fabrics offload technology
- GPUDirect RDMA for accelerated GPU communication
Advanced Technological Architecture
The ConnectX-6 network card incorporates multiple breakthrough technologies that set new standards for data center networking. Its architecture supports both InfiniBand and Ethernet protocols simultaneously, providing exceptional flexibility for diverse infrastructure requirements. The card's innovative approach to in-network computing enables distributed processing capabilities that significantly reduce computational overhead. With support for RDMA over Converged Ethernet (RoCE), TCP/UDP/IP stateless offload, and advanced virtualization through Single Root I/O Virtualization (SR-IOV), this NIC card delivers unparalleled performance across various deployment scenarios.
Operational Methodology
The ConnectX-6 NIC card operates through a sophisticated processing pipeline that begins with hardware-based packet classification and steering. Upon receiving network traffic, the card's specialized processors perform protocol analysis, security verification, and data optimization before forwarding packets to their destination. The integrated RDMA engine enables zero-copy data transfers between servers and storage systems, dramatically reducing latency and CPU utilization. For computational tasks, the in-network computing capabilities allow distributed processing across multiple nodes, creating a collaborative processing environment that accelerates complex computations while minimizing network congestion.
Deployment Scenarios
High-Performance Computing
Scientific research facilities and academic institutions utilizing computational clusters for complex simulations and data analysis
Artificial Intelligence
Machine learning training environments requiring high-speed interconnects between GPU arrays and storage systems
Cloud Data Centers
Large-scale virtualization platforms needing high-bandwidth, low-latency connectivity for tenant workloads
Financial Services
High-frequency trading systems and risk analysis platforms requiring microsecond-level latency
Technical Specifications
| Specification Category | Detailed Description |
|---|---|
| Product Model | MCX653106A-ECAT |
| Interface Type | Dual-port QSFP56 connectors |
| Maximum Throughput | 200 Gb/s per port (400 Gb/s aggregate) |
| Host Interface | PCI Express 4.0 x16 (backward compatible with PCIe 3.0) |
| Protocol Support | InfiniBand HDR, Ethernet (200/100/50/40/25/10/1 GbE) |
| RDMA Technology | RoCE v2, InfiniBand RDMA, GPUDirect RDMA |
| Security Features | Hardware-accelerated XTS-AES 256/512-bit encryption |
| Virtualization | SR-IOV with up to 1,000 virtual functions |
| Power Consumption | Typically under 25W maximum |
| Form Factor | Standard profile PCIe add-in card |
| Operating Systems | Linux, Windows Server, VMware ESXi, FreeBSD |
Competitive Advantages
Performance Leadership
Delivers 2x the bandwidth of previous generation ConnectX-5 adapters with 30% lower latency
Computational Efficiency
In-network computing offload reduces CPU utilization by up to 40% for data-intensive workloads
Security Excellence
Integrated hardware encryption with FIPS compliance ensures data protection without performance penalty
Deployment Flexibility
Dual-protocol support enables seamless integration into existing InfiniBand or Ethernet infrastructures
Service and Support Framework
We provide comprehensive support services for the ConnectX-6 network card, including technical consultation, configuration guidance, and integration assistance. Our support package features a standard manufacturer's warranty extended through our partnership with NVIDIA. We maintain substantial inventory levels to ensure prompt delivery, typically within 3-5 business days for most orders. Our technical team offers 24/7 support for critical issues and provides regular firmware updates to ensure optimal performance and security compliance.
Frequently Asked Questions
What are the cooling requirements for this network card?
The ConnectX-6 NIC card requires adequate airflow within the server chassis. For optimal performance, maintain ambient temperature below 35°C and ensure proper ventilation across the card's heat sink.
Can this adapter be used in existing PCIe 3.0 systems?
Yes, the network card is fully backward compatible with PCIe 3.0 systems, though maximum bandwidth will be limited to approximately 128 Gb/s per port in this configuration.
What cable types are supported for 200Gb connectivity?
The NIC card supports QSFP56 direct attach copper cables, active optical cables, and optical transceivers with appropriate multimode or single-mode fiber.
Is specialized software required for operation?
The card requires NVIDIA's MLNX_OFED driver package for Linux systems or WinOF-2 for Windows environments, both available as free downloads from NVIDIA's support portal.
How does the encryption feature impact performance?
Hardware-accelerated encryption operates at line rate with no measurable performance impact, maintaining full 200Gb/s throughput while providing security.
Installation and Operational Guidelines
- Ensure the host system is powered down and disconnected from power before installation
- Verify PCIe slot compatibility and available clearance for the full-length card
- Use appropriate ESD protection measures during handling and installation
- Update to the latest firmware version before deployment in production environments
- Configure appropriate airflow management to maintain optimal operating temperatures
- Consult compatibility matrices for switch and cable interoperability requirements
- Implement regular firmware updates to address security vulnerabilities and performance enhancements
