MQM8790-HS2F(920-9B110-00FH-0D0) Mellanox network Switch 40 Port 200G InfiniBand Data Center 40 X HDR QSFP56 Unmanaged
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MQM8790-HS2F(920-9B110-00FH-0D0) |
| Document: | MQM8700 series.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model: | MQM8790-HS2F(920-9B110-00FH-0D0) | Brand: | Mellanox |
|---|---|---|---|
| Application: | Server | Condition: | New And Original |
| Switching Capacity: | 16 Tb/s | Uplink Connectivity: | 200 Gbps |
| Highlight: | MQM8790-HS2F Mellanox Switch,200G Mellanox 40 Port Infiniband Switch,Data Center Mellanox Infiniband Switch |
||
Product Description

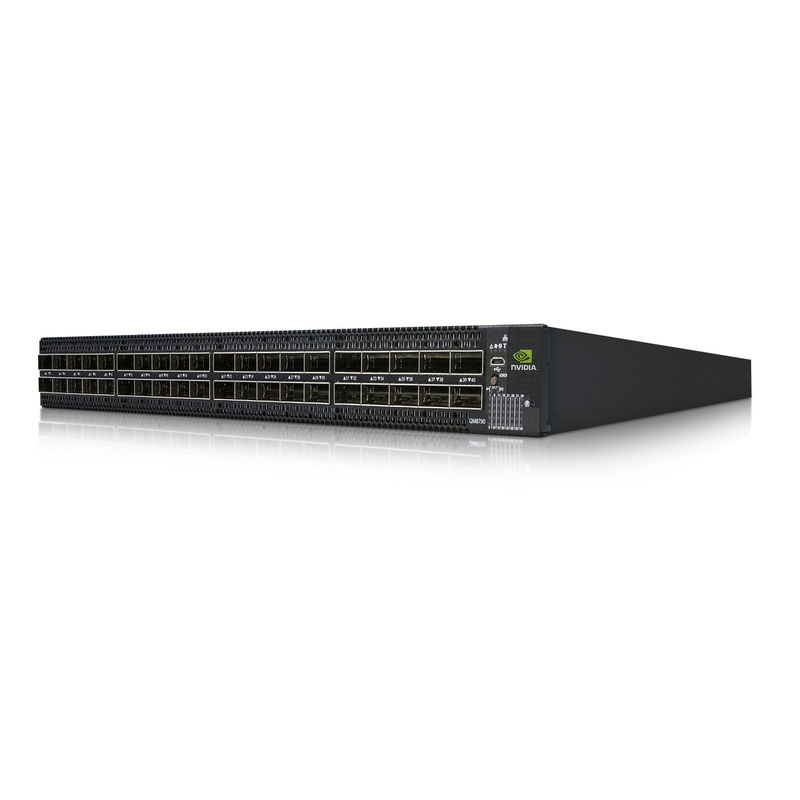

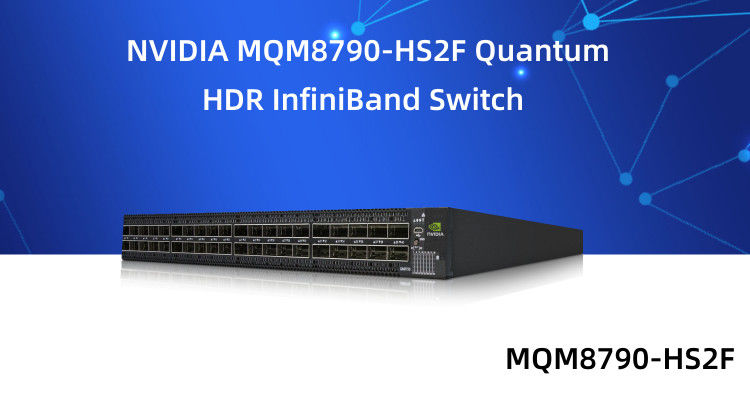

NVIDIA Quantum QM8790 200G InfiniBand Smart Switch
The NVIDIA Quantum QM8790 is a high-performance, 200Gb/s InfiniBand fixed-configuration switch designed for modern data centers. It delivers exceptional bandwidth, ultra-low latency, and advanced in-network computing capabilities, making it ideal for HPC, AI, cloud, and storage infrastructures.
MQM8790-HS2F Key Selling Points
- 40 non-blocking 200Gb/s ports or 80 bidirectional 100Gb/s ports
- 16 Tb/s aggregate switching capacity
- NVIDIA SHARP™ in-network computing acceleration
- Support for MPI, SHMEM, and NCCL communication frameworks
- Energy-efficient design with 80 PLUS Gold certified power supplies
MQM8790-HS2F Characteristics
- High radix and port density for scalable fabric designs
- Port splitting capability: 200G to 2x100G
- Hot-swappable, redundant power supplies
- Advanced management via CLI, WebUI, SNMP, JSON
- Compatible with Fat Tree, DragonFly+, Torus topologies
MQM8790-HS2F Technology
The QM8790 leverages NVIDIA's Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) to offload collective communication operations directly within the switch silicon. This reduces latency and improves performance for HPC and AI workloads. It supports InfiniBand NDR (200G) and is backward compatible with EDR and HDR.
MQM8790-HS2F Working Principle
The switch processes data in transit using embedded hardware accelerators. Instead of routing data multiple times between endpoints, it aggregates and reduces data within the network, significantly cutting down communication overhead and improving overall cluster efficiency.
MQM8790-HS2F Application & Usage
Ideal for:
- High-Performance Computing (HPC) clusters
- Artificial Intelligence and machine learning training
- Hyperscale cloud data centers
- High-speed storage networks
- Research and academic supercomputing environments
Specification Table
| Attribute | Value |
|---|---|
| Port Speed | 200Gb/s per port |
| Total Ports | 40 (OSFP56) |
| Switch Radix | 40 non-blocking |
| Throughput | 16 Tb/s |
| Power Supply | Dual, hot-swappable, 80 PLUS Gold |
| Management | WebUI, CLI, SNMP, JSON |
| Dimensions | 1U, 17" x 23.2" x 1.7" |
| Weight | 12.48 kg (with 2 PSUs) |
Advantages & Selling Points
- Up to 2x density for 100G networks with port splitting
- In-network computing reduces CPU overhead and latency
- Energy-efficient operation with dynamic power management
- Comprehensive software ecosystem and backward compatibility
- Robust management with NVIDIA UFM® platform support
Service & Support
We offer:
- 1-year manufacturer warranty
- 24/7 customer support and technical consultation
- Global shipping and logistics support
- On-site integration and deployment services available
FAQ
Q: Can the QM8790 be used as a top-of-rack switch?
A: Yes, its high port density and flexible configuration make it ideal for ToR deployments.
Q: Does it support existing 100G InfiniBand equipment?
A: Yes, it is backward compatible with 100G and 50G InfiniBand devices.
Q: What management options are available?
A: It supports NVIDIA UFM® for advanced fabric management, plus CLI, WebUI, SNMP, and JSON.
Q: Is the power supply redundant?
A: Yes, it comes with dual hot-swappable power supplies for high availability.
Precautions
- Operating temperature: 0°C to 40°C
- Humidity: 10% to 85% non-condensing
- Ensure proper airflow (P2C or C2P) based on model variant
- Use certified optical or copper cables for optimal performance
- Verify compatibility with existing network cards and adapters
