MCX512A-ACAT Mellanox ConnectX-5 EN Network Interface Card 10/25GbE Dual Port SFP28
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCX512A-ACAT |
| Document: | connectx-5-en-card.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Application: | Server | Interface Type:: | Network |
|---|---|---|---|
| Ports: | Dual | Max Speed: | 25GbE |
| Connector Type: | SFP28 | Type: | Wired |
| Condition: | New And Original | Model: | MCX512A-ACAT |
| Name: | Mellanox Network Card MCX512A-ACAT ConnectX-5 EN Network Interface Card 10/25GbE Dual-Port SFP28 | Keyword: | Mellanox Network Card |
| Highlight: | MCX512A ACAT MELLANOX Network Interface Card,MELLANOX CONNECTX 5 EN Network Interface Card,Mellanox Mcx512a Acat Connectx 5 0 25gbe Dual Port Sfp28 |
||
Product Description

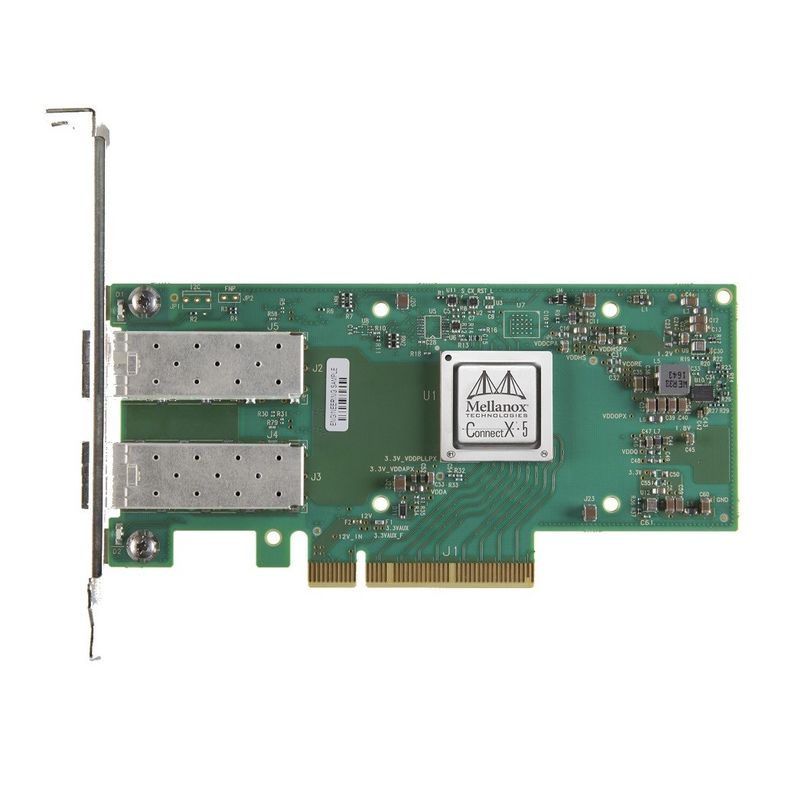

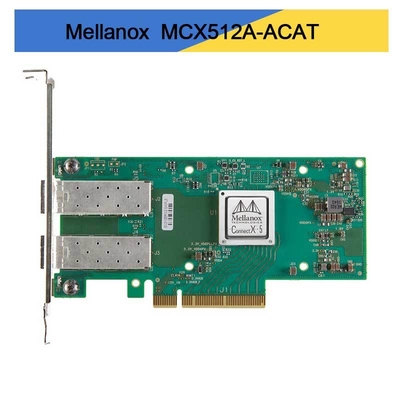

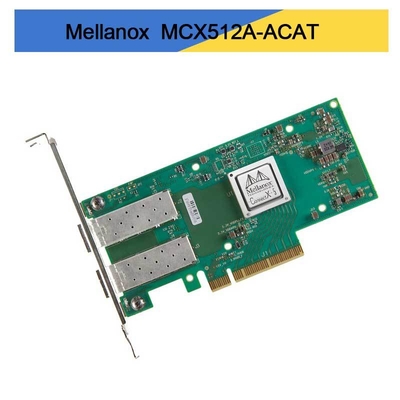

Mellanox ConnectX-5 MCX512A-ACAT Dual-Port 25GbE Network Interface Card
The Mellanox ConnectX-5 MCX512A-ACAT is a high-performance dual-port 25GbE network card designed for data-intensive environments. Supporting PCIe 3.0 x8 and flexible Ethernet speeds (1/10/25 GbE), this NIC card delivers ultra-low latency (750ns), advanced RDMA, NVMe over Fabrics offload, and hardware-accelerated virtualization. Ideal for cloud, storage, and telco applications, it maximizes throughput while minimizing CPU overhead.
Key Features
- Dual-port SFP28 connectivity supporting 1/10/25GbE speeds
- PCIe 3.0 x8 host interface with UEFI boot support
- RDMA over Converged Ethernet (RoCE) for low-latency communication
- Hardware offload for NVMe over Fabrics, OVS, VXLAN, and Geneve
- SR-IOV support with up to 512 virtual functions
Core Technologies
The ConnectX-5 network card leverages cutting-edge technologies including ASAP² for accelerated packet processing, RoCE v2 for efficient RDMA, and PCIe Atomic Operations. It supports T10-DIF for end-to-end data integrity and features an embedded PCIe switch for multi-host configurations.
How It Works
The NIC card offloads network, storage, and virtualization processing from the host CPU. Using hardware-based encapsulation/decapsulation for overlay networks and match-action flow tables, it processes traffic at line rate. RDMA capabilities enable direct memory access between systems or between GPU and storage, reducing latency and CPU usage.
Applications
- Cloud Data Centers: Virtualized infrastructure, NFV, and SDN
- High-Performance Storage: NVMe over Fabrics, iSER, SMB Direct
- Telecommunications: 5G infrastructure, vRAN, low-latency routing
- Artificial Intelligence: GPU-direct communication, distributed training
Specifications
| Attribute | Value |
|---|---|
| Model | MCX512A-ACAT |
| Ports | 2 x SFP28 |
| Speeds | 1/10/25 GbE |
| Host Interface | PCIe 3.0 x8 |
| Latency | 750 ns |
| Form Factor | Low-profile PCIe |
| Protocols | Ethernet, RoCE, NVMe-oF |
| Virtualization | SR-IOV, VF, PF |
Advantages
- Superior throughput and lower latency compared to previous-generation network card solutions
- Hardware offloading reduces CPU utilization by up to 50%
- Flexible programmability for future protocol support
- Robust interoperability with major switches and operating systems
Service & Support
We provide 24/7 technical support, worldwide shipping, and a standard manufacturer warranty. Custom configuration and bulk order discounts are available.
Frequently Asked Questions
Q: Is this NIC card compatible with VMware ESXi?
A: Yes, the MCX512A-ACAT is fully compatible with VMware ESXi and supports NetQueue and SR-IOV.
Q: What cables are supported?
A: It supports DAC, AOC, and optical modules with SFP28 interfaces.
Q: Can I use this card for NVMe over Fabrics?
A: Absolutely. The card includes hardware offload for NVMe-oF initiator and target roles.
Precautions
- Ensure proper cooling and airflow in the server chassis.
- Use qualified optical or copper cables to avoid link degradation.
- Update to the latest firmware and drivers for optimal performance.
- Verify PCIe slot compatibility (requires x8 mechanical, x8 electrical).
