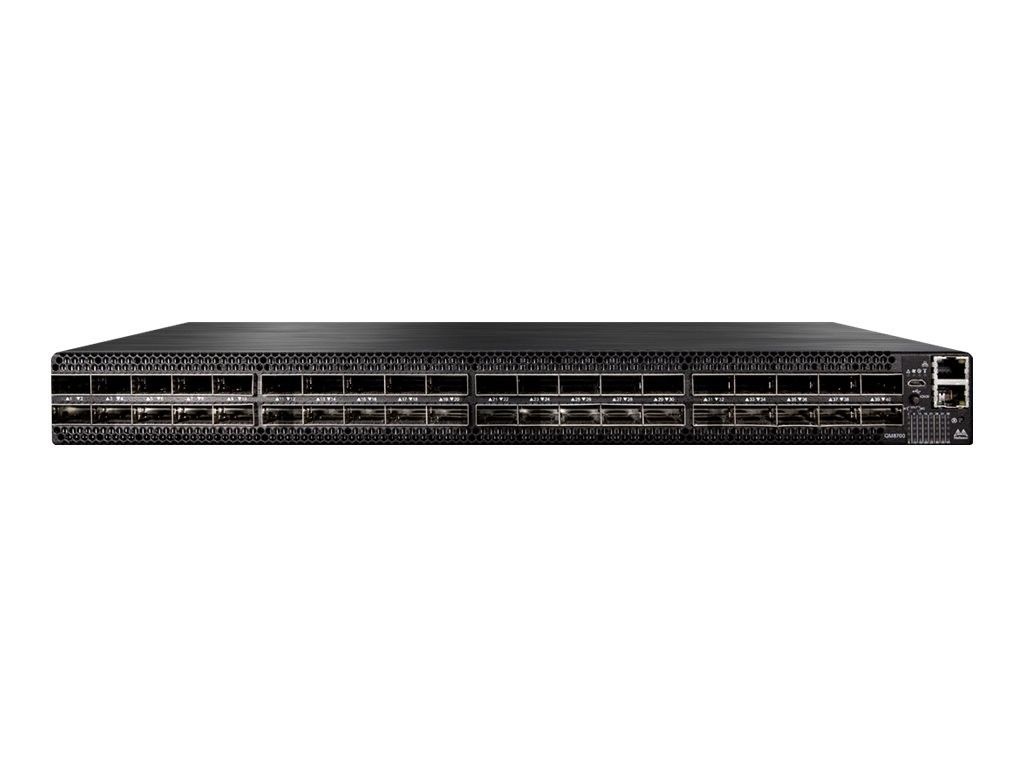

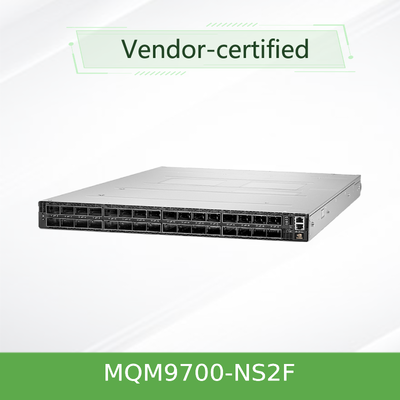

MQM9700-NS2F(920-9B210-00FN-0M0) Mellanox Infiniband network Switch Quantum 2 Based NDR
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MQM9700-NS2F(920-9B210-00FN-0M0) |
| Document: | MQM9700 series.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Application: | Server | Condition: | New And Original |
|---|---|---|---|
| Port Configuration: | 64 × 400Gb/s InfiniBand Ports | Connectivity: | 32 × OSFP Connectors |
| Form Factor: | 1RU Standard Chassis Design | Management: | CLI, WebUI, SNMP, JSON-RPC |
| Highlight: | Mellanox Infiniband Switch MQM9700-NS2F,16.8 Tbps Mellanox Infiniband Switch |
||
Product Description
NVIDIA Quantum-2 QM9700 Series 400G InfiniBand Switch
MQM9700-NS2F Key Advantages:
- 64-port 400Gb/s InfiniBand connectivity
- 51.2 Tb/s aggregate throughput capacity
- 32× AI acceleration over previous generations
- Advanced in-network computing with SHARPy3
- Multiple topology support (Fat Tree, DragonFly+, SlimFly)
MQM9700-NS2F Product Overview
The NVIDIA Quantum-2 QM9700 Series sets a new standard for high-performance networking infrastructure, delivering exceptional bandwidth and computational capabilities for next-generation data centers. This advanced 400G InfiniBand switch enables researchers and AI developers to tackle increasingly complex computational challenges with unprecedented efficiency and performance.
MQM9700-NS2F Technical Specifications
| Specification Category | Details |
|---|---|
| Port Configuration | 64 × 400Gb/s InfiniBand ports |
| Total Throughput | 51.2 Tb/s bidirectional |
| Form Factor | 1RU standard chassis design |
| Connectivity | 32 × OSFP connectors |
| Power System | 1+1 redundant hot-swappable PSUs |
| Physical Dimensions | 1.7" H × 17.0" W × 26.0" D |
| Weight | 14.5 kg (31.97 lbs) |
| Management | CLI, WebUI, SNMP, JSON-RPC |
MQM9700-NS2F Advanced Technologies
The QM9700 incorporates NVIDIA's cutting-edge technologies including Remote Direct Memory Access (RDMA), Scalable Hierarchical Aggregation and Reduction Protocol (SHARP), and intelligent adaptive routing. These innovations work together to minimize latency, maximize bandwidth utilization, and accelerate distributed AI and machine learning applications.
MQM9700-NS2F Performance Features
- SHARPy3 Technology: Delivers 32× greater AI acceleration compared to previous generations
- Adaptive Routing: Intelligent traffic management across all 64 non-blocking ports
- In-Network Computing: Offloads computational tasks from servers to network infrastructure
- Multi-Topology Support: Compatible with Fat Tree, SlimFly, and DragonFly+ architectures
- Backward Compatibility: Full support for existing InfiniBand infrastructure
Application Environments
Ideal for artificial intelligence training clusters, high-performance computing environments, scientific research facilities, and large-scale cloud data centers. The QM9700's flexibility supports diverse network architectures, making it suitable for both current and future deployment requirements.
Model Comparison
| Model Number | Management Type | Airflow Direction | Key Feature |
|---|---|---|---|
| MQM9700-NS2F | Onboard Subnet Manager | Port-to-Power | Ideal for standard deployments |
| MQM9700-NS2R | Onboard Subnet Manager | Power-to-Port | Reverse airflow configuration |
| MQM9790-NS2F | External Management | Port-to-Power | UFM software compatible |
| MQM9790-NS2R | External Management | Power-to-Port | Advanced management capabilities |
Frequently Asked Questions
Q: What are the environmental operating specifications?
A: Operating temperature: 0°C to 35°C (forward airflow) or 0°C to 40°C (reverse airflow). Humidity: 10% to 85% non-condensing.
Q: Does the QM9700 support existing InfiniBand infrastructure?
A: Yes, it maintains full backward compatibility with previous InfiniBand generations and supports both copper and optical cabling solutions.
Q: What management options are available?
A: The switch supports comprehensive management through CLI, WebUI, SNMP, and JSON-RPC interfaces, with optional NVIDIA UFM software for advanced features.
Operational Guidelines
- Maintain operating temperature within specified ranges
- Use only certified optical transceivers and cabling solutions
- Adhere to all applicable EMC and safety regulations
- Implement regular firmware updates for optimal performance
- Ensure proper airflow management in data center environment
