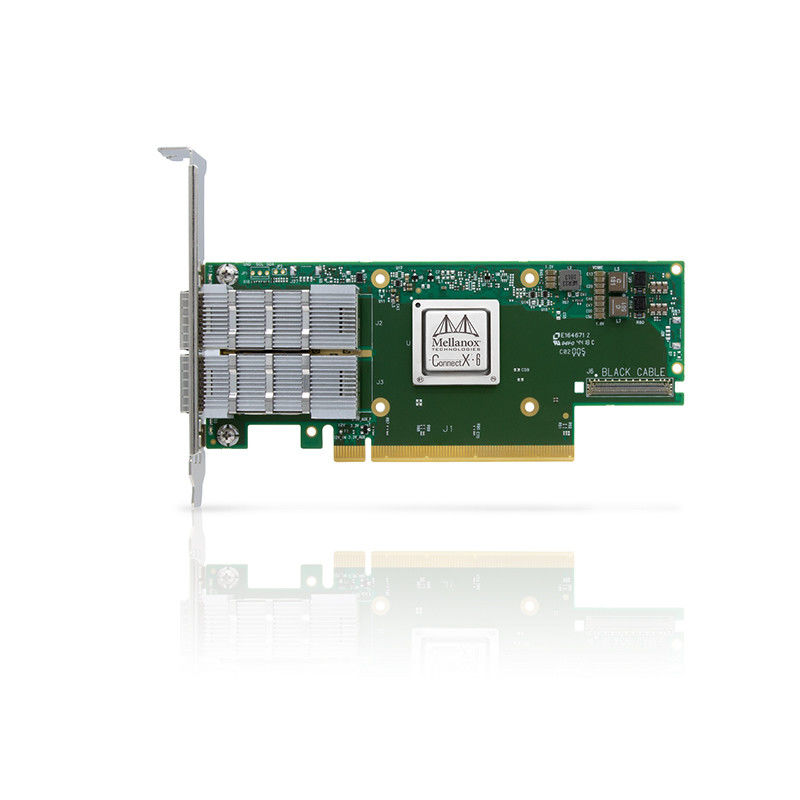

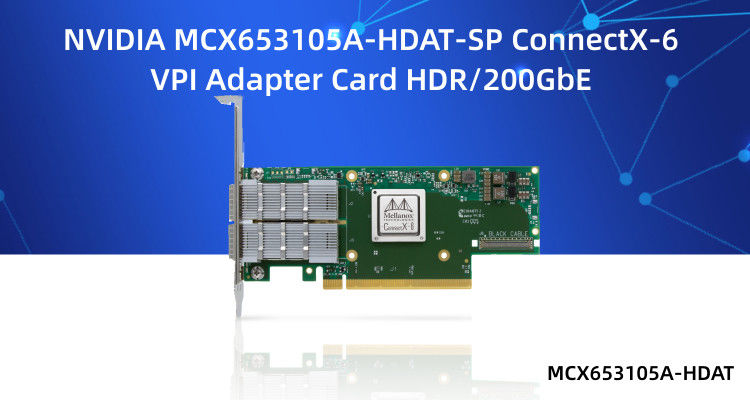

MCX653105A-HDAT-SP Mellanox Card ConnectX®-6 InfiniBand / VPI Adapter HDR IB 200Gb/S 200GbE

MCX653105A-HDAT-SP Mellanox Card ConnectX®-6 InfiniBand / VPI Adapter HDR IB 200Gb/S 200GbE

MCX653105A HDAT SP Mellanox Card

QSFP56 Mellanox Card

Brand Name:


Model Number:



Request A Quote
Product Details
Products Status:
New And Original
Max Speed:
Up To 200 Gb/s
Ethernet Connector:
Mellanox Network Card MCX653105A-HDAT ConnectX®-6 InfiniBand/VPI Adapter Card HDR IB (200Gb/s) And 200GbE
Product Description

Mellanox Network Card MCX653105A-HDAT ConnectX®-6 InfiniBand/VPI Adapter Card HDR IB (200Gb/s) and 200GbE

MCX653105A-HDAT-SP Mellanox Network card Product Description

The world’s first 200Gb/s HDR InfiniBand and Ethernet network adapter card, offering industry-leading performance, smart offloads and In-Network Computing, leading to the highest return on investment for High-Performance Computing, Cloud, Web 2.0, Storage and Machine Learning applications.

ConnectX-6 Virtual Protocol Interconnect (VPI) cards are a groundbreaking addition to the NVIDIA ConnectX series of industry-leading adapter cards. Providing two ports of 200Gb/s for InfiniBand and Ethernet connectivity, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI cards enable the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications. In addition to all the existing innovative features of past versions, ConnectX-6 cards offer a number of enhancements to further improve performance and scalability. ConnectX-6 VPI cards supports HDR, HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 200, 100, 50, 40, 25, and 10 Gb/s Ethernet speeds.

Over the past decade, NVIDIA has consistently driven HPC performance to new record heights. With the introduction of the ConnectX-6 adapter card, NVIDIA continues to pave the way with new features and unprecedented performance for the HPC market.

MCX653105A-HDAT-SP Mellanox Network card Parameter form





Host Interface

PCIe Gen 4.0 x16

Network Protocol Offload


Data Acceleration and Offloading


Intelligent Network Processing

Packet pacing, congestion control, network virtualization, and more

Security Features

Secure Boot, Root of Trust, Crypto Acceleration

Operating Systems

Windows, Linux, VMware

Power Consumption

21 Watts


6.6 cm x 16.77 cm

Max Speed HDR and 200GbE
Connector Type QSFP56
Ports Single



  • Up to 200Gb/s connectivity per port
  • Max bandwidth of 200Gb/s
  • Up to 215 million messages/sec
  • Sub 0.6usec latency
  • Block-level XTS-AES mode hardware encryption
  • FIPS capable
  • Advanced storage capabilities including block-level encryption and checksum offloads
  • Supports both 50G SerDes (PAM4) and 25G SerDes (NRZ) based ports
  • Best-in-class packet pacing with sub-nanosecond accuracy
  • PCIe Gen 3.0 and Gen 4.0 support
  • RoHS compliant
  • ODCC compatible


  • Industry-leading throughput, low CPU utilization and high message rate
  • Highest performance and most intelligent fabric for compute and storage infrastructures
  • Cutting-edge performance in virtualized networks including Network Function Virtualization (NFV)
  • Host Chaining technology for economical rack design
  • Smart interconnect for x86, Power, Arm, GPU and FPGA-based compute and storage platforms
  • Flexible programmable pipeline for new network flows
  • Efficient service chaining enablement
  • Increased I/O consolidation efficiencies, reducing data center costs & complexity


MCX653105A-HDAT-SP Mellanox Card ConnectX®-6 InfiniBand / VPI Adapter HDR IB 200Gb/S 200GbE 0

MCX653105A-HDAT-SP Mellanox Card ConnectX®-6 InfiniBand / VPI Adapter HDR IB 200Gb/S 200GbE 1
MCX653105A-HDAT-SP Mellanox Card ConnectX®-6 InfiniBand / VPI Adapter HDR IB 200Gb/S 200GbE 2
