Stock Mellanox MCX556A-EDAT ConnectX-5 VPI Adapter Card EDR IB 100Gb/S 100GbE Dual Port
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCX556A-EDAT |
| Document: | CONNECTX-5 infiniband.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Products Status: | Stock | Application: | Server |
|---|---|---|---|
| Interface Type:: | InfiniBand | Ports: | Dual |
| Max Speed: | 100GbE | Connector Type: | QSFP28 |
| Type: | Wired | Condition: | New And Original |
| Warranty Time: | 1 Year | Model: | MCX556A-EDAT |
| Name: | MCX556A-EDAT ConnectX-5 VPI Adapter Card EDR IB (100Gb/s) And 100GbE Dual-port Mellanox Network Card | Keywords: | Mellanox Network Card |
| Highlight: | 100GbE Mellanox Mcx556a Edat,QSFP28 Mellanox Mcx556a Edat,MCX556A-EDAT 100gbe Network Card |
||
Product Description

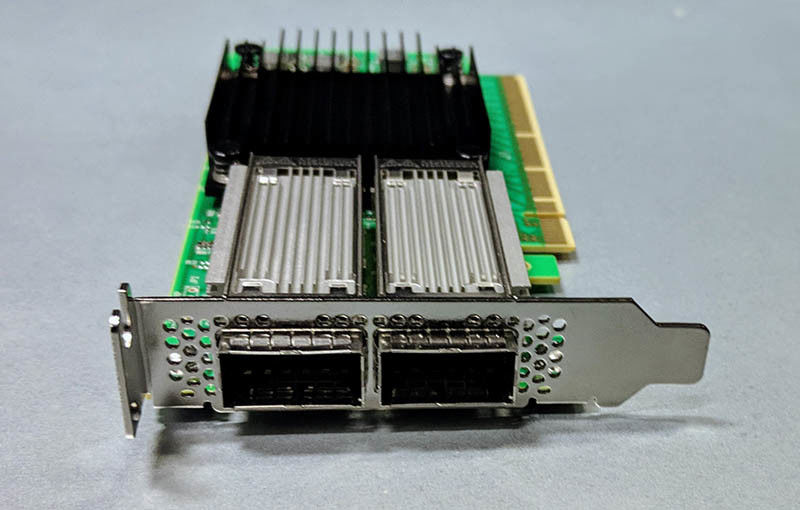

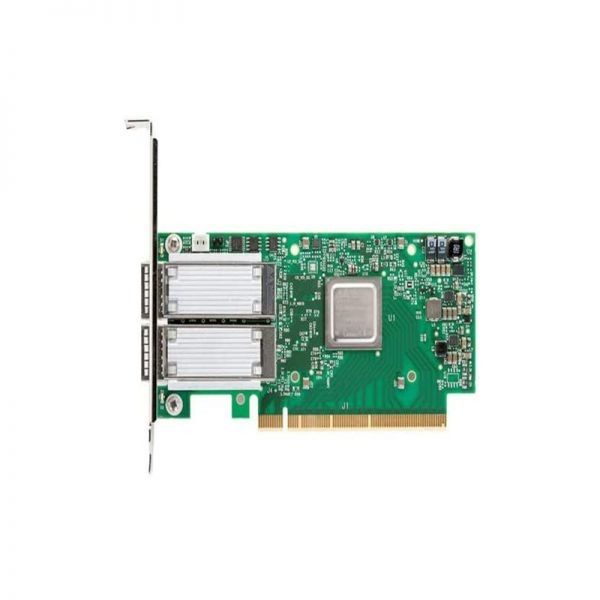

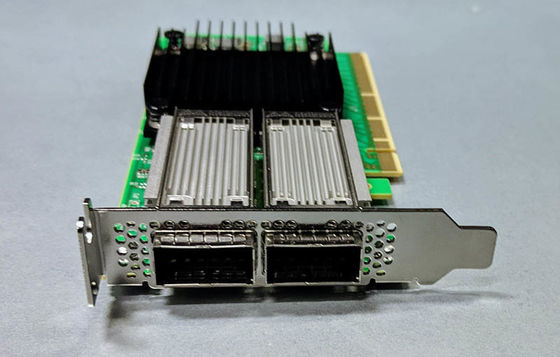

NVIDIA Mellanox ConnectX-5 MCX556A-EDAT Dual-Port 100GbE/InfiniBand Network Card
The NVIDIA Mellanox ConnectX-5 MCX556A-EDAT is a high-performance dual-port network card supporting both 100Gb/s InfiniBand and Ethernet connectivity. Designed for PCIe Gen4 servers, this NIC card delivers ultra-low latency, high message rates, and advanced hardware offloads for compute and storage applications.
Key Features
- Dual-port 100Gb/s InfiniBand or Ethernet connectivity
- PCI Express 4.0 x16 host interface
- Hardware offloads for NVMe over Fabrics, MPI, and RDMA
- Support for RoCE (RDMA over Converged Ethernet)
- Enhanced performance with ConnectX-5 Ex technology
Technology Overview
The ConnectX-5 network card leverages cutting-edge technologies including RDMA, PCIe Atomic operations, and hardware-based congestion control. It supports NVMe-oF target offloading, T10 DIF, and storage protocols like SRP and iSER. This NIC card is also compatible with overlay networks such as VXLAN and GENEVE.
How It Works
The ConnectX-5 adapter uses embedded intelligence to offload network, storage, and compute operations from the CPU. It enables direct memory access (RDMA) between servers and storage devices, reducing latency and CPU overhead. The card supports adaptive routing and out-of-order packet delivery for optimized performance in complex topologies.
Applications
- High-Performance Computing (HPC) clusters
- Artificial Intelligence and Machine Learning infrastructure
- Cloud data centers and hyperscale environments
- NVMe over Fabrics (NVMe-oF) storage arrays
- Virtualized and software-defined data centers
Specifications
| Attribute | Value |
|---|---|
| Model | MCX556A-EDAT |
| Ports | 2 x QSFP28 |
| Speeds | 100Gb/s InfiniBand or Ethernet |
| Host Interface | PCIe 4.0 x16 |
| Form Factor | HHHL (Half Height Half Length) |
| Protocols | InfiniBand, Ethernet, RoCE, NVMe-oF |
| OS Support | Linux, Windows, VMware, FreeBSD |
Advantages
- Lower latency and higher bandwidth compared to previous generations
- Advanced offloads reduce CPU utilization and improve efficiency
- Flexible support for both InfiniBand and Ethernet networks
- Ideal for AI, HPC, and storage-intensive workloads
Service & Support
We offer comprehensive support including warranty coverage, technical consultation, and integration services. Our team provides 24/7 customer service and ensures timely delivery and accurate order fulfillment.
Frequently Asked Questions
Q: Is this card compatible with PCIe Gen3 slots?
A: Yes, the ConnectX-5 MCX556A-EDAT is backward compatible with PCIe Gen3.
Q: Does it support NVMe over Fabrics?
A: Yes, it includes hardware offloads for NVMe-oF target operations.
Q: What cables are required for 100GbE operation?
A: QSFP28 DAC or optical transceivers and fiber cables are supported.
Precautions
- Ensure proper cooling and airflow in the server chassis.
- Use certified cables and transceivers for optimal performance.
- Verify driver and firmware compatibility with your operating system.
- Follow ESD safety procedures during installation.
