MQM8790-HS2F(920-9B110-00FH-0D0) Mellanox Infiniband network Switch 40 QSFP56 Ports HDR 2 Power Supplies P2C Airflow

Product Details:

Brand Name: Mellanox
Model Number: MQM8790-HS2F(920-9B110-00FH-0D0)
Document: MQM8700 series.pdf

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: outer box
Payment Terms: T/T
Supply Ability: Supply by project/batch
Get Best Price Contact Now

Detail Information

Model: MQM8790-HS2F(920-9B110-00FH-0D0) Application: Server
Condition: New And Original Uplink Connectivity: 200 Gbps
Operating Temperature: 0°C To 40°C (32°F To 104°F) Description: 40-port 200G InfiniBand Switch, Dual Power Supplies
Highlight:

MQM8790-HS2F mellanox infiniband switch

,

200Gb/s mellanox infiniband switch

,

MQM8790-HS2F mellanox network switch

Product Description

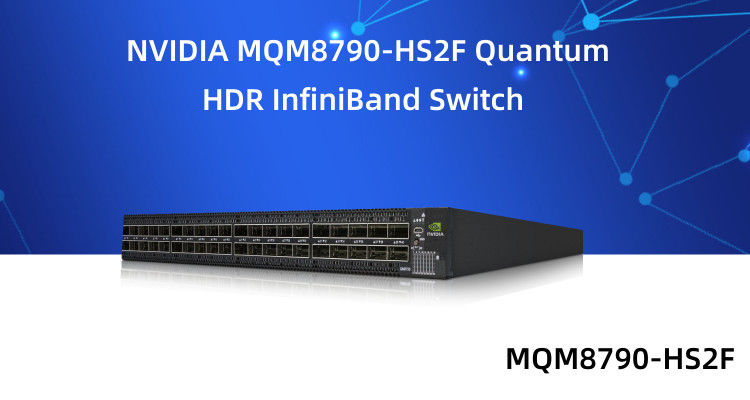

NVIDIA Quantum MQM8790-HS2F 200G InfiniBand Switch

Next-Generation Performance for AI, HPC, and Cloud Data Centers

MQM8790-HS2F Product Overview

The NVIDIA Quantum QM8790 sets a new standard for high-performance data center switching, delivering breakthrough 200Gb/s InfiniBand technology for the most demanding computational workloads. This advanced network switch combines exceptional bandwidth, ultra-low latency, and innovative in-network computing capabilities that accelerate AI training, HPC simulations, and cloud infrastructure. With flexible configuration options and comprehensive management features, the QM8790 provides a future-proof foundation for modern data center architectures.

MQM8790-HS2F Quick Specs

  • 40×200Gb/s ports
  • 16 Tb/s switching capacity
  • NVIDIA SHARP™ technology
  • 1U form factor
  • Dual hot-swappable PSUs

MQM8790-HS2F Technical Specifications

Category Details
Port Configuration 40 × 200Gb/s OSFP56 ports (configurable as 80 × 100Gb/s)
Switching Capacity 16 Tb/s non-blocking bandwidth
Protocol Support InfiniBand NDR (200G), backward compatible with EDR/HDR
Power Supply Dual, hot-swappable, 80 PLUS Gold (100-240VAC)
Management CLI, WebUI, SNMP, JSON, NVIDIA UFM® compatible
Dimensions 1U, 43.6mm × 433.2mm × 590.6mm (H×W×D)
Operating Temperature 0°C to 40°C (32°F to 104°F)

Core Features

  • High-Density Design: 40 non-blocking 200Gb/s ports in 1U form factor
  • In-Network Computing: NVIDIA SHARP™ technology for accelerated collective operations
  • Flexible Deployment: Port splitting enables 200G to 2×100G configuration
  • Advanced Management: Comprehensive control via NVIDIA UFM® platform
  • Energy Efficient: 80 PLUS Gold certified power supplies reduce operational costs
  • High Availability: Hot-swappable, redundant power supplies

Target Applications

  • Artificial Intelligence: Large-scale ML training clusters
  • High-Performance Computing: Scientific research and simulation
  • Cloud Infrastructure: Hyperscale data center deployments
  • Storage Networks: High-speed SAN and data-intensive applications
  • Financial Services: High-frequency trading systems
  • Research Institutions: Academic supercomputing facilities

MQM8790-HS2F Technical Innovation

The NVIDIA Quantum QM8790 represents a significant advancement in data center switching technology, incorporating NVIDIA's groundbreaking Scalable Hierarchical Aggregation and Reduction Protocol (SHARP). This innovative approach enables in-network computation that dramatically accelerates collective communications while reducing latency and CPU overhead. The network switch processes data as it traverses the network, eliminating the need for multiple data transfers between endpoints. Supporting various network topologies including Fat Tree, DragonFly+, and multi-dimensional Torus, this network card technology provides exceptional flexibility for diverse deployment scenarios. The QM8790 is engineered to maximize performance for HPC, AI, and cloud applications through intelligent adaptive routing and congestion control mechanisms.

Product Models

Model Number Description Airflow Direction
MQM8790-HS2F 40-port 200G InfiniBand switch, dual power supplies Port-to-Cooling
MQM8790-HS2R 40-port 200G InfiniBand switch, dual power supplies Cooling-to-Port

Frequently Asked Questions

Q: How does the QM8790 compare to traditional Ethernet switches for AI workloads?

A: The QM8790 offers significantly lower latency and higher bandwidth utilization through its InfiniBand architecture and SHARP technology, making it ideal for AI and machine learning applications that require intensive node-to-node communication.

Q: Can I use existing 100G infrastructure with this 200G network switch?

A: Yes, the QM8790 maintains backward compatibility with previous InfiniBand generations and can split 200G ports into two 100G connections for flexible migration strategies.

Q: What management options are available for this network switch?

A: The switch supports comprehensive management through command-line interface (CLI), web-based interface (WebUI), SNMP, and JSON-RPC API, plus integration with NVIDIA's UFM® platform for advanced fabric management.

Q: What type of cabling is required for 200Gb/s connections?

A: The switch supports OSFP56 connectors with passive or active copper cables, active optical cables, or optical transceivers for maximum flexibility in different deployment scenarios.

Support & Services

Warranty & Support

  • 1-year manufacturer warranty
  • 24/7 technical support
  • Advanced replacement service
  • Regular firmware updates

Professional Services

  • Installation assistance
  • Configuration consulting
  • Integration support
  • Custom training programs
