100g MCX653105A-EFAT Mellanox Network Card ConnectX-6 VPI Adapter For Server
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCX653105A-EFAT |
| Document: | connectx-6-infiniband.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Products Status: | Stock | Application: | Server |
|---|---|---|---|
| Interface Type:: | InfiniBand | Ports: | Dual |
| Max Speed: | 100GbE | Type: | Wired |
| Condition: | New And Original | Warranty Time: | 1 Year |
| Model: | MCX653105A-EFAT | Name: | MCX653105A-EFAT Mellanox Network Card ConnectX-6 VPI Adapter |
| Keyword: | Mellanox Network Card | ||
| Highlight: | MCX653105A-EFAT mellanox network card,Server 100g mellanox network card,MCX653105A-EFAT mellanox nic card |
||
Product Description

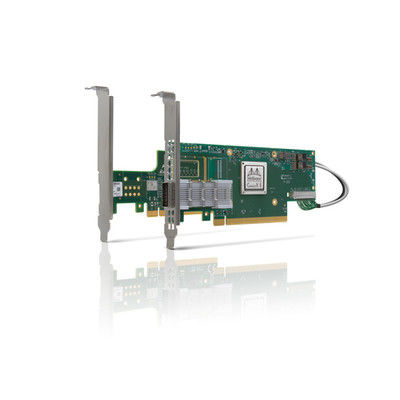

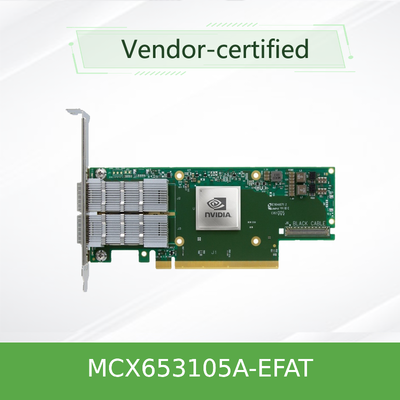

NVIDIA ConnectX-6 InfiniBand Adapter MCX653105A-EFAT
Product Overview
The NVIDIA ConnectX-6 InfiniBand adapter, model MCX653105A-EFAT, is a high-performance dual-port network card designed for data-intensive environments. It delivers up to 200Gb/s per port with ultra-low latency and advanced offload capabilities, making it ideal for HPC, AI, machine learning, and cloud infrastructures. This InfiniBand adapter supports both InfiniBand and Ethernet protocols, providing flexibility and scalability for modern data centers.
Key Features
- Up to 200Gb/s per port bandwidth
- Ultra-low latency and high message rate
- Hardware offloads for RDMA, NVMe over Fabrics, and encryption
- Support for InfiniBand and Ethernet protocols
- RoCE (RDMA over Converged Ethernet) support
- PCIe Gen 3.0/4.0 compatibility
Core Technologies
The ConnectX-6 leverages cutting-edge technologies including In-Network Computing, RDMA, and hardware-based encryption. It complies with IBTA 1.3 standards and supports PCIe Atomic Operations, T10-DIF, and NVMe over Fabrics offloads. The adapter also features NVIDIA Socket Direct technology for optimized multi-socket server performance.
How It Works
The NIC card uses remote direct memory access (RDMA) to enable direct data transfer between servers and storage, bypassing the CPU to reduce latency and free up processing resources. It also offloads encryption, tunneling, and storage protocols directly in hardware, improving efficiency and scalability.
Applications
- High-Performance Computing (HPC) clusters
- Artificial Intelligence and Machine Learning training
- Hyperscale cloud data centers
- Big Data analytics and storage networks
- Virtualized and NFV environments
Specifications
| Attribute | Value |
|---|---|
| Model | MCX653105A-EFAT |
| Ports | 2x QSFP56 |
| Speed | Up to 200Gb/s per port |
| Host Interface | PCIe Gen 3.0/4.0 x16 |
| Protocols | InfiniBand, Ethernet |
| Encryption | XTS-AES 256/512-bit |
| Form Factor | Low-profile PCIe |
Advantages
- Superior throughput and lower latency compared to previous generations
- Hardware offloads reduce CPU overhead and increase system efficiency
- Support for both InfiniBand and Ethernet provides deployment flexibility
- Enhanced security with block-level encryption
- Ideal for GPU-direct and storage acceleration
Service & Support
We offer 24/7 technical support, worldwide shipping, and a standard manufacturer warranty. Custom configuration and integration services are available for large-scale deployments.
Frequently Asked Questions
Q: What systems are compatible with the ConnectX-6 adapter?
A: It is compatible with most servers supporting PCIe Gen3 or Gen4 slots, and major operating systems including Linux, Windows, and VMware.
Q: Does this network card support RoCE?
A: Yes, it fully supports RDMA over Converged Ethernet (RoCE).
Q: Can I use this card in an Ethernet-only environment?
A: Absolutely. The ConnectX-6 dual-port NIC card supports both InfiniBand and Ethernet modes.
Precautions
- Ensure proper cooling in high-density deployments
- Verify PCIe slot generation and lane width compatibility
- Use qualified optical or DAC cables for best performance
- Update to latest firmware and drivers for full feature support
