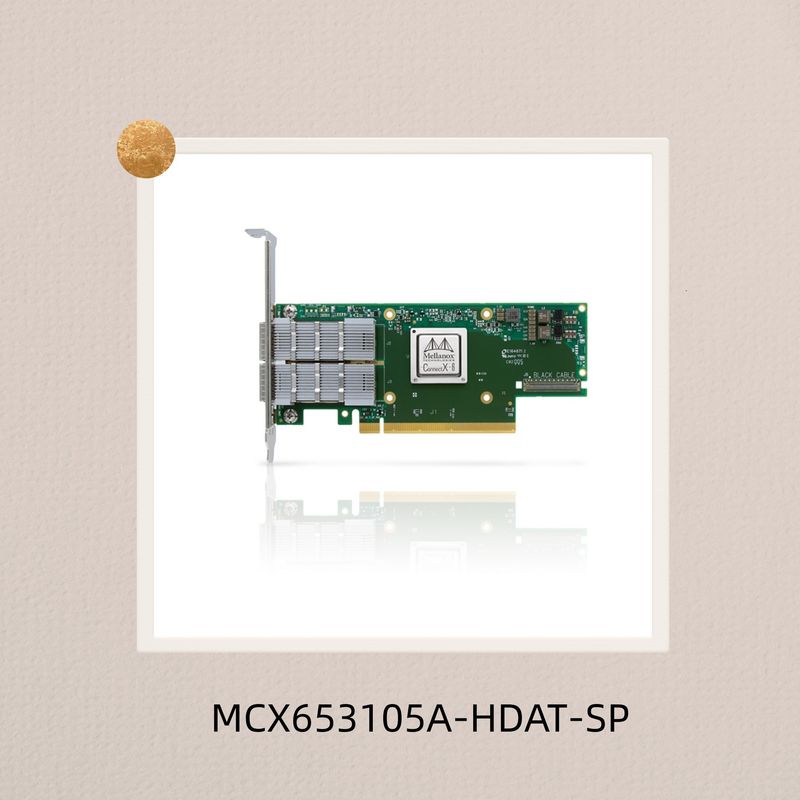

Mellanox MCX653105A-HDAT-SP Secure Boot Root Of Trust Crypto Acceleration For Server
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCX653105A-HDAT-SP |
| Document: | connectx-6-infiniband.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Products Status: | Stock | Application: | Server |
|---|---|---|---|
| Condition: | New And Original | Type: | Wired |
| Max Speed: | Up To 200 Gb/s | Ethernet Connector: | QSFP56 |
| Model: | MCX653105A-HDAT-SP | Name: | Mellanox MCX653105A-HDAT-SP Secure Boot Root Of Trust Crypto Acceleration For Server |
| Highlight: | MCX653105A-HDAT-SP secure boot root of trust,Mellanox secure boot root of trust,MCX653105A-HDAT-SP root of trust secure boot |
||
Product Description

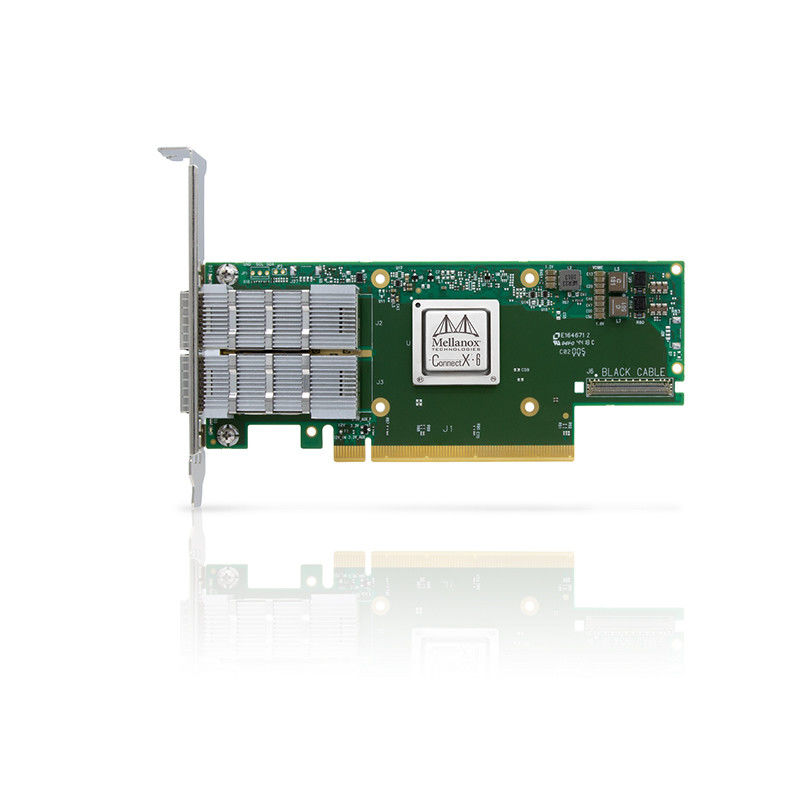

NVIDIA ConnectX-6 MCX653105A-HDAT 200Gb/s InfiniBand Network Card
Next-Generation High-Performance Network Card
The NVIDIA ConnectX-6 MCX653105A-HDAT represents the pinnacle of networking technology, delivering unprecedented 200Gb/s throughput with advanced in-network computing capabilities. This high-performance network card is engineered for the most demanding HPC, AI, and cloud data center environments.
Key Features
Ultra-High Speed
200Gb/s per port bandwidth with extremely low latency and high message rate
Advanced Offloads
Hardware offloads for RDMA, encryption, and in-network computing
Enhanced Security
Block-level AES-XTS encryption with FIPS compliance
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | MCX653105A-HDAT |
| Data Rate | Up to 200Gb/s per port |
| Interface | PCIe Gen 3.0/4.0 x16 |
| Ports | Dual QSFP56 |
| Protocols | InfiniBand, Ethernet |
| Message Rate | Up to 215 million messages/sec |
| Encryption | Hardware XTS-AES 256/512-bit |
Applications
HPC Clusters
High-performance computing environments
AI & Machine Learning
Deep neural network training
Cloud Data Centers
Hyperscale cloud infrastructure
Storage Networks
NVMe over Fabrics implementations
Technical Advantages
- In-network computing technology offloads operations from CPU to the nic card
- Hardware-based encryption with zero performance penalty
- Support for both InfiniBand and Ethernet protocols on the same hardware
- NVIDIA Socket Direct technology for optimized multi-socket server performance
- Advanced RoCE (RDMA over Converged Ethernet) implementation
- Comprehensive virtualization support with SR-IOV
Frequently Asked Questions
What systems are compatible with this network card?
The ConnectX-6 adapter supports x86, Power, and Arm-based servers with PCIe Gen 3.0 or 4.0 slots. It is compatible with most major Linux distributions, Windows Server, and VMware environments.
Does this model support both InfiniBand and Ethernet?
Yes, the MCX653105A-HDAT model supports both InfiniBand and Ethernet protocols, providing flexibility in network architecture design.
What kind of cables are required for 200Gb/s operation?
For 200Gb/s operation, you will need QSFP56 DAC cables or appropriate optical transceivers and fiber cables rated for 200Gb/s data rates.
Is this network card suitable for AI workloads?
Absolutely. The ConnectX-6 nic card is specifically designed for AI and machine learning workloads, providing the high throughput and low latency required for distributed training tasks.
