MSB7890-ES2F Mellanox Ethernet Switches 48 SFP+ Ports Management Software Powerful Flexible
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MSB7890-ES2F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T,XTransfer,Western Union,MoneyGram |
|
Detail Information |
|||
| Products Status: | Stock | Application: | Server |
|---|---|---|---|
| Condition: | New And Original | Warranty: | 1 Year |
| Switching Capacity: | 2.6 Tbps | Uplink Connectivity: | 200 Gbps |
| Highlight: | MSB7890-ES2F Mellanox Ethernet Switches,Infiniband Mellanox Ethernet Switches,MSB7890-ES2F Mellanox Infiniband Switch |
||
Product Description

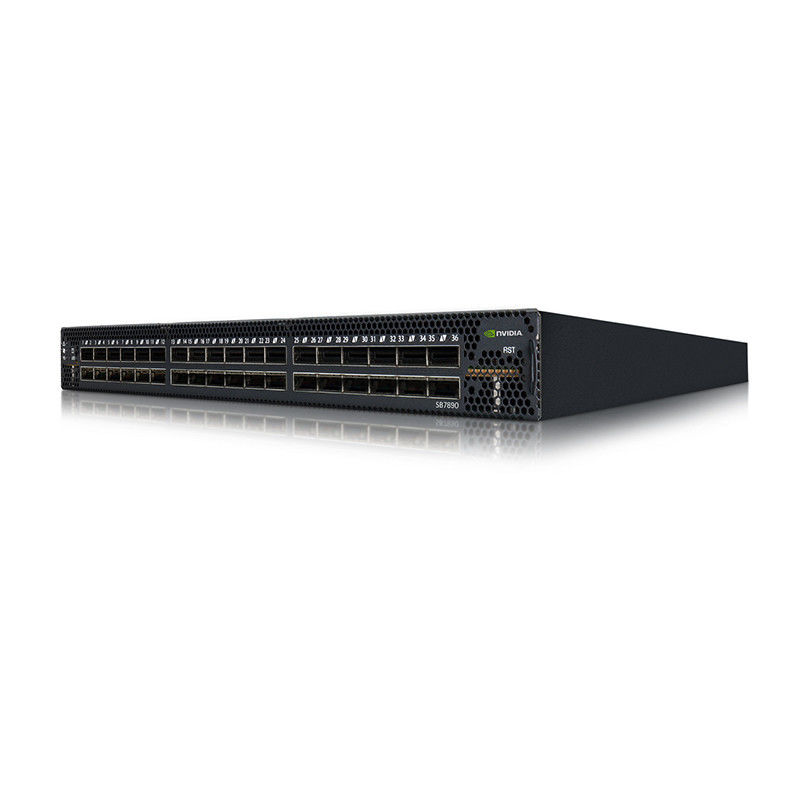

Mellanox SB7890 EDR InfiniBand Smart Switch
Key Advantages:
- ✓ 36-port EDR 100Gb/s non-blocking architecture with 7.2Tb/s throughput
- ✓ World's first smart switch with SHARP™ in-network computing technology
- ✓ Ultra-low 90ns latency for high-performance computing environments
- ✓ Advanced features including adaptive routing and congestion control
- ✓ Energy-efficient design with only 122W typical power consumption
Product Overview
The Mellanox SB7890 represents a breakthrough in network switch technology, delivering exceptional performance for data-intensive applications. This 36-port EDR InfiniBand switch system provides 100Gb/s per port bandwidth with a non-blocking architecture that ensures consistent performance across all connections. As a cutting-edge network card and switching solution, it incorporates innovative SHARP technology that enables computation within the network fabric itself, significantly accelerating collective operations and reducing server overhead.
Technical Specifications
| Specification | Details |
|---|---|
| Port Configuration | 36 x QSFP28 (100Gb/s EDR) |
| Switching Capacity | 7.2 Tb/s |
| Latency | 90 nanoseconds |
| Power Consumption | 122W (typical with passive cables) |
| Form Factor | 1U rack mount |
| Virtual Lanes | 8 data + 1 management |
| MTU Support | 256B to 4KB |
| Cooling Options | Front-to-rear or rear-to-front |
Advanced Technology
The SB7890 network switch incorporates Mellanox's Switch-IB® 2 technology, compliant with IBTA 1.2/1.3 standards. Its revolutionary approach to network card and switching architecture includes Co-Design SHARP (Scalable Hierarchical Aggregation and Reduction Protocol) technology, which enables the switch to perform collective operations in hardware. This innovative approach processes data as it traverses the network, eliminating the need for multiple data transmissions between endpoints and dramatically reducing both network traffic and CPU utilization.
Performance Features
- Adaptive Routing: Dynamically selects optimal paths to avoid congestion and maximize throughput
- Congestion Control: Implements advanced mechanisms to prevent performance degradation during traffic spikes
- VL Mapping: Supports virtual lane configuration for quality of service and traffic prioritization
- Hot-Swappable Components: Redundant power supplies and fan modules support continuous operation
- Backward Compatibility: Fully compatible with FDR, QDR, and DDR InfiniBand technologies
Deployment Applications
This high-performance network switch is ideally suited for:
- High-performance computing clusters and supercomputing environments
- Artificial intelligence and machine learning infrastructure
- Large-scale data analytics and big data processing
- Financial trading systems requiring ultra-low latency
- Cloud data centers and enterprise storage networks
- Research and scientific computing applications
Frequently Asked Questions
What makes the SB7890 a "smart" switch?
The SB7890 incorporates SHARP technology that enables it to perform computational tasks directly within the network fabric, offloading these operations from server resources and significantly accelerating collective communications.
What types of cables are compatible with this switch?
The switch supports both passive copper cables and active optical cables through its QSFP28 ports, providing flexibility for various deployment scenarios and distance requirements.
How does this switch improve MPI performance?
By processing reduction operations in the network fabric, the switch can complete collective operations in less than 3 microseconds for a fully-populated three-level fat-tree topology, dramatically improving MPI performance.
What redundancy features are included?

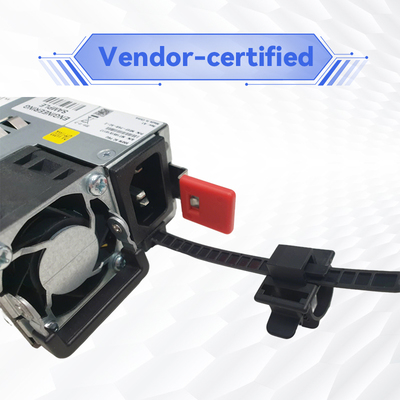

The switch includes 1+1 redundant hot-swappable power supplies and N+1 redundant hot-swappable fans, ensuring continuous operation even during component failures.
Operational Considerations
- Maintain operating temperature between 0°C and 45°C for optimal performance
- Ensure adequate airflow based on your selected cooling configuration (front-to-rear or rear-to-front)
- Verify compatibility of optical transceivers and cables for guaranteed performance
- The switch complies with major safety and EMC standards including CE, FCC, cTUVus, and RoHS
- Maximum operating altitude: 3,200 meters
