QSFP56 Mellanox Ethernet Adapters NIC ConnectX-6 Dx EN 100GbE Network Card MCX623106AN-CDAT
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCX623106AN-CDAT |
| Document: | connectx-6-lx-en-card.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | carton |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Products Status: | Stock | Condition: | New And Original |
|---|---|---|---|
| Warranty Time: | 1 Year | Technology: | Ethernet |
| Network Interface: | Two SerDes Lanes Supporting 25Gb/s Per Lane, For Various Port Configurations: -2x 10/25 GbE -1x 50GbE | Speed: | 25Gbps |
| Interface: | QSFP56 | Link Rate: | 16.0 GT/s |
| Highlight: | QSFP56 mellanox ethernet adapters,mellanox ethernet adapters NIC,100gbe network card NIC |
||
Product Description

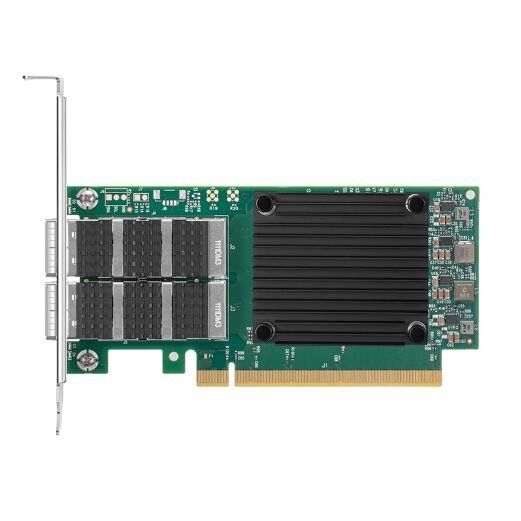

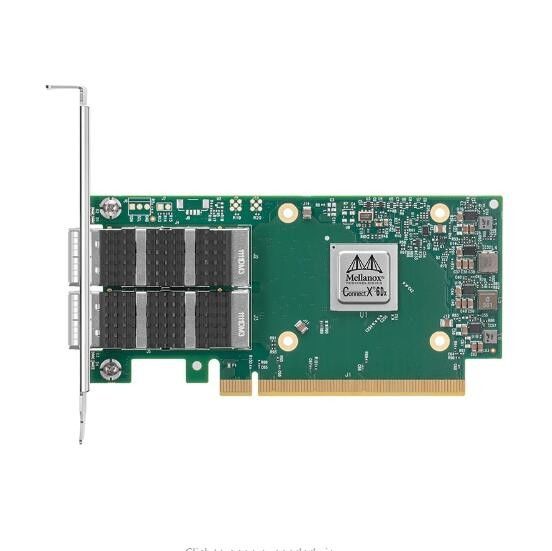

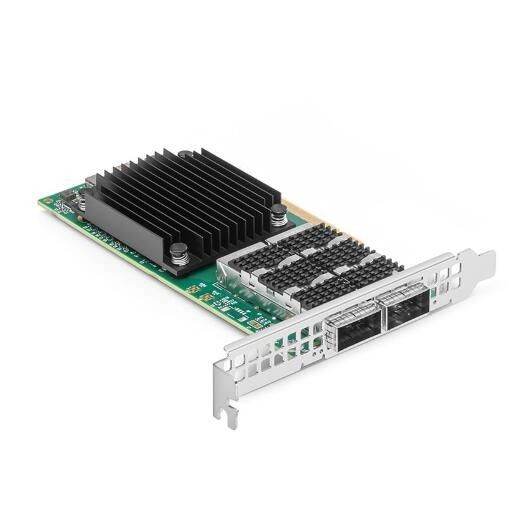

NVIDIA ConnectX-6 Lx EN SmartNIC MCX623106AN-CDAT
MCX623106AN-CDAT Product Overview
The NVIDIA ConnectX-6 Lx EN SmartNIC MCX623106AN-CDAT delivers intelligent, accelerated networking for modern enterprise data centers, offering exceptional value for 25GbE deployments. This advanced network card combines high performance, robust security features, and sophisticated acceleration capabilities in a cost-effective solution ideal for cloud and enterprise environments.
MCX623106AN-CDAT Key Characteristics
- Dual-port 25GbE or single-port 50GbE configuration options
- PCI Express Gen4 x8 host interface with backward compatibility
- Zero-Touch RoCE for simplified RDMA over Ethernet deployments
- Hardware-accelerated IPsec encryption and decryption
- ASAP² technology for SDN and NFV acceleration
- Hardware root-of-trust for enhanced security
Core Technologies
The ConnectX-6 Lx incorporates NVIDIA's innovative ASAP² (Accelerated Switch and Packet Processing) technology that offloads software-defined networking data plane operations to the nic card. It features industry-leading RoCE (RDMA over Converged Ethernet) implementation with Zero-Touch RoCE capability, eliminating the need for complex network configuration. The card also provides hardware acceleration for IPsec cryptography with AES-XTS 256/512-bit key support.
MCX623106AN-CDAT Operational Framework
This SmartNIC operates by offloading network processing tasks from the host CPU, handling packet processing, encryption, and traffic management directly on the card. Through its RDMA capabilities, it enables direct memory access between systems without CPU involvement, significantly reducing latency. The ASAP² engine processes overlay network encapsulations including VXLAN, GENEVE, and NVGRE at line rate, while the connection tracking hardware accelerates layer 4 firewall performance.
Deployment Scenarios
- Enterprise data center networking and cloud infrastructure
- Virtualized environments and containerized applications
- Network function virtualization (NFV) implementations
- Storage area networks with RDMA requirements
- Secure communications with IPsec encryption
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | MCX623106AN-CDAT |
| Total Bandwidth | 50 Gb/s |
| Host Interface | PCIe Gen4 x8 |
| Port Configuration | 2x SFP28 (25GbE) or 1x QSFP28 (50GbE) |
| Form Factor | Low-profile PCIe bracket included |
| Security Features | IPsec acceleration, Hardware root-of-trust |
| Packet Rate | 75 million packets per second |
| Management | NC-SI, MCTP over SMBus/PCIe |
Competitive Advantages
The ConnectX-6 Lx SmartNIC offers significant advantages over conventional network adapters, including 75 Mpps message rate performance, Zero-Touch RoCE for simplified deployment, and comprehensive security features with hardware root-of-trust. Compared to previous generations, this ConnectX-6 model provides enhanced power efficiency and improved total cost of ownership for 25GbE deployments.
Service & Support
We provide comprehensive support including a 3-year manufacturer warranty, global shipping with real-time tracking, and 24/7 technical consultation. Our services include custom configuration assistance, integration support, and on-site replacement options. With over $10 million in inventory, we ensure prompt delivery and reliable supply chain continuity for all your networking needs.
Frequently Asked Questions
Q: What makes this SmartNIC different from standard network adapters?
A: This SmartNIC includes hardware acceleration for networking functions, security encryption, and SDN offloading, significantly reducing CPU overhead compared to standard adapters.
Q: Does this model support both 25GbE and 50GbE configurations?
A: Yes, the card supports two ports of 25GbE or one port of 50GbE through different hardware configurations.
Q: What is Zero-Touch RoCE and how does it benefit deployment?
A: Zero-Touch RoCE allows RDMA over Converged Ethernet to operate without requiring special network configuration for PFC or ECN, simplifying deployment.
Q: Is this network card compatible with virtualization environments?
A: Yes, it supports SR-IOV and VirtIO acceleration for enhanced performance in virtualized environments.
Installation Considerations
- Ensure proper ventilation and cooling for optimal performance
- Verify server compatibility and PCIe slot availability
- Use qualified optical transceivers and cables for guaranteed performance
- Update to latest firmware version before deployment
- Consult compatibility guides for specific server and switch configurations
