100GbE NIC Mellanox Network Card MCX516A-CCAT Dual-Port QSFP28 PCIe3.0x16

100GbE NIC Mellanox Network Card MCX516A-CCAT Dual-Port QSFP28 PCIe3.0x16

100GbE NIC Mellanox Network Card

QSFP28 Mellanox Network Card

mellanox nic cards MCX516A-CCAT

Brand Name:


Model Number:



Request A Quote
Product Details
Products Status:
Interface Type::
New And Original
Warranty Time:
1 Year
Interface Type:
Product Description

MCX516A-CCAT ConnectX-5 EN Adapter Card 100GbE

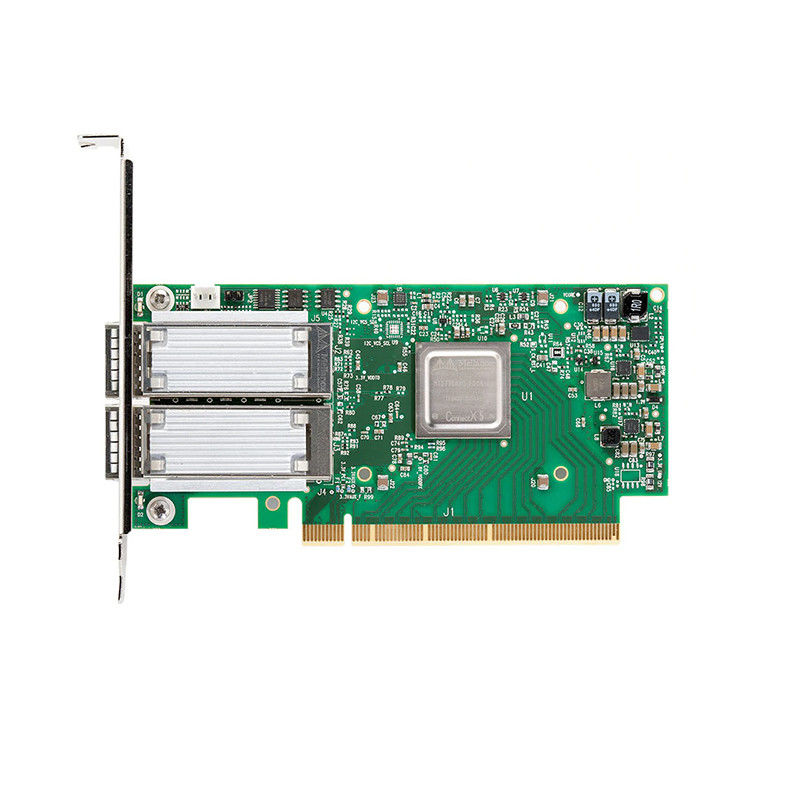

MCX516A-CCAT ConnectX-5 EN Adapter Card 100GbE Dual-Port QSFP28 PCIe 3.0 x16 Tall Bracket ROHS R6


ConnectX-5 Ethernet network interface cards provide high performance and flexible solutions with up to two ports of 100GbE connectivity, 750ns latency, up to 200 million messages per second (Mpps), and a record setting 197Mpps when running an open source Data Path Development Kit (DPDK) PCIe (Gen 4.0). For storage workloads, ConnectX-5 delivers a range of innovative accelerations, such as Signature Handover (T10-DIF) in hardware, an embedded PCIe Switch, and NVMe over Fabric target offloads. ConnectX-5 adapter cards also bring advanced Open vSwitch offloads to telecommunications and cloud data centers to drive extremely high packet rates and throughput with reduced CPU resource consumption, thus boosting data center infrastructure efficiency.

ConnectX-5 adapter cards are available for PCIe Gen 3.0 and Gen 4.0 servers and provide support for 1, 10, 25, 40, 50 and 100 GbE speeds in stand-up PCIe cards, OCP 2.0, and OCP 3.0 form factors. ConnectX-5 cards also offer advanced Multi-Host and Socket Direct technologies.


  • Tag matching and rendezvous offloads
  • Adaptive routing on reliable transport
  • Burst buffer offloads for background checkpointing
  • NVMe over Fabric offloads
  • Backend switch elimination by host chaining
  • Embedded PCIe switch
  • Enhanced vSwitch/vRouter offloads
  • Flexible pipeline
  • RoCE for overlay networks
  • PCIe Gen 4.0 support
  • RoHS compliant
  • ODCC compatible
  • Various form factors available



  • Up to 100Gb/s connectivity per port
  • Industry-leading throughput, low latency, low CPU utilization and high message rate
  • Innovative rack design for storage and Machine Learning based on Host Chaining technology
  • Smart interconnect for x86, Power, Arm, and GPU-based compute & storage platforms
  • Advanced storage capabilities including NVMe over Fabric offloads
  • Intelligent network adapter supporting flexible pipeline programmability
  • Cutting-edge performance in virtualized networks including Network Function Virtualization (NFV)
  • Enabler for efficient service chaining capabilities
  • Efficient I/O consolidation, lowering data center costs and complexity


PCI Express Interface – PCIe switch Downstream Port Operating Systems/Distributions* Connectivity
PCIe Gen 4.0 Containment (DPC) enablement for PCIe hot-plug RHEL/CentOS Interoperability with Ethernet switches (up to 100GbE)
 2.5, 5.0, 8.0, 16.0 GT/s link rate Access Control Service (ACS) for peer-to-peer secure communication FreeBSD Passive copper cable with ESD protection
Auto-negotiates to x16, x8, x4, x2, or x1 lane(s) Advance Error Reporting (AER) VMware
PCIe Atomic Process Address Space ID (PASID) Address Translation Services (ATS) OpenFabrics Enterprise Distribution (OFED) – Powered connectors for optical and active cable support
 TLP (Transaction Layer Packet) Processing Hints (TPH) IBM CAPI v2 support (Coherent Accelerator Processor Interface) OpenFabrics Windows Distribution (WinOF-2)
Embedded PCIe Switch: Up to 8 bifurcations Support for MSI/MSI-X mechanisms

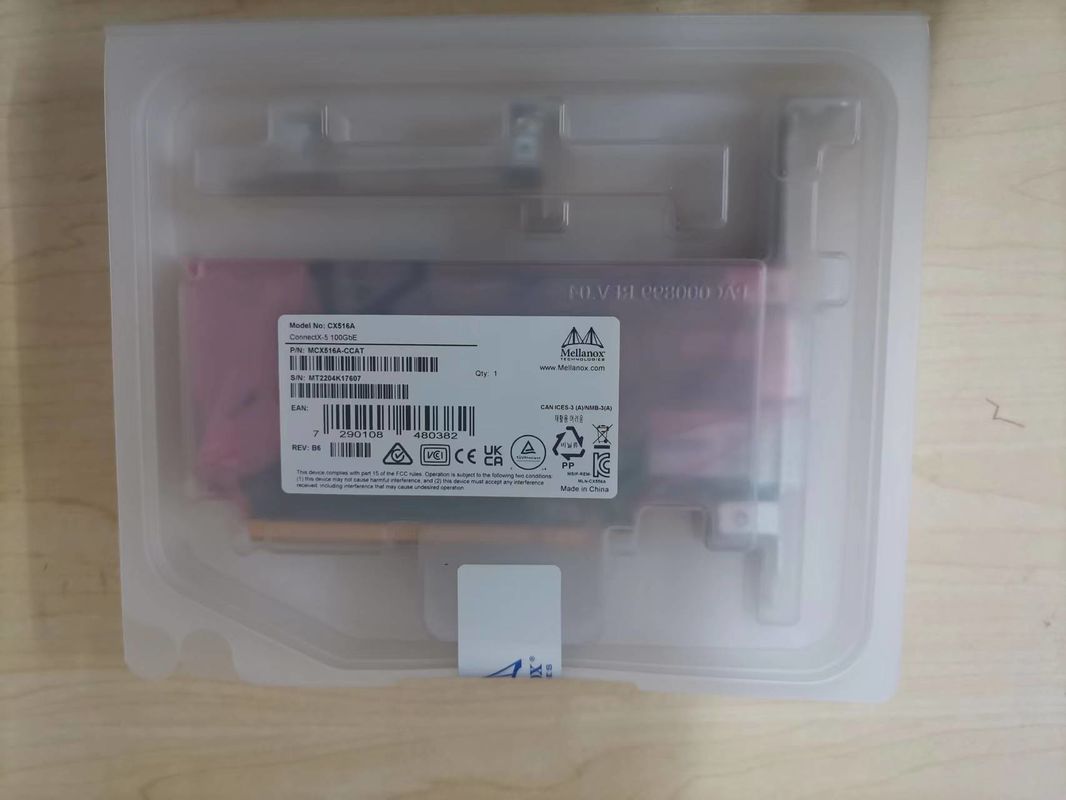

100GbE NIC Mellanox Network Card MCX516A-CCAT Dual-Port QSFP28 PCIe3.0x16 0100GbE NIC Mellanox Network Card MCX516A-CCAT Dual-Port QSFP28 PCIe3.0x16 1
100GbE NIC Mellanox Network Card MCX516A-CCAT Dual-Port QSFP28 PCIe3.0x16 2
