10GBASE-SR 850nm 300m Extreme Network AVB Switch 10GB-SR-SFPP DOM Duplex LC MMF
Product Details:
| Brand Name: | Extreme |
| Model Number: | Optical Transceiver Module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Warranty Time: | 1 Year |
|---|---|---|---|
| Lead Time: | According To Stock | Products Status: Stock: | Stock |
| Material: | Metal | Outline: | Flat |
| Transmitter Type: | VCSEL | Receiver Sensitivity: | < -11.1dBm |
| Highlight: | 10GBASE-SR Extreme Network AVB Switch,10GB Extreme Network AVB Switch,DOM extreme networks 10gb switch |
||
Product Description

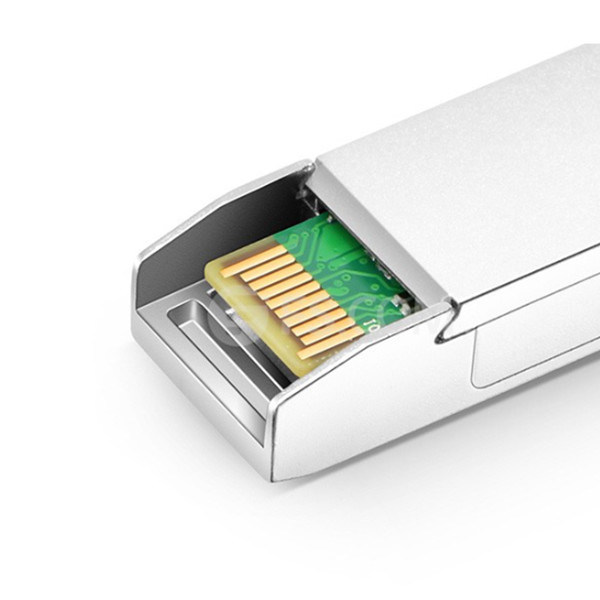

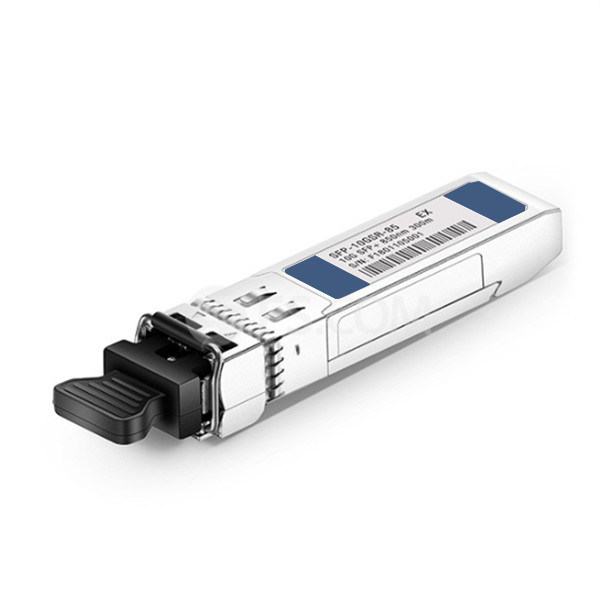

Extreme Networks 10GB-SR-SFPP Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)
Extreme Networks 10GB-SR-SFPP compatible SFP+ transceiver supports up to 400m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.
Flexible Deployment Options
The X690 can handle a range of high bandwidth applications, including high-density 10Gb top of rack aggregation, as well as spine/leaf deployments as an edge leaf switch. With both copper and fiber high-density 10Gb port options, the X690 can flexibly accommodate a variety of data center needs. It can also flexibly support uplinks at 25Gb, 40Gb, 50Gb or even 100Gb rates. A range of SFP+ and QSFP+ optical transceivers are available to support 1Gb, 10Gb and 40Gb Ethernet, while QSFP28 optical transceivers can be used to support 25Gb, 50Gb and 100Gb Ethernet applications.
ExtremeXOS Intelligent L2/L3 Switching
The ExtremeSwitching X690 family supports sophisticated, intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing, including policy-based switching and routing. The X690 simplifies network operation with the ExtremeXOS modular operating system, which is used across a wide range of ExtremeSwitching networking products. The high availability ExtremeXOS operating system reduces operational overhead through the use of a single OS across the network.
Specifications
| Wavelength | 850nm | Max Data Rate | 10.3125Gbps |
| Max Cable Distance |
300m@OM3/400m@OM4 |
Receiver Type |
PIN |
| TX Power |
-7.3~-1dBm |
Receiver Overload |
0.5dBm |
| Typical Power Consumption |
≤0.6W |
Extinction Ratio |
>3dB |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
FAQ
Q1.What can you buy from us?
A:Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, Access Point, etc.
Q2.How about the delivery date?
A:It usually takes 3-5 working days. For specific models, please contact us to check the stock. In the end, the actual
consultation shall prevail. We will do our best to deliver as soon as possible.
Q3.What's your warranty terms?
A: We supply 12 months warranty time.
Q4.How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any
shipments that you wanted.
Q5.Can I get some samples?
A:Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6.What are your core strengths?
A:First-hand supply, Original and new products with the favorable price and perfect after-sales service.
