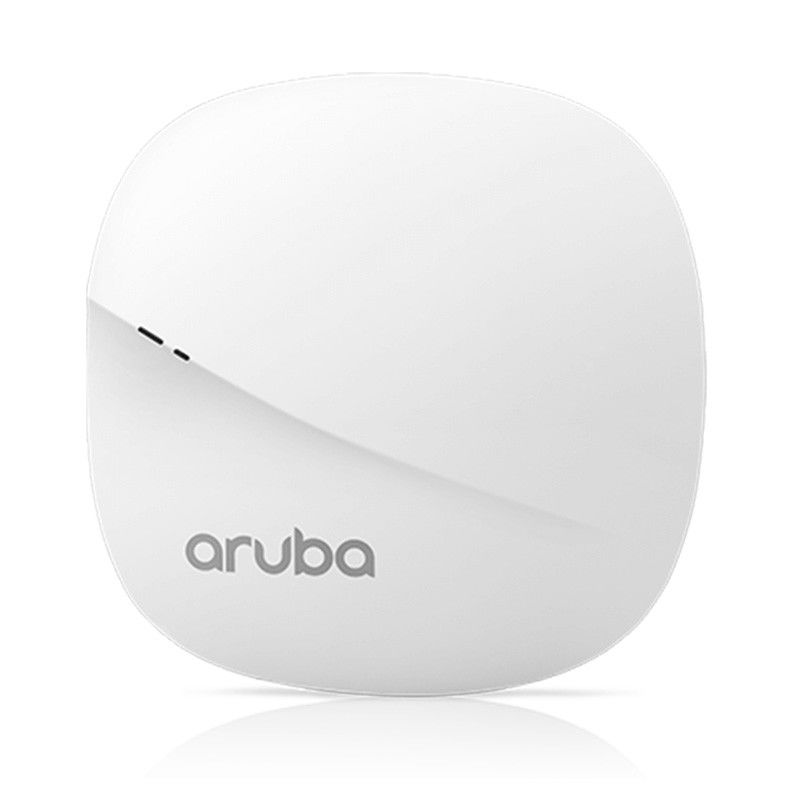

Unified Campus Dual AP 303 Aruba Networks Ap 802.11ac MUMIMO Radio Internal Antennas

Unified Campus Dual AP 303 Aruba Networks Ap 802.11ac MUMIMO Radio Internal Antennas

Campus ap 303 aruba

Unified Campus ap 303 aruba

AP 303 aruba networks ap

Brand Name:


Model Number:



Request A Quote
Product Details
New And Original
Access Points
Supported Frequency:
5GHz And 2.4GHz 2x2:2 MU-MIMO
Indoor Access Point
Transmission Standard:
802.11ac Wave 2
150mm (W) X 150mm (D) X 35mm (H)
Product Description
  • AP type: Indoor, dual radio, 802.11ac Wave 2 2x2:2 MU-MIMO
  • The compact Aruba 303 Series AP delivers a maximum
    concurrent data rate of 867 Mbps in the 5GHz band and
    300 Mbps in the 2.4GHz band (for an aggregate peak
    data rate of 1.2Gbps). Featuring 2x2:2SS, the Aruba 303 is
    designed for medium device density environments, such as
    schools, retail branches, warehouses, hotels and enterprise
    offices, where the environment is cost sensitive.
    The 303 Series includes an integrated Bluetooth 5 and
    802.15.4 radio (for Zigbee support) to simplify deploying and
    managing Meridian and IoT-based location services, asset
    tracking services, security solutions and IoT sensors. This
    allows organizations to leverage the AP as an IoT platform,
    which eliminates the need for an overlay infrastructure and
    additional IT resources.
    • Unified AP – deploy with or without controller
    - The 303 Series access points can be deployed in
    either controller-based (ArubaOS) or controller-less
    (InstantOS) deployment mode
    • Dual Radio 2x2 802.11ac access point with Multi-User
    MIMO (wave 2)
    - Supports up to 867Mbps in the 5GHz band (with 2SS/
    VHT80 client devices) and up to 300Mbps in the 2.4GHz
    band (with 2SS/HT40 clients)
    • Built-in Bluetooth Low-Energy (BLE) radio
    - Enables location based services with BLE-enabled mobile
    devices receiving signals from multiple Aruba Beacons at
    the same time
    - Enables asset tracking when used with Aruba Asset Tags
    • Advanced Cellular Coexistence (ACC)
    - Minimizes interference from 3G/4G cellular networks,
    distributed antenna systems and commercial small cell/
    femtocell equipment
    • Quality of service for unified communications applications
    - Supports priority handling and policy enforcement for
    unified communication apps, including Skype for Business
    with encrypted videoconferencing, voice, chat and
    desktop sharing
    Wi-Fi Radio Specifications
    • AP type: Indoor, dual radio, 5GHz 802.11ac 2x2 MIMO and
    2.4GHz 802.11n 2x2 MIMO
    • 5GHz (radio 0):
    - Two spatial stream Single User (SU) MIMO for up to
    867 Mbps wireless data rate to individual 2SS VHT80
    client devices
    - Two spatial stream Multi User (MU) MIMO for up to
    867 Mbps wireless data rate to two 1SS MU-MIMO
    capable client devices simultaneously
    • 2.4GHz (radio 1):
    - Two spatial stream Single User (SU) MIMO for up to
    300 Mbps wireless data rate to individual 2SS HT40
    client devices
    • Support for up to 256 associated client devices per radio,
    and up to 16 BSSIDs per radio
    • Supported frequency bands (country-specific restrictions
    - 2.400 to 2.4835GHz
    - 5.150 to 5.250GHz
    - 5.250 to 5.350GHz
    - 5.470 to 5.725GHz
    - 5.725 to 5.850GHz
    • Available channels: Dependent on configured
    regulatory domain
    • Dynamic frequency selection (DFS) optimizes the use of
    available RF spectrum
    • Supported radio technologies:
    - 802.11b: Direct-sequence spread-spectrum (DSSS)
    - 802.11a/g/n/ac: Orthogonal frequency-division
    multiplexing (OFDM)
    • Supported modulation types:
    - 802.11b: BPSK, QPSK, CCK
    - 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM,
    • Transmit power: Configurable in increments of 0.5dBm
    • Maximum (aggregate, conducted total) transmit power
    (limited by local regulatory requirements):
    - 2.4GHz band: +21dBm (18dBm per chain)
    - 5GHz band: +21dBm (18dBm per chain)
    - Note: conducted transmit power levels exclude antenna
    gain. For total (EIRP) transmit power, add antenna gain
    • Advanced Cellular Coexistence (ACC) minimizes the impact
    of interference from cellular networks
    • Maximum ratio combining (MRC) for improved
    receiver performance
    • Cyclic delay/shift diversity (CDD/CSD) for improved
    downlink RF performance
    • Short guard interval for 20MHz, 40MHz and
    80MHz channels
    • Space-time block coding (STBC) for increased range and
    improved reception
    • Low-density parity check (LDPC) for high-efficiency error
    correction and increased throughput
    • Transmit beam-forming (TxBF) for increased signal
    reliability and range
    • Supported data rates (Mbps):
    - 802.11b: 1, 2, 5.5, 11
    - 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    - 802.11n: 6.5 to 300 (MCS0 to MCS15)
    Wi-Fi Antennas
    • Two vertically polarized dual-band downtilt omnidirectional
    antennas for 2x2 MIMO with peak antenna
    gain of:
    - 3.3dBi in 2.4GHz and 5.8dBi in 5GHz for AP-303
    - 3.4dBi in 2.4GHz and 7.8dBi in 5GHz for AP-303P
    • The antennas are optimized for horizontal ceiling mounted
    orientation of the AP. The downtilt angle for maximum gain
    is roughly 30 degrees.
    • Combining the patterns of both antennas per radio, the
    peak gain of the average (effective) pattern is:
    - 2.1dBi in 2.4GHz and 5.7dBi in 5GHz for AP-303
    - 2.1dBi in 2.4GHz and 5.9dBi in 5GHz for AP-303P
    Other Interfaces
    • E0: One 10/100/1000BASE-T Ethernet network
    interface (RJ-45)
    - Auto-sensing link speed and MDI/MDX
    - 802.3az Energy Efficient Ethernet (EEE)
    - PoE-PD: 48Vdc (nominal) 802.3af/at/bt PoE
    • DC power interface
    • E1 (AP-303P models only): One 10/100/1000BASE-T
    Ethernet network interface (RJ-45)
    - Auto-sensing link speed and MDI/MDX
    - 802.3az Energy Efficient Ethernet (EEE)
    - PoE-PSE (output): 48Vdc (nominal) 802.3af/at PoE
    • Bluetooth Low Energy (BLE) radio
    • Zigbee 802.15.4 radio (AP-303P models only)
    • Visual indicators (tri-color LEDs): for System and
    Radio status
    • Reset button: factory reset (during device power-up), LED
    mode control (normal/off)
    • Serial console interface (proprietary, μUSB physical jack)
    • Kensington security slot
    Power Sources and Consumption
    • The AP supports direct DC power and Power over
    Ethernet (PoE)
    • When both power sources are available, DC power takes
    priority over PoE
    • Power sources are sold separately
    AP-303 models:
    • Direct DC source: 12Vdc nominal, +/- 5%
    • DC power interface accepts 2.1/5.5-mm center-positive
    circular plug with 9.5-mm length
    • Power over Ethernet (PoE): 48Vdc (nominal) 802.3af
    compliant source
    • Maximum (worst-case) power consumption: 10.1W (PoE)
    or 8.8W (DC)
    • Maximum (worst-case) power consumption in idle mode:
    4.2W (PoE) or 4.0W (DC).
      Maximum transmit power (dBm)
    per transmit chain
    Receiver sensitivity (dBm)
    per receive chain
    2.4 GHz
    802.11b 2.4 GHz
    1Mbps 18.0 -93.0
    11Mbps 18.0 -87.0
    802.11g 2.4 GHz
    6Mbps 18.0 -90.0
    54Mbps 16.0 -73.0
    802.11n HT20 2.4 GHz
    MCS0/8 18.0 -90.0
    MCS/7/15 14.0 -71.0
    802.11n HT40 2.4 GHz
    MCS0/8 18.0 -87.0
    MCS7/15 14.0 -68.0
    802.11ac VHT20 5GHz
    MCS0 18.0 -90.0
    MCS8 12.0 -67.0
    802.11ac VHT40 5GHz
    MCS0 16.0 -87.0
    MCS9 12.0 -62.0
    802.11ac VHT80 5GHz
    MCS0 18.0 -84.0
    MCS9 12.0 -59.0
