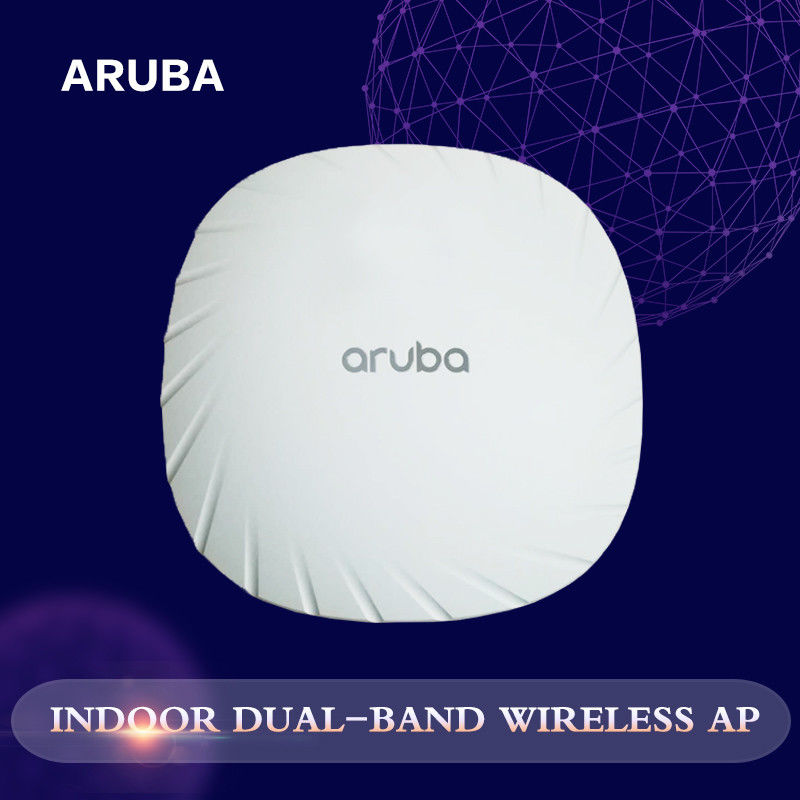

530 Series Aruba Wireless Access Points Unified AP-535 (RW) Dual Radio 4x4:4 802.11ax

530 Series Aruba Wireless Access Points Unified AP-535 (RW) Dual Radio 4x4:4 802.11ax

Unified Aruba Wireless Access Points

AP-535 Aruba Wireless Access Points

Dual Radio aruba unified ap

Brand Name:


Model Number:



Request A Quote
Product Details
New And Original
Wireless WiFi 6
Indoor Access Point
Transmission Standard:
285mm (W) X 300mm (D) X 105mm (H)
Product Description
  • AP type: Indoor, dual radio, 802.11ax 4x4:4 MU-MIMO Dual Radio
  • Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing
    numbers of IoT and mobility requirements. With a combined peak datarate of up to 2.97Gbps, the 530 Series deliver the
    speed and reliability needed for any enterprise.

    The 530 Series APs are also designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically
    reducing airtime contention between clients. Features include Orthogonal frequency-division multiple
    access (OFDMA), bi-directional multi-user MIMO and cellular optimization. With up to 4 spatial streams (4SS) and 160MHz
    channel bandwidth, the 530 Series provides groundbreaking wireless capabilities for any enterprise. Read the Multi-User 802.11ax white paper for further information.

  • Advantages of OFDMA
    This capability allows Aruba’s APs to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless
    of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource
    units (RUs), which means that clients are sharing a channel and not competing for airtime and bandwidth.The following table highlights the number of available resources units per Wi-Fi Channel used: Initially, APs in controller-less mode (Instant) can provide SLA‑grade performance by allocating radio resources, such as time, frequency, and spatial streams, to specific traffic
    types. By combining Aruba’s Policy Enforcement Firewall (PEF) and Layer 7 deep packet inspection (DPI) to identify
    user roles and applications, the APs will dynamically allocate the bandwidth needed. Non-Wi-Fi 6 clients can also benefit.
    Air Slice™ for APs uses Aruba Central for management. Controller-based APs will be supported in a future software release.
    Bi-directional Multi-user MIMO (MU-MIMO) Similar to downlink MU-MIMO in Wi-Fi 5 (802.11ac Wave2), the 530 Series can simultaneously connect clients use downlink – and now – uplink spatial streams. The added benefit is the ability to multiply the number of clients that can now send traffic, thus optimizing client-to-AP spatial stream diversity. Wi-Fi 6 and MU-MIMO aware client optimization Aruba’s patented AI-powered ClientMatch technology eliminates sticky client issues by placing Wi-Fi 6 capable devices on the best available AP. Session metrics are used to steer mobile devices to the best AP based on available bandwidth, types of applications being used and traffic type – even as users roam.

  • Aruba Advanced Cellular Coexistence (ACC)
    This feature uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed
    antenna systems (DAS), and commercial small cell or femtocell equipment.
    Intelligent Power Monitoring (IPM)
    Aruba APs continuously monitor and report hardware energy consumption. They can also be configured to enable or disable
    capabilities based on available PoE power – ideal when wired switches have exhausted their power budget.
    Like all Aruba Wi-Fi 6 APs, the 530 Series includes an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support) to
    simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors.
    This allows organizations to leverage the 530 Series as an IoT platform, which eliminates the need for an overlay infrastructure and additional IT resources.
    Target Wake Time (TWT)
    Ideal for IoTs that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP.
    This helps improve client power savings and reduces airtime contention with other clients.
    Aruba APs act as a foundation for accurate indoor location so that location-aware services can be deployed at scale.
    Using embedded GPS receivers, Aruba Wi-Fi 6E APs are able to self-locate and work with Wi-Fi 6 APs to establish
    reference points that can be used to accurately determine indoor client location. Because they use universal latitude and longitude coordinates, there is no need for custom map development or to create separate applications for indoor and outdoor

      Maximum transmit power (dBm)
    per transmit chain
    Receiver sensitivity (dBm)
    per receive chain
    2.4 GHz 802.11b
    1Mbps 18.0 -96.0
    11Mbps 18.0 -88.0
    2.4 GHz 802.11g
    6Mbps 18.0 -93.0
    54Mbps 17.0 -75.0
    2.4 GHz 802.11n HT20
    MCS0/8 18.0 -93.0
    MCS/7/15 16.0 -75.0
    2.4 GHz 802.11ax HE20
    MCS0/8 18.0 -92.0
    MCS7/15 14.0 -62.0
    5 GHz 802.11a
    6Mbps 18.0 -93.0
    54Mbps 17.0 -75.0
    5 GHz 802.11n HT20
    MCS0/8/16/24 18.0 -93.0
    MCS7/15/23/31 16.0 -73.0
    5 GHz 802.11n HT40
    MCS0/8/16/24 18.0 -90.0
    MCS7/15/23/31 16.0 -70.0
    5 GHz 802.11AC VHT20
    MCS0 18.0 -93.0
    MCS8 16.0 -68.0
    5 GHz 802.11AC VHT40
    MCS0 18.0 -90.0
    MCS9 16.0 -65.0
    5 GHz 802.11AC VHT80
    MCS0 18.0 -87.0
    MCS9 16.0 -62.0
    5 GHz 802.11AC VHT160
    MCS0 18.0 -84.0
    MCS9 16.0 -59.0
    5 GHz 802.11ax HE20
    MCS0 18.0 90.0
    MCS11 14.0 60.0
    5 GHz 802.11ax HE40
    MCS0 18.0 87.0
    MCS11 14.0 57.0
    5 GHz 802.11ax HE80
    MCS0 18.0 84.0
    MCS11 14.0 54.0
    5 GHz 802.11ax HE160
    MCS0 18.0 81.0
    MCS11 13.0 51.0
