Aruba 300 Series Access Point (Model: JX945A) - High-Performance Wi-Fi 5 AP

1. Product Overview

The Aruba 300 Series Access Point, model JX945A, is an entry-level 802.11ac Wave 2 (Wi-Fi 5) AP designed for medium-density enterprise environments. It delivers reliable, high-speed wireless connectivity with support for MU-MIMO, advanced RF management, and integrated IoT capabilities. Ideal for cost-sensitive deployments, this AP offers a peak aggregate data rate of 1.6 Gbps and seamless roaming with ClientMatch technology.

2. Key Features

• Dual-band 3x3:3 MU-MIMO with peak rates of 1.3 Gbps (5 GHz) and 300 Mbps (2.4 GHz)
• Integrated Bluetooth Low Energy (BLE) for location services and IoT support
• Advanced Cellular Coexistence (ACC) to minimize interference from 3G/4G networks
• Adaptive Radio Management (ARM) for automated channel and power optimization
• Support for Zigbee via optional USB dongle (sold separately)
• Intelligent Power Monitoring (IPM) for energy-efficient operation

3. Technology & Standards

The Aruba 300 Series AP supports 802.11a/b/g/n/ac standards, MU-MIMO, OFDM, DSSS, and features such as TxBF, STBC, LDPC, and DFS. It is compliant with Wi-Fi Alliance certifications and includes integrated TPM for enhanced security.

4. Working Principle

The AP operates in either controller-managed or Instant mode. In Instant mode, one AP acts as a virtual controller, automatically configuring others in the network. It uses ClientMatch to steer MU-MIMO-capable devices to the best available AP, optimizing throughput and user experience through dynamic RF management and simultaneous multi-device data transmission.

5. Applications

Ideal for:

• Enterprise offices and campuses
• Education institutions
• Healthcare facilities
• Retail and hospitality environments
• IoT-enabled smart buildings

6. Specifications & Selection Guide

7. Advantages & Selling Points

• Superior user experience with MU-MIMO and ClientMatch
• Integrated IoT-ready platform with BLE and Zigbee support
• Energy-efficient with Intelligent Power Monitoring
• Flexible deployment modes: Controller-managed, Instant, or Remote AP
• Advanced security features including WIPS and TPM

8. Service & Support

We offer:

• Lifetime limited warranty
• 24/7 technical support
• Global shipping and logistics
• Professional integration and configuration services
• Optional Aruba Central subscriptions available

9. Frequently Asked Questions (FAQ)

Q: Does the JX945A support mesh networking?
A: Yes, it supports secure enterprise mesh deployments.

Q: Can I use this AP with a standard PoE switch?
A: Yes, it is compatible with 802.3af PoE, but may enter power-save mode. For full functionality, use 802.3at or higher.

Q: Is the Bluetooth radio user-configurable?
A: Yes, it can be used for location services, beacon management, and IoT applications.

Q: What is the difference between AP-305 and IAP-305?
A: AP-305 is controller-managed, while IAP-305 operates in Instant (controller-less) mode.

10. Precautions

• Ensure proper ventilation and operating temperature (0°C to 50°C)
• Use only approved power adapters or PoE injectors
• Comply with local regulatory requirements for RF transmission
• Do not block antennas or USB ports during operation

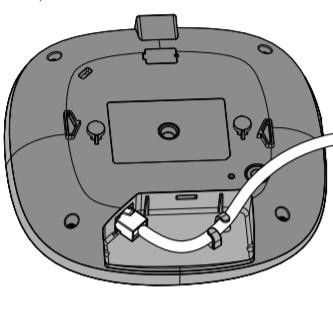

• For ceiling mount, use included clips or optional mount kits
