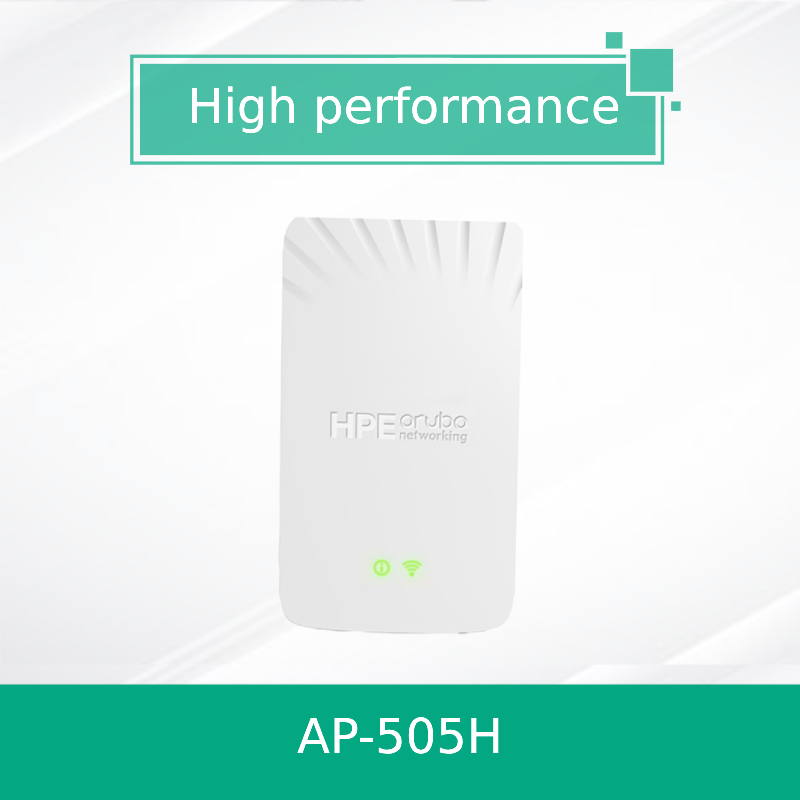

2x2 Unified Aruba Hospitality AP access points 500H Series AP 505H (RW) With 1+4 Ethernet PSE USB

2x2 Unified Aruba Hospitality AP access points 500H Series AP 505H (RW) With 1+4 Ethernet PSE USB

2x2 aruba hospitality ap

Unified aruba hospitality ap

500H hospitality access points

Brand Name:


Model Number:



Request A Quote
Product Details
New And Original
Wireless WiFi 6
Supported Frequency:
Dual Radio 2x2:2
Hospitality AP
Transmission Standard:
111mm (W) X 54mm (D) X 167mm (H)
Product Description
  • AP type: Hospitality AP, dual radio, 802.11ax 2x2:2 MU-MIMO
  • These economical Wi-Fi 6 access points provide
    high‑performance connectivity for any organization
    experiencing growing mobile, cloud and IoT requirements.
    With a wireless aggregate data rate of up to 1.5 Gbps
    and gigabit local wired ports, they deliver the range of
    connectivity options needed for venues such as hotels,
    residence halls, and remote offices alike.
    The 500H Series APs are designed to optimize user
    experience by maximizing Wi-Fi efficiency and dramatically
    reducing airtime contention between clients.
    Features include Orthogonal frequency-division multiple
    access (OFDMA), and cellular optimization. With up to 2
    spatial streams (2SS) and 80MHz channel bandwidth, the
    500H Series provides groundbreaking wireless capabilities
    for budget-conscious deployments.
    Read the Multi-User 802.11ax white paper for further
    Advantages of OFDMA
    This capability allows Aruba’s APs to handle multiple Wi-Fi 6
    capable clients on each channel simultaneously, regardless of
    device or traffic type. Channel utilization is optimized
    by handling each transaction via smaller sub-carriers or
    resource units (RUs), which means that clients are sharing a
    channel and not competing for airtime and bandwidth.
    Wi-Fi 6 aware client optimization
    Aruba’s patented AI-powered ClientMatch technology
    eliminates sticky client issues by placing Wi-Fi 6 capable
    devices on the best available AP. Session metrics are used
    to steer mobile devices to the best AP based on available
    bandwidth, types of applications being used and traffic type –
    even as users roam.

    Advanced Cellular Coexistence (ACC)
    This feature uses built-in filtering to automatically minimize
    the impact of interference from cellular networks, distributed
    antenna systems (DAS), and commercial small cell or femtocell
    Intelligent Power Monitoring (IPM)
    Aruba APs continuously monitor and report hardware energy
    consumption. They can also be configured to enable or
    disable capabilities based on available PoE power – ideal when
    wired switches have exhausted their power budget (AP-505H).
    Like all Aruba Wi-Fi 6 APs, the 500H Series includes an
    integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support)
    to simplify deploying and managing IoT-based location
    services, asset tracking services, security solutions and IoT
    sensors. This allows organizations to leverage the 500H Series
    as an IoT platform, which eliminates the need for an overlay
    infrastructure and additional IT resources.
    Target Wake Time (TWT)
    Ideal for IoTs that communicate infrequently, TWT establishes
    a schedule for when clients need to communicate with an AP.
    This helps improve client power savings and reduces airtime
    contention with other clients.
    Advanced IoT Coexistence (AIC)
    This feature uses built-in filtering to allow Wi-Fi and BLE/
    Zigbee radios to operate at maximum capacity without the
    impact of interference
    The Aruba 500H Series includes security components to
    help protect user authentication and wireless traffic. Select
    capabilities include:
    WPA3 and Enhanced Open
    Support for stronger encryption and authentication is
    provided via the latest version of WPA for enterprise protected
    networks. Enhanced Open offers seamless new protection
    for users connecting to open networks where each session is
    automatically encrypted to protect user passwords and data
    on guest networks.
    MPSK enables simpler passkey management for WPA2
    devices – should the Wi-Fi password on one device or device
    type change, no additional changes are needed for other
    devices. This requires ClearPass Policy Manager.
    VPN Tunnels
    In Remote AP (RAP) and IAP-VPN deployments, the Aruba
    500H Series can be used to establish a secure SSL/IPSec VPN
    tunnel to a Gateway or Mobility Controller that is acting as a
    VPN concentrator.
    Trusted Platform Module (TPM)
    For enhanced device assurance, all Aruba APs have an
    installed TPM for secure storage of credentials, keys and
    boot code.
    To simplify policy enforcement, the Aruba 500H Series uses
    Aruba’s Policy Enforcement Firewall (PEF) to encapsulate all
    traffic from the AP to the Mobility Controller (or gateway) for
    end-to-end encryption and inspection. Policies are applied
    based on user role, device type, applications, and location.
    This reduces the manual configuration of SSIDs, VLANs and
    ACLs. PEF also serves as the underlying technology for Aruba
    Dynamic Segmentation.
    Each 500H Series AP provides connectivity for a maximum of
    256 associated clients per radio (512 in total). In real-world
    scenarios, the maximum recommended client density is
    dependent on environmental conditions.

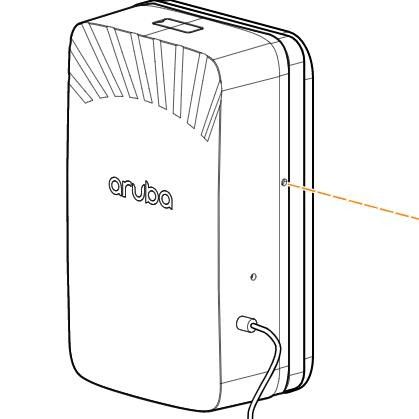

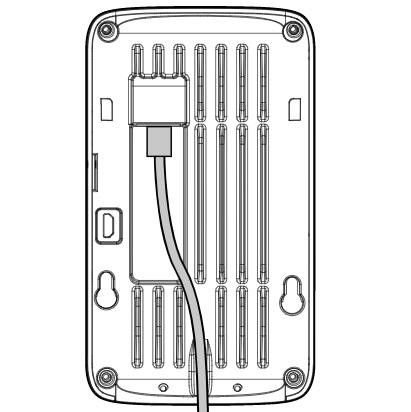

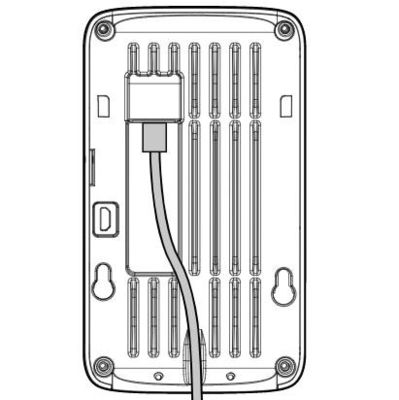

    The APs can be deployed as a wall-mount or for remote
    teleworker environments, they can be converted to a deskmount
    by using an optional accessory stand.
    Aruba also offers a Fiber Media Converter that fits snuggly
    alongside Aruba 500H Series Hospitality APs. It can
    transparently convert fiber to copper Ethernet, convert DC
    power to POE, and extend the reach of the AP.
    Our unified APs can operate as standalone access points
    or with a gateway for greater scalability, security, and
    manageability. APs can be deployed using zero touch
    provisioning – without on-site technical expertise – for ease
    of implementation in branch offices and for remote work.
    Aruba APs can be managed using cloud-based or onpremises
    solutions for any campus, branch, or remote work
    As the management and orchestration console for Aruba ESP
    (Edge Services Platform), Aruba Central provides a single pane
    of glass for overseeing every aspect of wired and wireless
    LANs, WANs, and VPNs. AI-powered analytics, end-to-end
    orchestration and automation, and advanced security features
    are built natively into the solution.
    For hybrid environments, EdgeConnect Microbranch
    extends the WAN to the small office/home office to deliver
    a consistent employee experience no matter where users
    are located. EdgeConnect Microbranch offers a suite of
    SD-WAN capabilities to optimize performance, security, and
    manageability via cloud-based Aruba Central and the Aruba
    AP itself. With EdgeConnect Microbranch, organizations
    can extend existing remote access point (RAP) capabilities
    to benefit from policy-based routing, tunnel and route
    orchestration, and SASE integration to cloud security services
    such as Zscaler.
    For large installations across multiple sites, APs can be
    factory-shipped and can be activated with Zero Touch
    Provisioning through Aruba Central or AirWave. This reduces
    deployment time, centralizes configuration, and helps
    manage inventory.
    500H Remote AP bundles
    To simplify the ordering and distribution of 500H access
    points, we offer a number of AP bundles that combine an AP
    variant a desk stand, power adapter, and North American
    or European power cord. This makes it easier to get remote
    workers and small branches up and running quickly.

  • Wi-Fi radio and platform specifications
    5GHz radio Two spatial stream (SU) MIMO for up to 1.2Gbps wireless data rate (HE80)
    2.4GHz radio Two spatial stream (SU) MIMO for up to 287Mbps wireless data rate (HE20)
    Note: HE40 operation is supported in 2.4GHz, but uncommon and not recommended for enterprise
    Maximum number of associated client devices
    Up to 256 associated client devices per radio
    Intelligent Power Monitoring (IPM)

    • Two integrated semi-directional antennas for 2x2 MIMO with peak single antenna gain of 5.2dBi in 2.4GHz and 5.4dBi in 5GHz. Built-in
    antennas are optimized for vertical wall or desk mounted orientation of the AP.
    - Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 3.3dBi in 2.4GHz and 2.9dBi in 5GHz.

      Maximum transmit power (dBm)
    per transmit chain
    Receiver sensitivity (dBm)
    per receive chain
    802.11b 2.4 GHz
    1Mbps 17.0 -94.0
    11Mbps 17.0 -86.0
    802.11g 2.4 GHz
    6Mbps 17.0 -89.0
    54Mbps 17.0 -73.0
    802.11n HT20 2.4 GHz
    MCS0/8 17.0 -89.0
    MCS/7/15 15.0 -69.0
    802.11ax HE20 2.4 GHz
    MCS0/8 17.0 -89.0
    MCS7/15 11.0 -60.0
    802.11a 5 GHz
    6Mbps 18.0 -92.0
    54Mbps 18.0 -74.0
    802.11n HT20 5 GHz
    MCS0/8/16/24 18.0 -91.0
    MCS7/15/23/31 16.0 -71.0
    802.11n HT40 5 GHz
    MCS0/8/16/24 18.0 -88.0
    MCS7/15/23/31 16.0 -78.0
    802.11AC VHT20 5 GHz
    MCS0 18.0 -91.0
    MCS8 14.0 -67.0
    802.11AC VHT40 5 GHz
    MCS0 18.0 -94.0
    MCS9 14.0 -64.0
    802.11AC VHT80 5 GHz
    MCS0 18.0 -86.0
    MCS9 14.0 -63.0
    802.11ax HE20 5 GHz
    MCS0 18.0 91.0
    MCS11 12.0 62.0
    802.11ax HE40 5 GHz
    MCS0 18.0 90.0
    MCS11 12.0 59.0
    802.11ax HE80 5 GHz
    MCS0 18.0 87.0
    MCS11 12.0 56.0
