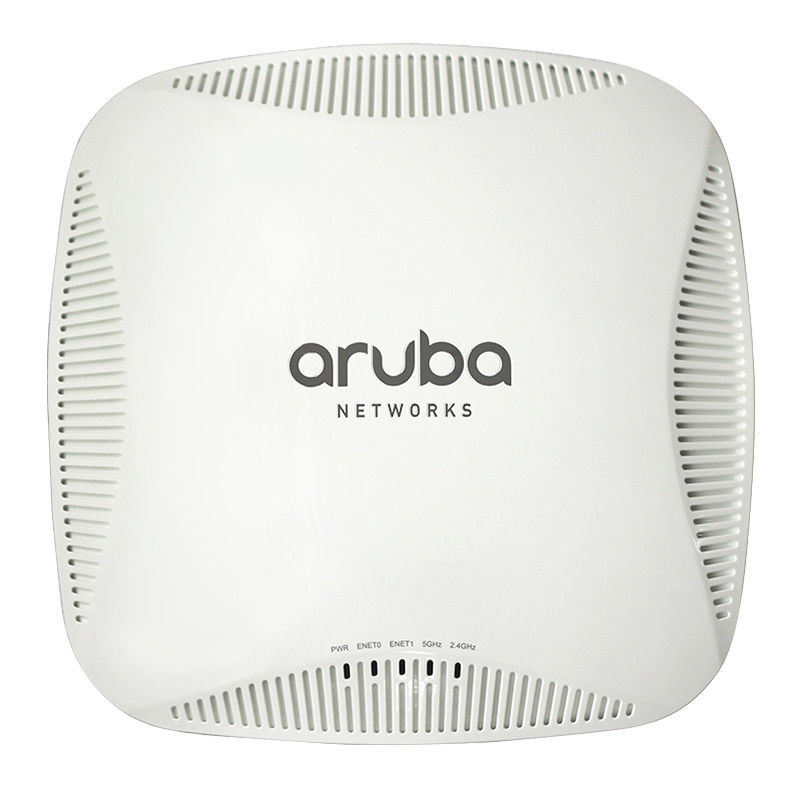

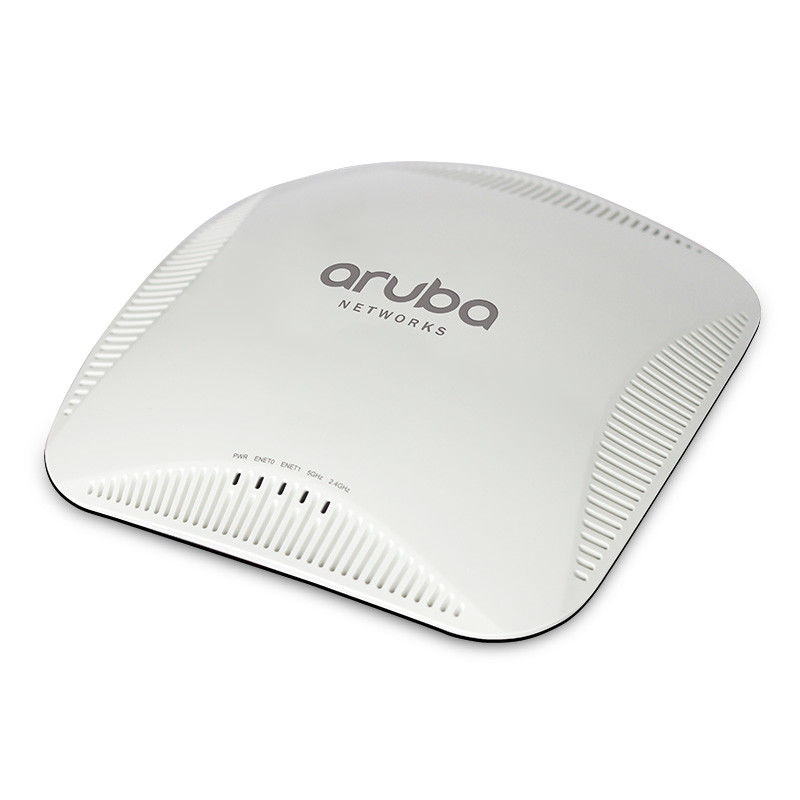

Dual 3x3:3 Aruba Poe Access Point Aruba AP 225 802.11n
Product Details:
| Brand Name: | Aruba |
| Model Number: | AP-225(JW174A) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | Western Union, T/T, , MoneyGram, XTransfer |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | Stock |
|---|---|---|---|
| Use: | Access Points | Supported Frequency: | 5GHz And 2.4GHz |
| Type: | Dual Radio | Transmission Standard: | 802.11 Ac |
| Size: | 315 Mm (W) X 265 Mm (D) X 100 Mm (H) | Weight: | 1250 G |
| Highlight: | Dual aruba poe access point,802.11n aruba poe access point,802.11n aruba ap 225 |
||
Product Description
- ARUBA 220 SERIES CAMPUS ACCESS POINTS
- AP type: Indoor, dual radio, 5GHz and 2.4GHz 802.11ac 3x3:3 MIMO
- With a maximum data rate of 1.3 Gbps in the 5-GHz band
and 600 Mbps in the 2.4-GHz band, 220 series APs are
three-times faster than 802.11n APs and provide
performance similar to a wired connection.
AP-220 SERIES SPECIFICATIONS
• AP-225 and IAP-225
- 2.4-GHz (600 Mbps max) and 5-GHz (1.3 Gbps max)
radios, each with 3x3 MIMO and three integrated omnidirectional downtilt antennas.
• AP-224 and IAP-224
- 2.4-GHz (600 Mbps max) and 5-GHz (1.3 Gbps max)
radios, each with 3x3 MIMO and three combined,
diplexed external antenna connectors.
WIRELESS RADIO SPECIFICATIONS
• AP type: Indoor, dual radio, 5 GHz 802.11ac and
2.4 GHz 802.11n
- In addition to 802.11n data rates, the 2.4-GHz
radio supports 802.11ac data rates using 256-QAM
modulation. This gives TurboQAM-enabled clients a 33%
boost above the maximum supported data rate.
• Software-configurable dual radio supports 5 GHz
and 2.4 GHz
• 3x3 MIMO with three spatial streams and up to 1.3 Gbps
wireless data rate
• Support for up to 256 associated client devices per radio,
and up to 16 BSSIDs per radio
• Supported frequency bands (country-specific
restrictions apply):
- 2.4000 GHz to 2.4835 GHz
- 5.150 GHz to 5.250 GHz
- 5.250 GHz to 5.350 GHz
- 5.470 GHz to 5.725 GHz
- 5.725 GHz to 5.850 GHz
• Available channels: Dependent upon configured
regulatory domain
• Dynamic frequency selection (DFS) optimizes the use of
available RF spectrum
• Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division
multiplexing (OFDM)
- 802.11n/ac: 3x3 MIMO with up to three spatial streams
• Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
• Transmit power: Configurable in increments of 0.5 dBm
• Maximum (aggregate, conducted total) transmit power
(limited by local regulatory requirements):
- 2.4-GHz band: +23 dBm (18 dBm per chain)
- 5-GHz bands: +23 dBm (18 dBm per chain)
• Advanced cellular coexistence (ACC) feature to effectively
deal with interference from cellular systems
• Maximum ratio combining (MRC) for improved
receiver performance
• Cyclic delay diversity (CDD) for improved downlink
RF performance
• Short guard interval for 20-MHz, 40-MHz and
80-MHz channels
• Space-time block coding (STBC) for increased range and
improved reception
• Low-density parity check (LDPC) for high-efficiency error
correction and increased throughput
• Transmit beam-forming (TxBF) for increased reliability in
signal delivery
• Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 450 (MCS0 to MCS23)
- 802.11ac: 6.5 to 1,300 (MCS0 to MCS9, NSS = 1 to 3)
• 802.11n high-throughput (HT) support: HT 20/40
• 802.11ac very high throughput (VHT) support:
VHT 20/40/80
• 802.11n/ac packet aggregation: A-MPDU, A-MSDU
POWER
• Worst-case power consumption from the AP (excluding
power drawn by an attached USB device):
- In restricted mode (PoE): 13.5W
- In unrestricted mode (PoE): 17W
- In unrestricted mode (DC): 15.5W
• Power sources sold separately
• Direct DC source: 12 Vdc nominal, +/- 5%
• Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af or
802.3at-compliant source
- Efficient mode PoE – power save with 802.3af PoE and
limited functionality
> USB port disabled
> Second Ethernet port disabled
> 2.4-GHz 802.11n radio in 1x3:1 spatial-stream mode
> 5-GHz 802.11ac radio operates without restrictions*
- Unrestricted functionality with 802.3at PoE+
*With ArubaOS software 6.3.0, the 5-GHz 802.11ac radio
operates in 2x3:2 spatial stream mode when the AP is powered
by 802.3af PoE. This restriction has been removed in 6.3.1.
ANTENNAS
• AP-224: Three RP-SMA connectors for external dualband antennas. Internal loss between radio interface and
external antenna connectors (due to diplexing circuitry):
1.5 dB in 2.4 GHz and 3.0 dB in 5 GHz.
• AP-225: Six integrated downtilt omni-directional antennas
for 3x3 MIMO with maximum antenna gain of 3.5 dBi
in 2.4 GHz and 4.5 dBi in 5 GHz. Built-in antennas are
optimized for horizontal ceiling mounted orientation
of AP-225. The downtilt angle for maximum gain is
approximately 30 degrees.

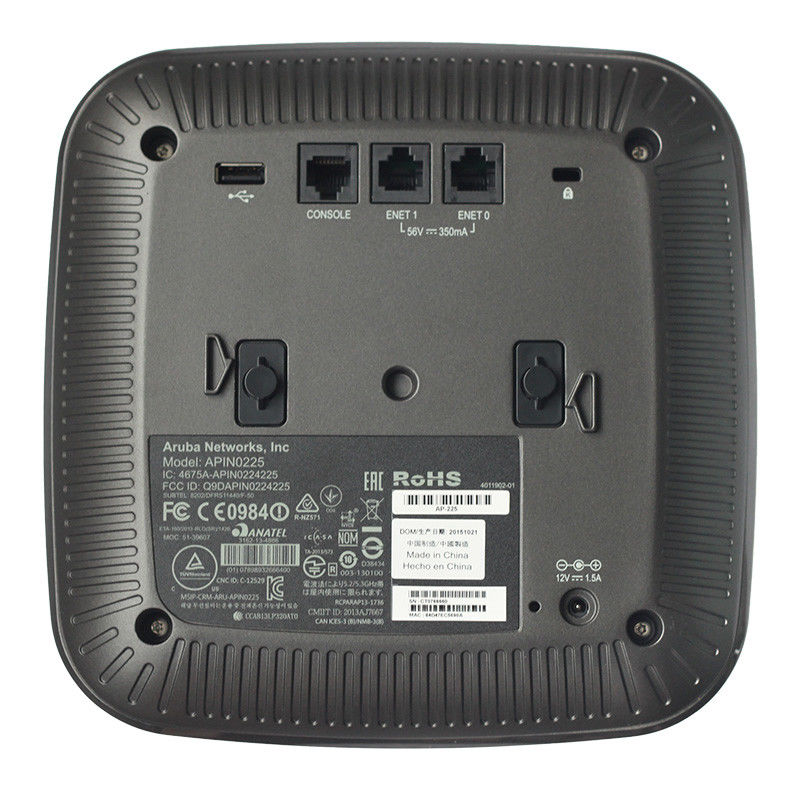

OTHER INTERFACES
• Two 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
- Auto-sensing link speed and MDI/MDX
- Load balancing support to achieve platform throughput
greater than 1 Gbps
- 802.3az Energy Efficient Ethernet (EEE)
- PoE-PD: 48 Vdc 802.3af PoE or 802.3at PoE+
• DC power interface, accepts 1.7/4.0mm center-positive
circular plug with 9.5 mm length
• USB 2.0 port (Type A connector)
• Serial console interface (RJ-45)
• Visual indicators (LEDs):
- Power/system status
- Ethernet link status (2x; ENET0, ENET1)
- Radio status (2x; RAD0, RAD1)
• Kensington security slot
• Reset button
MOUNTING

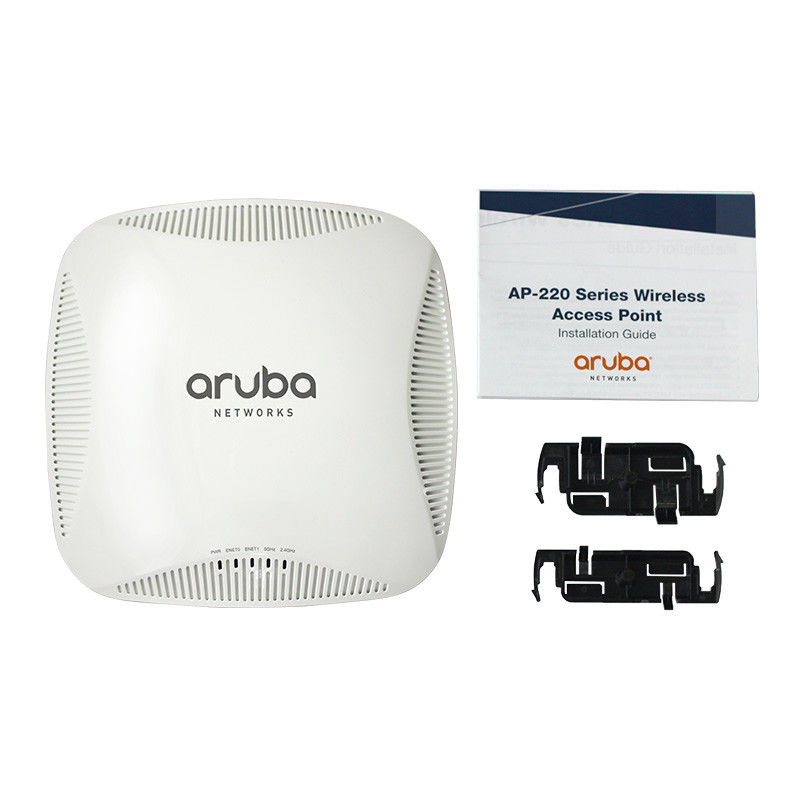

• Included with AP:
- Mounting brackets (2) for attaching to 9/16-inch or
15/16-inch T-bar drop-tile ceiling
• Optional mounting kits:
- AP-220-MNT-C2: Aruba 220 series AP mount kit contains
two ceiling-grid rail adapters for Interlude and Silhouette
style rails.
- AP-220-MNT-W1: Aruba 220 series AP mount kit contains
one flat-surface wall/ceiling mount bracket.
- AP-220-MNT-W3: Aruba 220 series AP mount kit contains
one flat-surface wall/ceiling secure mount cradle. -
RF PERFORMANCE TABLE Maximum transmit power (dBm)
per transmit chainReceiver sensitivity (dBm)
per receive chain2.4 GHz 802.11b 2.4 GHz 1Mbps 18.0 -94.0 2Mbps 18.0 -90.0 5.5Mbps 18.0 -89.0 11Mbps 18.0 -88.0 802.11g 2.4 GHz and 802.11a 5GHz 6Mbps 18.0 -91.0 54Mbps 16.0 -76.0 802.11n HT20 2.4 GHz and 5GHz MCS0/8 18.0 -91.0 MCS/7/15 14.5 -73.0 802.11n HT40 2.4 GHz and 5GHz MCS0/8 18.0 -88.0 MCS7/15 14.5 -70.0 802.11ac VHT20 5GHz MCS0 18.0 -91.0 MCS8 12.5 -64.0 802.11ac VHT40 5GHz MCS0 16.0 -88.0 MCS9 12.5 -61.0 802.11ac VHT80 5GHz MCS0 18.0 -85.0 MCS9 12.5 -58.0
-
