10Gb Advanced TBPS Extreme Network AVB Switch X690-48X-2Q-4C 1.76 Switching

10Gb Advanced TBPS Extreme Network AVB Switch X690-48X-2Q-4C 1.76 Switching

TBPS Extreme Network AVB Switch

X690 Extreme Network AVB Switch

10Gb extreme networks x690

Brand Name:

Extreme

Model Number:

17350(X690-48X-2Q-4C)

CONTACT US

Request A Quote
Product Details
Condition:
New And Original
Warranty Time:
1 Year
Dimensions:
57x38x13cm
Weight:
4kg
Lead Time:
According To Stock
Way:
Stackable
Supporting:
Switching Routing SDN VXLAN
Ports:
Up To 4 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 Ports
Product Description

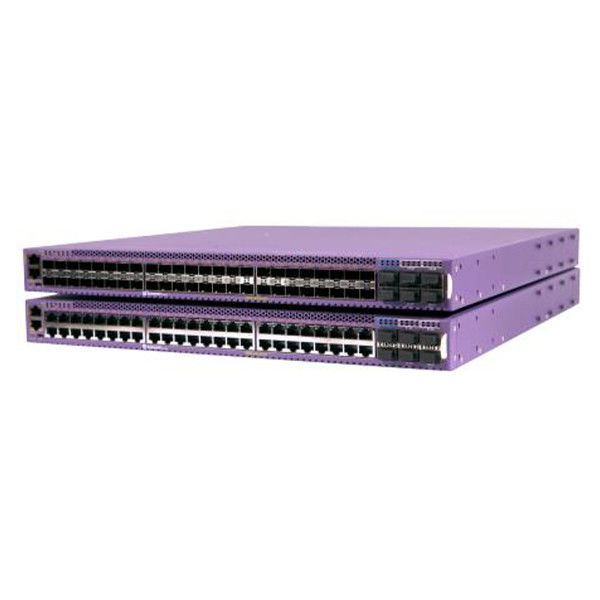

ExtremeSwitching™ X690
Product Overview
High-Density, Advanced 10Gb Enterprise LAN and Data Center Leaf Switching
The ExtremeSwitching X690 product family are high-density, purpose-built 10Gb/100Gb switches designed for high-performance enterprise and cloud data centers. The X690 can support a range of interface speeds, including 1Gb, 10Gb, 25Gb, 40Gb, 50Gb and 100Gb, all in a compact 1RU form factor. This enables the ExtremeSwitching X690 to be flexibly deployed in either Enterprise LAN or high-density top of rack data center architectures. Low-latency switching and an advanced feature set make it ideal for highperformance data center applications.

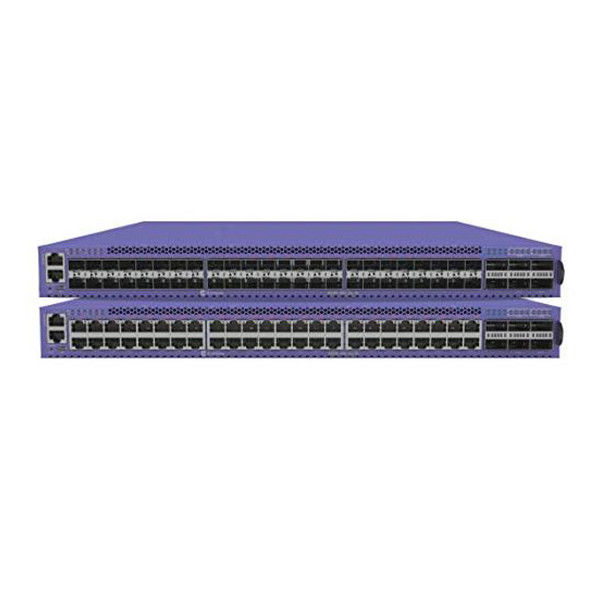

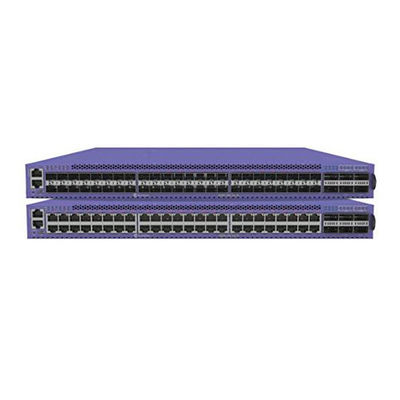

Two models of the X690 are available:

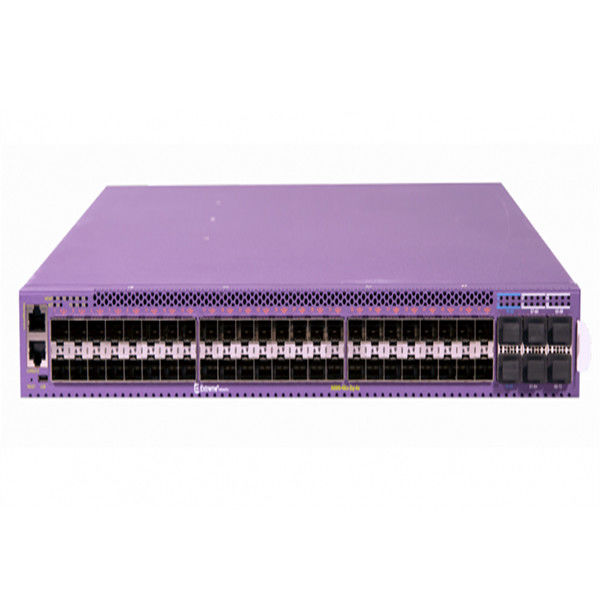

X690-48x-2q-4c:
• 48 1Gb/10Gb SFP+ ports
• 2 10Gb/40Gb QSFP+ ports
• Up to 4 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports
X690-48t-2q-4c:
• 48 1Gb/10Gb 10GBASE-T ports
• 2 10Gb/40Gb QSFP+ ports
• Up to 4 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports
Flexible Deployment Options
The X690 can handle a range of high bandwidth applications, including high-density 10Gb top of rack aggregation, as well as spine/leaf deployments as an edge leaf switch. With both copper and fiber high-density 10Gb port options, the X690 can flexibly accommodate a variety of data center needs. It can also flexibly support uplinks at 25Gb, 40Gb, 50Gb or even 100Gb rates. A range of SFP+ and QSFP+ optical transceivers are available to support 1Gb, 10Gb and 40Gb Ethernet, while QSFP28 optical transceivers can be used to support 25Gb, 50Gb and 100Gb Ethernet applications.
ExtremeXOS Intelligent L2/L3 Switching
The ExtremeSwitching X690 family supports sophisticated, intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing, including policy-based switching and routing. The X690 simplifies network operation with the ExtremeXOS modular operating system, which is used across a wide range of ExtremeSwitching networking products. The high availability ExtremeXOS operating system reduces operational overhead through the use of a single OS across the network.
Product Specifications

Model X690-48x-2q-4c X690-48t-2q-4c
X690-48t-2q-4c

•48 1Gb/10Gb SFP+ ports
• 2 10Gb/40Gb QSFP+ ports
•4 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports
• 1 x Serial console port RJ-45
• 1 x 10/100/1000BASE-T out-of-band management port
• Micro-USB Type A storage port
QSFP Port Configurations Support:
•4 10Gb / 40Gb QSFP+ ports and 2 10Gb / 25Gb / 40Gb / 50Gb / 100Gb QSFP28 ports or
•4 10Gb / 25Gb / 40Gb / 50Gb / 100Gb QSFP28 ports (two QSFP ports inactive)

•48 1Gb/10Gb 10GBASE-T ports
• 2 10Gb/40Gb QSFP+ ports
•4 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports
• 1 x Serial console port RJ-45
• 1 x 10/100/1000BASE-T out-of-band management port
• Micro-USB Type A storage port
QSFP Port Configurations Support:
•4 10Gb / 40Gb QSFP+ ports and 2 10Gb / 25Gb / 40Gb / 50Gb / 100Gb QSFP28 ports or •4 10Gb / 25Gb / 40Gb / 50G

Power Supplies

• Modular 770W AC power supply (up to two PSUs)
• Modular 1100W DC power supply (up to two PSUs)
• Front-Back and Back-Front airflow options

Modular 770W AC power supply (up to two PSUs)
• Modular 1100W DC power supply (up to two PSUs)
• Front-Back and Back-Front airflow options

Fan Modules

• 6 fan modules
• Front-Back and Back-Front airflow options

• 6 fan modules
• Front-Back and Back-Front airflow options

Dimensions 17.4in W / 19.2in D / 1.7in H (44.1cm / 48.8cm / 4.3cm) 17.4in W / 19.2in D / 1.7in H (44.1cm / 48.8cm / 4.3cm)
Performance Line rate 1.76Tbps Switching Capacity Average Latency: 800 ns Line rate 1.76Tbps Switching Capacity Average Latency: 2.3 µsec
CPU Memory

2.4GHz Quad core CPU
• 8GB DDR3 ECC memory
• 32GB SSD memory

• 2.4GHz Quad core CPU
• 8GB DDR3 ECC memory
• 32GB SSD memory

Packet Buffers 12MB 12MB
Operating Conditions

• 0º - 45ºC operation
• 10% to 95% relative humidity, non-condensing
• 0 - 3000 meters altitude
• Shock (half sine): 98 m/s2 (10 G), 11 ms, 9 shocks
• Random vibration: 3 to 500 Hz at 1.5 G rms

• 0º - 45ºC operation
• 10% to 95% relative humidity, non-condensing
• 0 - 3000 meters altitude • Shock (half sine): 98 m/s2 (10 G), 11 ms, 9 shocks
• Random vibration: 3 to 500 Hz at 1.5 G rms
