24P Extreme Networks X435 AVB Switch X435 4S 68Gbps 50.6Mpps new and original
Product Details:
| Brand Name: | Extreme |
| Model Number: | X435-24P-4S |
| Document: | X435 DS X435=1=en-US=Extrem...et.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | In Stock |
|---|---|---|---|
| Warranty Time: | 1 Year | Lead Time: | According To Stock |
| Max Active 10/100/1000BASE-T Ports: | 24 | Max Active 1Gb/2.5Gb* SFP Ports: | 4 |
| Aggregated Switch Bandwidth: | 68 Gbps | Frame Forwarding Rate: | 50.6 Mpps |
| Highlight: | 24P extreme networks x435,68Gbps extreme networks x435,X435 24p network switch |
||
Product Description

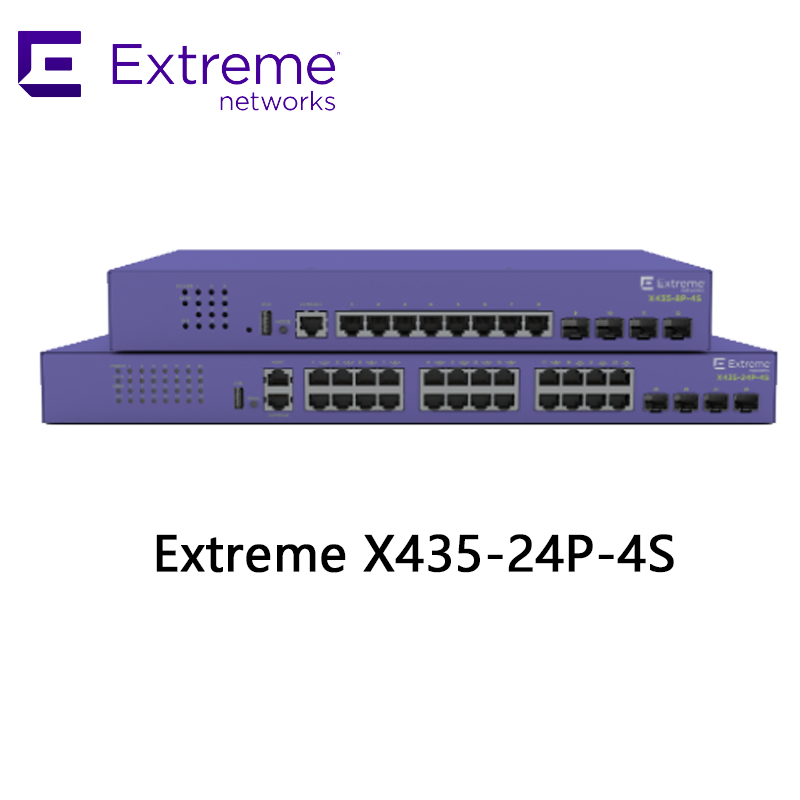

X435-24P-4S: High-Performance PoE+ Switch for Distributed Enterprises
The Extreme Networks X435-24P-4S is a 24-port Gigabit Ethernet switch designed for branch offices, small sites, and edge deployments. It delivers robust Power over Ethernet (PoE+) support, advanced Layer 2 features, and cloud-ready management capabilities. Ideal for powering IP phones, wireless access points, and IoT devices, this switch offers a cost-effective and scalable networking solution.
Key Features:

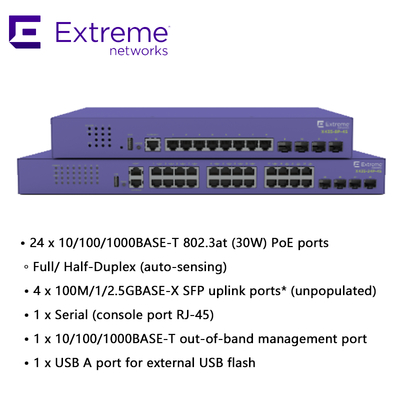

- 24 x Gigabit Ethernet PoE+ ports (30W per port)
- 4 x 1G/2.5G SFP uplink slots
- 370W total PoE budget
- Cloud management via ExtremeCloud™ IQ
- Fabric Attach for automated service provisioning
- Fanless operation (8-port models); quiet fans (24-port models)
Characteristics
- High-density PoE+ support for edge devices
- Flexible uplink options with 2.5Gb capability
- Zero-touch provisioning and cloud management
- Advanced security and role-based policy enforcement
- Audio Video Bridging (AVB) for real-time multimedia
Technology
The X435-24P-4S runs on ExtremeXOS®, a robust operating system supporting Layer 2 switching, static routing, and advanced PoE features like perpetual PoE and Fast PoE. It complies with IEEE standards including 802.3at (PoE+), 802.3bt, 802.1AVB, and 802.3az Energy Efficient Ethernet.
Working Principle
The switch operates at the network edge, aggregating traffic from end devices and forwarding it via high-speed uplinks. It supports PoE power sourcing from an upstream switch or internal PSU, and can be managed centrally through ExtremeCloud IQ for unified policy and visibility across wired and wireless networks.
Application
Ideal for:
- Branch offices and remote sites
- Schools and healthcare facilities
- Retail and hospitality environments
- IoT and surveillance camera deployments
- Unified communications and AV streaming
Specification Table
| Attribute | Value |
|---|---|
| Model | X435-24P-4S |
| Ports | 24 x 10/100/1000BASE-T PoE+, 4 x SFP (1G/2.5G) |
| PoE Budget | 370W |
| Switching Capacity | 68 Gbps |
| Forwarding Rate | 50.6 Mpps |
| Power Consumption | 12.9W (min) / 449.8W (max with PoE) |
| Dimensions | 441.96 x 254.00 x 43.94 mm (W x D x H) |
| Weight | 3.48 kg (7.67 lb) |
| Operating Temperature | 0°C to 45°C |
Advantages
- Superior PoE capacity for high-density device deployments
- Future-ready with 2.5Gb uplink support
- Silent operation in 8-port models; low-noise in 24-port models
- Integrated with Extreme Fabric Connect for seamless fabric integration
- Centralized cloud management reduces operational overhead
Service & Support
All Extreme Switches, including the X435 Series, come with a limited lifetime warranty. We offer 24/7 technical support, advanced replacement, and on-site services. Our in-house engineering team ensures over 90% first-call resolution rates.
Frequently Asked Questions
Q: Does the X435-24P-4S support PoE passthrough?
A: No, PoE passthrough is only available on the 8-port model X435-8P-2T-W.
Q: Can I manage this switch via cloud?
A: Yes, through ExtremeCloud IQ or ExtremeCloud IQ – Site Engine.
Q: Is the switch fanless?
A: The 24-port models include fans; 8-port models are fanless.
Q: What is the maximum PoE power per port?
A: 30W per port for PoE+; uplinks support up to 90W with 802.3bt.
Precautions
- Ensure adequate ventilation for maximum PoE load.
- Use compatible SFP modules verified via Extreme Optics Compatibility Tool.
- Complies with FCC, CE, RoHS, and other international standards.
- Do not block airflow around the switch during operation.
