Brand Name:
Extreme
Model Number:

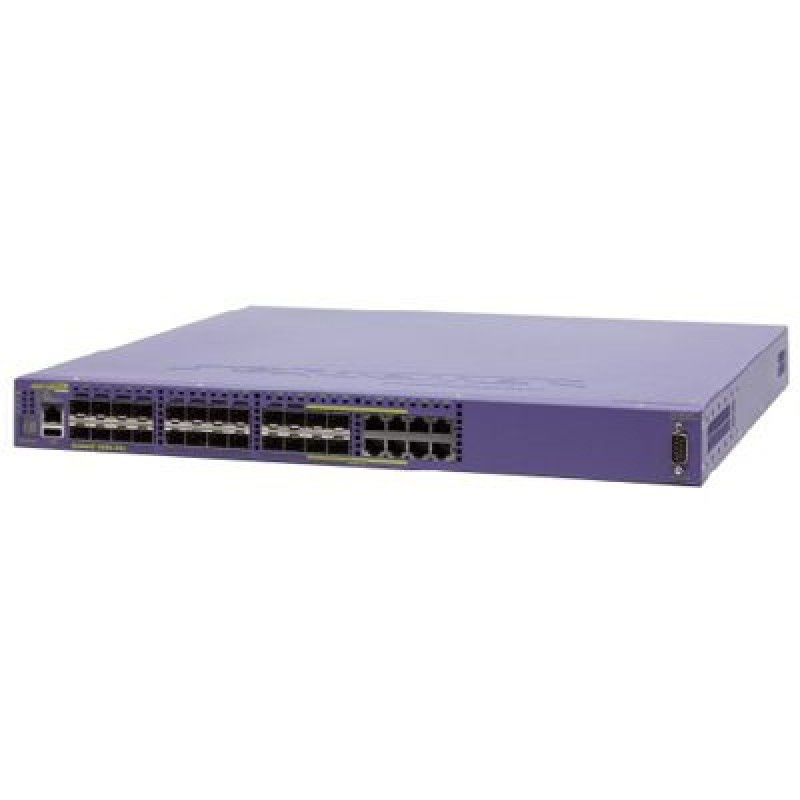

16705(X460-G2-24x-10GE4-Base)
CONTACT US
video

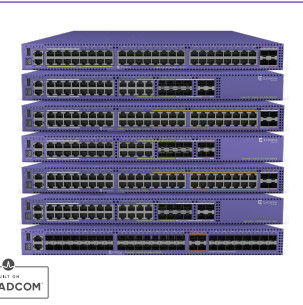

Scalable Fixed-Form Switches for Advanced Edge Access and Aggregation
The ExtremeSwitching X460-G2 seriesis based on Extreme Networks ExtremeXOS®, a highly-resilient OS that provides continuous uptime, managea bility and operational efficiency. Each switch offers the same high-performance, non-blocking hard ware technology. The X460-G2 series switches provide high-performance routing and switching, flexible stacking, PoE+ support and comprehensive security, while extending the benefits of ExtremeXOS to edge and aggregation deployments. TheX460-G2 Series easy-to-use, yet powerful, management options include ExtremeCloud IQ and Extreme Management Center for either cloud-based or on-premise oversight and configuration. The X460-G2 also supports rolebased policies and Fabric Attach for secure, automated access to specific network resources and applications.
Highlights
Scalable fixed-form switches for advanced edge access and aggregation • 24- and 48-port Gigabit and multi-rate Gigabit connectivity • Copper, Fiber, and PoE+ models • 4x10Gb SFP+ or 4x1Gb SFP ports on front faceplate • Additional 10Gb or 40Gb uplinks via optional VIM modules • Up to 8-unit stacking 40Gb or 160Gb stacking • Non-blocking, wire-speed design • Hot-swappable power supplies and fan tray • Front-to-Back or Back-to-Front airflow • SyncE G.8232 and IEEE 1588 PTP Timing support • Role-based policy and Fabric Attach for secure, automated access to network applications or services
Smart Management Choices
ExtremeCloud™ IQ for powerful, simple and secure public or private cloud management • ExtremeCloud IQ – Site Engine for centralized, unified management capabilities
Physical (cont.)
| Switch Model | Weight | Physical Dimension |
| X460-G2 VIM-2q | 0.57 lb (0.26 kg) |
Height: 1.4 inches (3.55 cm) Width: 3.4 inches (8.6 cm) Depth: 5.5 inches (13.9 cm) |
| X460-G2 TM-CLK | 0.19 lb (0.08 kg) |
Height: 1.4 inches (3.55 cm) Width: 0.9 inches (2.29 cm) Depth: 6.3 inches (16.0 cm) |
| X460-G2 Front-to-Back fan module | 1.0 lb (0.46 kg) |
Height: 1.59 inches (4.04 cm) Width: 4.8 inches ( 12.2 cm) Depth: 6.2 inches (15.75 cm) |
| X460-G2 Back-to-Front fan module | 1.0 lb (0.46 kg) |
Height: 1.59 inches (4.04 cm) Width: 4.8 inches ( 12.2 cm) Depth: 6.2 inches (15.75 cm) |
Specifications (cont.)
Front-Panel Ports (cont.)
| Switch Hardware | Ports |
| X460-G2-24p-GE4 | • 24 x 10/100/1000BASE-T PoE-Plus - 4 ports are combo ports • 8 x 100/1000BASE-X (SFP) unpopulated ports – 4 ports are combo ports • 4 1GBASE-X SFP (unpopulated ports) • 1 x Serial (console port RJ-45) • 1 x 10/100/1000BASE-T out-of-band management port • 1 x USB port for external USB flash |
| X460-G2-48p-GE4 | • 48 x 10/100/1000BASE-T PoE-Plus • 4 x 1GBASE-X SFP (unpopulated ports) • 1 x Serial (console port RJ-45) • 1 x 10/100/1000BASE-T out-of-band management port • 1 x USB port for external USB flash |
| X460-G2-16mp-32p-10GE4 | • 16 x 100Mb/1/2.5GbE PoE-Plus • 32 x 10/100/1000BASE-T PoE-Plus • 4 x 10GBASE-X SFP+ (unpopulated ports) • 1 x Serial (console port RJ-45) • 1 x 10/100/1000BASE-T out-of-band management port • 1 x USB port for external USB flash |
| X460-G2 VIM-2x | X460-G2 VIM-2x |
| X460-G2 VIM-2t | 2 x 10GBASE-T Ports |
| X460-G2 VIM-2ss | 2 x SummitStack (CX4) Ports |
| X460-G2 VIM-2q | 2 x 40GBASE-X QSFP+ (unpopulated ports) |
| X460-G2 TM-CLK | Clock Module for SyncE and 1588 with 2 mini-BNC connectors for 10MHz and 1PPS signals |
Q1.What can you buy from us?
A:Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, Access Point, etc.
Q2.How about the delivery date?
A:It usually takes 3-5 working days. For specific models, please contact us to check the stock. In the end, the actual
consultation shall prevail. We will do our best to deliver as soon as possible.
Q3.What's your warranty terms?
A: We supply 12 months warranty time.
Q4.How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any
shipments that you wanted.
Q5.Can I get some samples?
A:Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6.What are your core strengths?
A:First-hand supply, Original and new products with the favorable price and perfect after-sales service.
