Scalable PoE+ Extreme Network AVB Switch 16531 X440-G2-12p-10GE4
Product Details:
| Brand Name: | Extreme |
| Model Number: | 16531 X440-G2-12p-10GE4 |
| Document: | x440-g2-data-sheet.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | Stock |
|---|---|---|---|
| Warranty Time: | 1 Year | Lead Time: | According To Stock |
| Maximum 10/100/1000 Base-T Ports: | 12 | Maximum Active 1Gb SFP Ports: | 4 |
| Maximum 10Gb SFP+ Ports: | 4 Via License | Frame Forwarding Rate: | 77.4 MPPS |
| Highlight: | Extreme Network AVB Switch 16531 X440,Scalable Extreme Network AVB Switch,ODM extreme 12 port switch |
||
Product Description

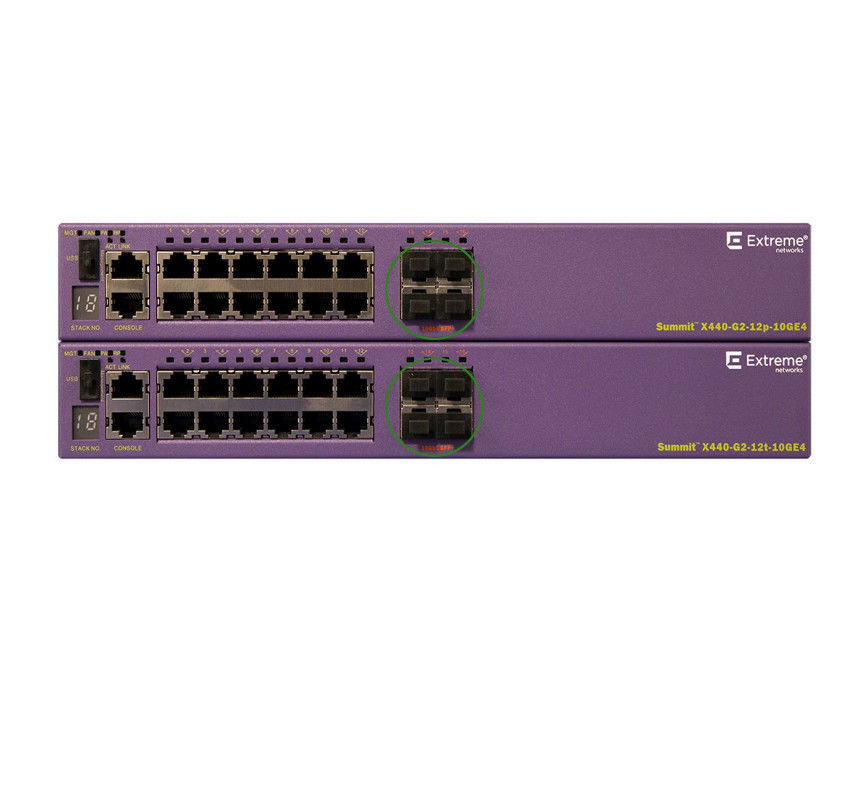

Extreme Networks X440-G2-12p-10GE4 | 12-Port Gigabit PoE+ Ethernet Switch
The Extreme Networks X440-G2-12p-10GE4 is a compact yet powerful PoE+ switch designed for space-constrained network environments. This efficient switch features 12 x 10/100/1000BASE-T PoE+ ports, 4 x 1GbE SFP ports upgradeable to 10GbE via software license, and comprehensive Layer 2/3 capabilities. Built on the robust ExtremeXOS operating system, it offers advanced features including PoE+ support, SummitStack-V stacking, and cloud management via ExtremeCloud™, making it ideal for small to medium deployments.
Key Features
- 12 x Gigabit Ethernet RJ-45 PoE+ ports + 4 x SFP uplink ports (upgradable to 10GbE)
- 200W total PoE budget with support for IEEE 802.3af/at devices
- Compact 1RU form factor ideal for space-constrained environments
- ExtremeXOS OS with advanced security and management features
- Support for SummitStack-V technology (up to 8 switches)
- Role-based policy enforcement and cloud management via ExtremeCloud™
Technology & Standards

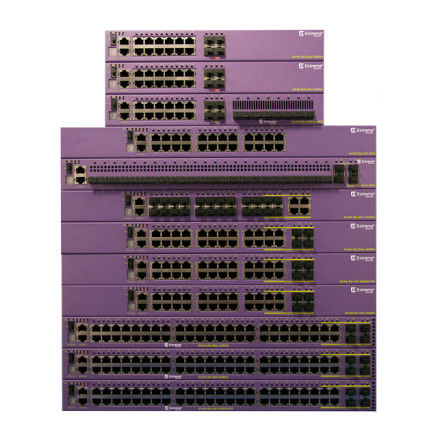

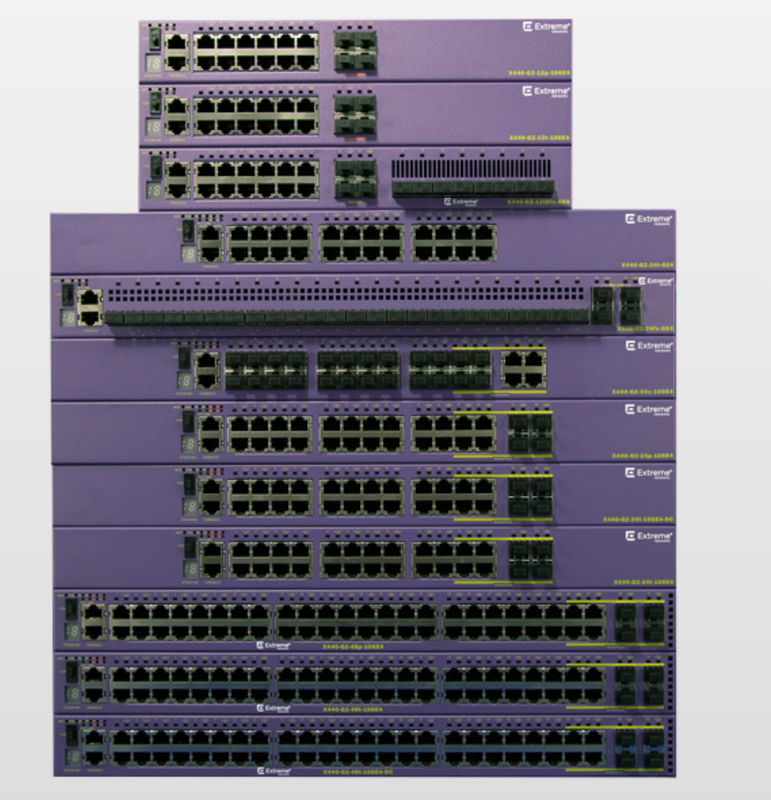

The X440-G2 series switches support a comprehensive range of IEEE standards including 802.3ab (1000BASE-T), 802.3z (1000BASE-X), 802.3ae (10GBASE-X), 802.3at (PoE+), and 802.3az (Energy Efficient Ethernet). These advanced switches also feature sophisticated security protocols, QoS mechanisms, and support for Audio Video Bridging (AVB) on select models, making them ideal for converged network environments.
How It Works
The X440-G2-12p-10GE4 operates at both Layer 2 and Layer 3, providing advanced routing, switching, and policy-based traffic management. It utilizes hardware-based forwarding engines to deliver low-latency performance with less than 4 microseconds latency for 64-byte packets. The switch supports advanced features like granular bandwidth control (8 Kbps increments), 8 QoS egress queues per port, and comprehensive ACL support for precise traffic management. The integrated PoE+ controller intelligently manages power allocation to connected devices.
Applications
Ideal for small to medium business environments, retail locations, branch offices, and classrooms. Perfect for powering wireless access points, IP phones, security cameras, and other PoE-enabled devices in space-constrained environments. The compact form factor makes it suitable for wall-mounted installations, small network racks, and locations where physical space is limited but PoE capability is required.
Specifications
| Attribute | Value |
|---|---|
| Ports | 12 x 10/100/1000BASE-T PoE+, 4 x 1GbE SFP (upgradable to 10GbE) |
| PoE Budget | 200W (internal), 200W (with external RPS) |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.4 Mpps |
| Power Consumption | 21W (min) - 264W (max with full PoE load) |
| Dimensions | 1RU, 12.01" W x 10.28" D x 1.73" H |
| Weight | 6.66 lb (3.02 kg) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Stacking | SummitStack-V (up to 8 units) |
| MAC Address Table | 16,000 entries |
| Packet Buffer | 1.5MB |
Advantages
- Compact form factor ideal for space-constrained environments while maintaining full feature set
- 200W PoE budget supports multiple high-power devices including 802.11ac/ax access points
- Software-upgradable 10GbE ports provide investment protection and future scalability
- Advanced security features including ACLs, role-based policies, and threat detection
- Energy-efficient design with EEE and variable-speed fans reduces operational costs
- Compatible with ExtremeCloud™ for centralized cloud management of both wired and wireless networks
- SummitStack-V technology allows creating virtual chassis of up to 8 switches
- Fanless operation in low-power scenarios for silent operation
Service & Support
All Extreme Networks switches come with a limited lifetime warranty. We offer 24/7 technical support, zero-touch provisioning, and global logistics support. Same-day shipping available for in-stock items. Our professional technical team provides comprehensive installation guidance and troubleshooting support for PoE deployments and network integration.
FAQ
Q: What is the maximum PoE power available per port?
A: Each port supports up to 30W of PoE+ power, compliant with IEEE 802.3at standard.
Q: Can the SFP ports be upgraded to 10GbE on this model?
A: Yes, the four SFP ports can be upgraded to 10GbE with a software license (Dual or Quad 10GbE upgrade).
Q: How many wireless access points can this switch power?
A: Depending on the power requirements of the APs, typically 6-8 standard 802.11ac/ax access points.
Q: What is the maximum power consumption with full PoE load?
A: The maximum power consumption is 264 watts with all ports delivering PoE power at maximum capacity.
Q: Does this switch support redundant power supplies?
A: Yes, it supports external redundant power supplies (RPS) for increased reliability.
Precautions
- Ensure proper ventilation and airflow to prevent overheating, especially when utilizing full PoE capacity.
- Calculate total power requirements for all connected PoE devices to ensure adequate power budget.
- Use only certified SFP/SFP+ modules from Extreme Networks for compatibility and warranty coverage.
- Follow local electrical and EMC regulations during installation, particularly for high-power devices.
- Consider environmental factors when deploying in non-temperature-controlled environments.
- When using stacking functionality, ensure all switches in the stack are running the same version of ExtremeXOS.
- Be mindful of the 200W total power budget when connecting multiple high-power devices.
