QSFP+ AOC Ethernet Cable Qsfp Mellanox MC220731V-015 IB FDR Up VPI To 56Gb/S

QSFP+ AOC Ethernet Cable Qsfp Mellanox MC220731V-015 IB FDR Up VPI To 56Gb/S

QSFP+ aoc ethernet cable

aoc ethernet cable MC220731V-015

qsfp mellanox MC220731V-015

Brand Name:


Model Number:

MC220731V - 015


Request A Quote
Product Details
Products Status:
One Year
New And Original
Lead Time:
According To Stock
InfiniBand & Ether
Supply Voltage:
Data Input Voltage:
Control Input Voltage:
Storage Temperature:
Product Description

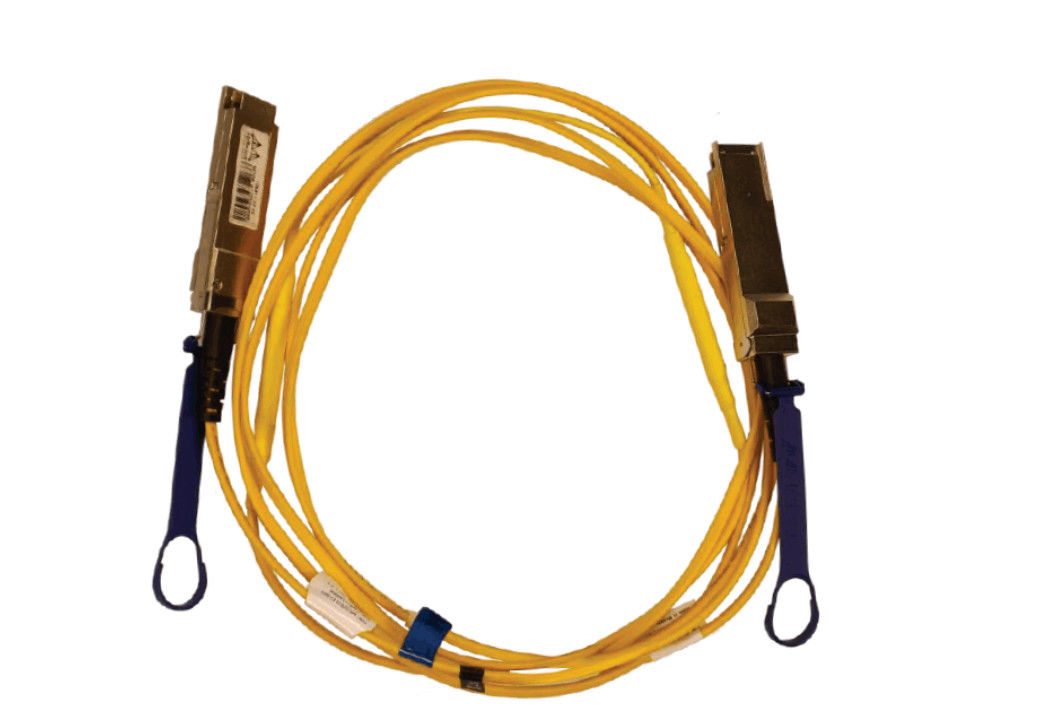

56Gb/s QSFP+ Active Optical Cable

Mellanox® QSFP+ Active Optical Cable (AOC) contains four fiber optic transceivers per end, each operating at data rates of up to 14.0625Gb/s. This integrated cable solution provides reliable transport for aggregate data rates of up to 56Gb/s Virtual Port Interconnect (VPI). This SFF-8685 compliant cable can be used for either Ethernet or InfiniBand link protocols. Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.


QSFP+ AOC Ethernet Cable Qsfp Mellanox MC220731V-015 IB FDR Up VPI To 56Gb/S 0




– Up to 56Gb/s data rate
– Available in 200m and 300m
– Programmable Rx output
– 1W power consumption at low Rx
output amplitude
– SFF-8685 compliant
– Operating case temperature of
– 3.3V power supply
– BER better than 1E-15
– Hot pluggable
– Class 1 laser safety
– Standard single-mode ribbon fiber
– RoHS compliant


Parameter Minimum Maximum Units
Supply voltage 0 3.6 V
Data input voltage -0.5 Vcc+0.3 V
Control input voltage -0.5 Vcc+0.3 V
Storage temperature -40 85 °C


QSFP+ AOC Ethernet Cable Qsfp Mellanox MC220731V-015 IB FDR Up VPI To 56Gb/S 1

NVIDIA® LinkX® Optics AOC cables are the lowest-cost way to create high-speed 25G–400G optical links in Ethernet switching networks and forNVIDIA GPU-based, artificial intelligence end-to-end systems. AOCs are most often used for creating 3-30m short switch-to-switch or switch-to-GPU links. Designed and manufactured by LinkX Optics, the largest and longest-running AOC manufacturer in the industry, the cables are extensively tested in live GPU and switching systems and used in NVIDIA-Certified Systems™.


Low Bit-Error-Rate (BER) Optical Solutions
Based on 850nm vertical-cavity, surface-emitting lasers (VCSELs) and multi-mode fibers, the optics are completely contained inside the cable, which—without multi-fiber push-on (MPO) optical connectors to clean, scratch, or break—dramatically increases reliability and lowers maintenance costs.


LinkX AOC cables are available in small form-factor pluggable (SFP) and quad small form-factor pluggable (QSFP) and in 10 and 25G non-return-to-zero (NRZ), and 50G-4-level pulse-amplitude-modulation (PAM4) line rates. With 100 percent factory testing in end-to-end configurations, all LinkX AOC cables offer extremely low BER compared to industry standards and competitors. This improves system performance and reliability and ensures optimal signal integrity with the best end-to-end performance.


QSFP+ AOC Ethernet Cable Qsfp Mellanox MC220731V-015 IB FDR Up VPI To 56Gb/S 2
QSFP+ AOC Ethernet Cable Qsfp Mellanox MC220731V-015 IB FDR Up VPI To 56Gb/S 3
