100g HDR Infiniband Mellanox 100gb Nic Network Interface QSFP56 MCX653106A-ECAT
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCX653106A-ECAT |
| Document: | connectx-6-infiniband.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Products Status: | Stock | Application: | Server |
|---|---|---|---|
| Technology: | InfiniBand | Transmission Rate: | 100GbE |
| Type: | Wireless | Kind: | External |
| Interface Type: | Infiniband | Wifi Adapte: | Wireless |
| Connector Type: | QSFP56 | Ports: | Dual |
| Highlight: | HDR Infiniband mellanox 100gb nic,QSFP56 mellanox 100gb nic,HDR Infiniband nic network interface |
||
Product Description

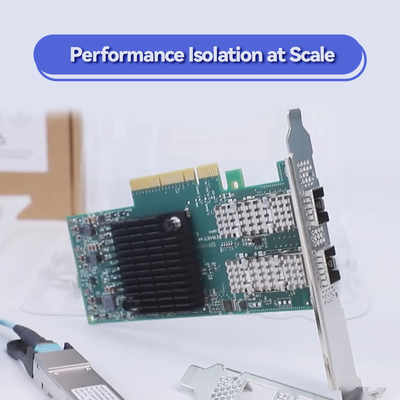

NVIDIA ConnectX-6 MCX653106A-ECAT InfiniBand Network Interface Card
Premium Performance Networking Solution
The NVIDIA ConnectX-6 MCX653106A-ECAT represents a breakthrough in network interface card technology, delivering exceptional 200Gb/s bandwidth per port through advanced InfiniBand architecture. This cutting-edge NIC card incorporates sophisticated in-network computing capabilities that fundamentally transform data center performance by offloading critical processing tasks from host CPUs. Engineered for the most demanding computational environments, this ConnectX-6 adapter provides unprecedented throughput, ultra-low latency, and enhanced security features that make it ideal for next-generation data centers, artificial intelligence infrastructure, and high-performance computing clusters.
Key Features
High-Speed Connectivity
Dual-port 200Gb/s InfiniBand and Ethernet connectivity with extremely low latency and high message rate
Advanced Offload Technology
Hardware-accelerated RDMA, NVMe over Fabrics, and encryption processing
Enhanced Security
Block-level XTS-AES 256/512-bit hardware encryption with FIPS compliance
Virtualization Ready
SR-IOV support with up to 1,000 virtual functions for multi-tenant environments
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | MCX653106A-ECAT |
| Interface Type | Dual-port QSFP56 |
| Data Rate | 200 Gb/s per port |
| Host Interface | PCIe 4.0 x16 |
| Protocol Support | InfiniBand HDR, Ethernet |
| RDMA Technology | RoCE v2, InfiniBand RDMA |
| Security | XTS-AES 256/512-bit encryption |
| Virtualization | SR-IOV (1000 VFs) |
| Form Factor | Standard PCIe |
| OS Support | Linux, Windows, VMware |
Applications
- ✓ High-Performance Computing Clusters
- ✓ Artificial Intelligence & Machine Learning
- ✓ Cloud Data Centers & Hyperscale Environments
- ✓ Big Data Analytics & Storage Networks
- ✓ Financial Services & High-Frequency Trading
- ✓ Virtualized Infrastructure & NFV
Frequently Asked Questions
What systems are compatible with this network card?
The ConnectX-6 NIC card is compatible with servers featuring PCIe 3.0 or 4.0 x16 slots and supports major operating systems including Linux, Windows Server, and VMware ESXi.
Does this adapter support both InfiniBand and Ethernet?
Yes, this versatile network card supports both InfiniBand and Ethernet protocols, providing flexibility for diverse infrastructure requirements.
What are the advantages of hardware encryption?
The integrated XTS-AES encryption engine provides line-rate security without impacting performance, ensuring data protection with zero throughput penalty.
How does this NIC card benefit AI workloads?
The ConnectX-6 network card accelerates AI training by providing high-bandwidth, low-latency connectivity between GPUs and storage systems, reducing training times significantly.
