NVIDIA Quantum-2 MQM9790-NS2F NDR Switch | 64x 400Gb/s, P2C Airflow, Externally Managed
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MQM9790-NS2F(920-9B210-00FN-0D0) |
| Document: | MQM9700 series.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Application: | Server | Condition: | New And Original |
|---|---|---|---|
| Aggregate Bandwidth: | 51.2 Tb/s Bidirectional | Management: | MLNX-OS With CLI, WebUI, SNMP, JSON Support |
| Name: | MQM9790-NS2F InfiniBand Mellanox Network Switch Scaling Out Data Centers With NDR 400G InfiniBand Smart Switches | Keyword: | Mellanox 400g Switch |
| Highlight: | NVIDIA Quantum-2 NDR switch,400Gb/s network switch,externally managed Nvidia switch |
||
Product Description
NVIDIA Quantum-2 MQM9790-NS2F NDR Switch

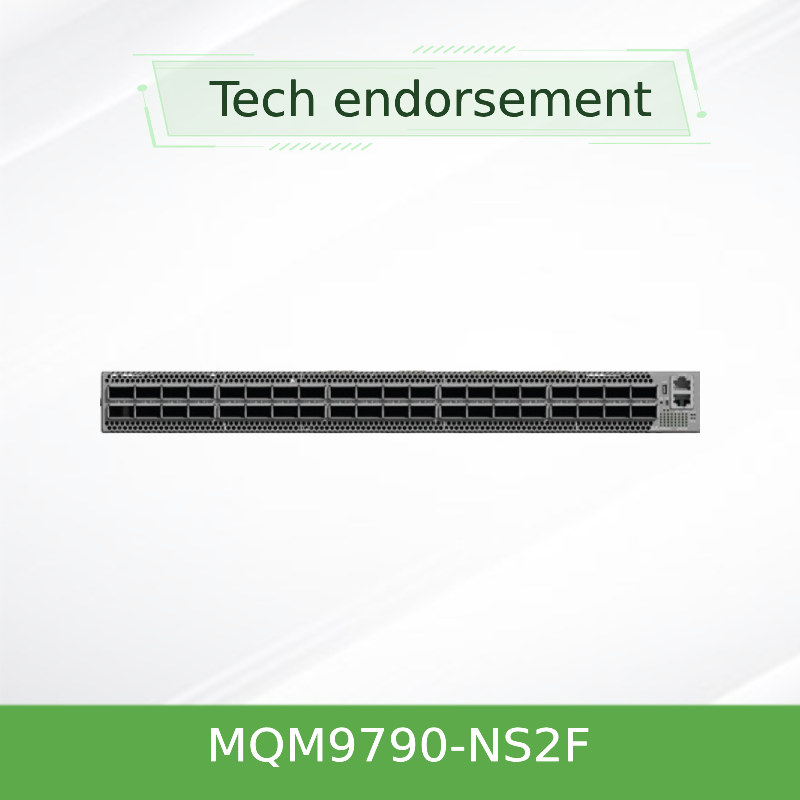

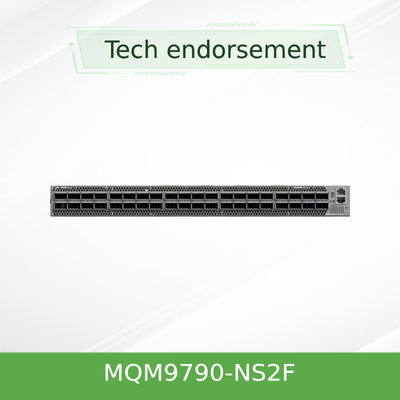

A 1U externally managed NDR InfiniBand switch delivering 64 ports of 400Gb/s InfiniBand over 32 OSFP connectors with 51.2 Tb/s aggregated bidirectional throughput and P2C airflow.
Product Overview
The NVIDIA Quantum-2 based QM9790-NS2F is a 1U fixed-configuration InfiniBand switch designed for extreme-scale HPC and AI systems. It provides 64 ports of NDR 400Gb/s InfiniBand in a standard 1U chassis, using 32 octal small form-factor pluggable (OSFP) connectors with an aggregated bidirectional throughput of 51.2 Tb/s and more than 66.5 billion packets per second (BPPS) capacity.

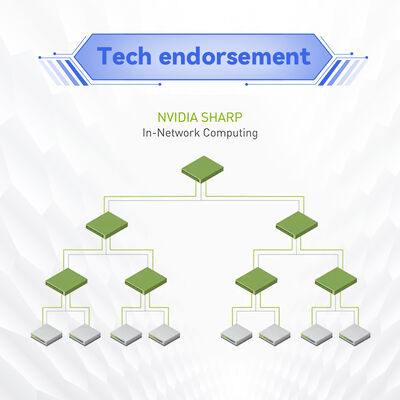

This externally managed variant is designed to work with the NVIDIA Unified Fabric Manager (UFM) platform and supports RDMA, adaptive routing, and NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol (SHARP), including third-generation SHARPv3.
Key Features
- 64 ports of 400Gb/s InfiniBand over 32 OSFP connectors, non-blocking
- 51.2 Tb/s aggregate bidirectional throughput with more than 66.5 BPPS capacity
- Externally managed design for use with NVIDIA UFM feature sets
- P2C forward airflow for compatibility with standard front-to-rear rack cooling
- Port-split technology support for double-density radix at 200Gb/s, up to 128 ports
- SHARPv3 in-network computing with up to 32X higher AI acceleration power
- Self-healing network capabilities, QoS, enhanced VL mapping, and congestion control
- 1+1 redundant hot-swappable power supplies with 200-240Vac input

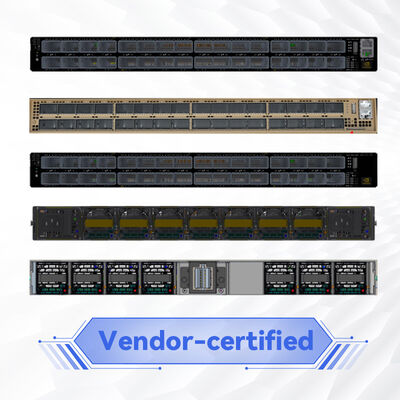

- Hot-swappable fan unit with front-to-rear or rear-to-front cooling options

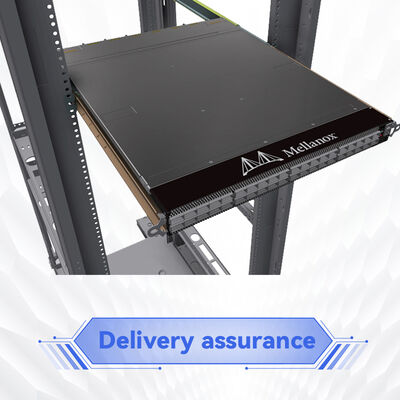

- 1U rack mount with compact depth of 26.0 in (660.4 mm)
- Backwards compatible with previous InfiniBand generations
Technical Specifications
| Feature | Value |
|---|---|
| Orderable Part Number | MQM9790-NS2F |
| Product Series | NVIDIA Quantum-2 QM9700 Series |
| Management Type | Externally managed (for NVIDIA UFM) |
| Airflow | P2C (power-to-connector, forward) |
| Performance | 400Gb/s per port |
| Switch Radix | 64 400Gb/s non-blocking ports |
| Aggregate Data Throughput | Up to 51.2 Tb/s |
| Packet Capacity | More than 66.5 billion packets per second (BPPS) |

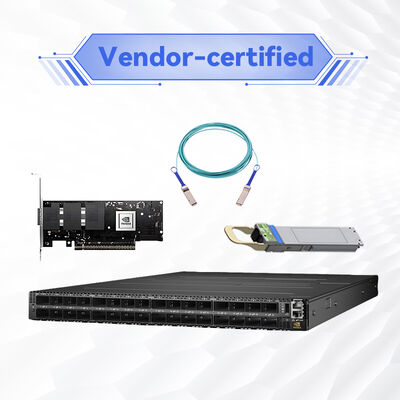

| Connectors and Cabling | 32 OSFP connectors; passive/active copper or active fiber cable; optical module |
| Power Supply | 1+1 redundant hot-swappable; 200-240Vac input; 80 Gold+ and ENERGY STAR certified |
| System Dimensions | Height: 1.7 in (43.6 mm); Width: 17.0 in (438 mm); Depth: 26.0 in (660.4 mm) |
| Warranty | 1 year |
Selection Guide
| Orderable Part Number | Ports | Management | Airflow |
|---|---|---|---|
| MQM9700-NS2F | 64 ports 400Gb/s, 32 OSFP | Managed | P2C (forward) |
| MQM9700-NS2R | 64 ports 400Gb/s, 32 OSFP | Managed | C2P (reverse) |
| MQM9790-NS2F | 64 ports 400Gb/s, 32 OSFP | Unmanaged | P2C (forward) |
| MQM9790-NS2R | 64 ports 400Gb/s, 32 OSFP | Unmanaged | C2P (reverse) |
Compatibility
The QM9790-NS2F supports NDR 400Gb/s InfiniBand and is backwards compatible with previous InfiniBand generations. It uses 32 OSFP connectors and supports passive or active copper cable, active fiber cable, and optical modules. The system runs MLNX-OS software and is intended for use with the NVIDIA Unified Fabric Manager (UFM) platform.
Service & Support
Hong Kong Starsurge Group Co., Limited provides network hardware, IT services, and system integration solutions worldwide. We support pre-sales specification review, configuration matching, and order coordination with multilingual communication and global delivery.
The QM9790-NS2F ships with a 1-year warranty. Please confirm exact support scope and service options with your sales representative.
Request a Quote
Tell us your required port configuration, airflow direction, cable and transceiver type, and destination region. Our team will confirm availability, lead time, and compatible accessories.
