NVIDIA Quantum-2 QM9790-NS2R 400Gb/s InfiniBand Switch 64-Port 1U NDR Switch
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MQM9790-NS2R(920-9B210-00RN-0D0) |
| Document: | MQM9700 series.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MQM9790-NS2R | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | 48 | Function: | Lacp, Stackable, Vlan Support |
| Technology: | Infiniband | Specification: | Without Management |
| Trademark: | Mellanox | Origin: | India / Israel / China |
| Highlight: | NVIDIA Quantum-2 400Gb/s InfiniBand Switch,64-Port NDR InfiniBand Switch,1U Nvidia Network Switch |
||
Product Description

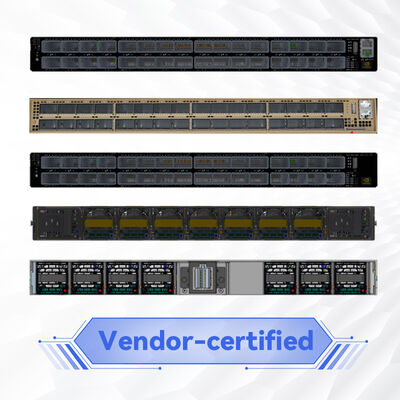

NVIDIA Quantum-2 QM9790-NS2R 400Gb/s InfiniBand Switch
A 1U externally managed NDR InfiniBand switch built on the NVIDIA Quantum-2 switch platform. It delivers 64 ports of 400Gb/s InfiniBand over 32 OSFP connectors, with an aggregated bidirectional throughput of 51.2 Tb/s and C2P (connector-to-power) airflow.
Product Overview
The NVIDIA Quantum-2 based QM9790-NS2R is a 1U fixed-configuration InfiniBand switch designed for extreme-scale HPC and AI systems. It provides 64 ports of NDR 400Gb/s InfiniBand in a standard 1U chassis, using 32 octal small form-factor pluggable (OSFP) connectors. A single switch carries an aggregated bidirectional throughput of 51.2 Tb/s and more than 66.5 billion packets per second (BPPS) capacity.
The QM9790 is the externally managed variant in the Quantum-2 QM9700 series. It is designed to work with the NVIDIA Unified Fabric Manager (UFM) platform, allowing data center operators to provision, monitor, manage, and troubleshoot the modern data center fabric. This model uses connector-to-power (C2P) airflow and is identified by the orderable part number MQM9790-NS2R.
Key Features
- 64 ports of 400Gb/s InfiniBand over 32 OSFP connectors, non-blocking
- 51.2 Tb/s aggregate bidirectional throughput with more than 66.5 BPPS capacity
- Externally managed design for use with NVIDIA UFM feature sets
- Port-split technology support for double-density radix at 200Gb/s, up to 128 ports
- SHARPv3 in-network computing with up to 32X higher AI acceleration power compared to the previous generation
- Self-healing network capabilities, QoS, enhanced VL mapping, and congestion control
- 1+1 redundant hot-swappable power supplies with 200-240Vac input
- Hot-swappable fan unit with front-to-rear or rear-to-front cooling options
- 1U rack mount with a compact depth of 26.0 in (660.4 mm)
- Backwards compatible with previous InfiniBand generations and broad software ecosystem support
Technology
NVIDIA Quantum-2 Switch Platform
The QM9790-NS2R is built on the NVIDIA Quantum-2 switch platform, the industry-leading switch platform in power and density for NDR 400Gb/s InfiniBand throughput. It is designed for AI developers and scientific researchers working on extreme-scale systems.
NDR 400Gb/s InfiniBand
NDR is an InfiniBand data rate in which each lane of a 4X port runs at 100Gb/s with 64b/66b encoding, resulting in an effective bandwidth of 400Gb/s per port. The QM9790 supports 400Gb/s per port and can use port-split technology to provide 200Gb/s data speeds with double-density radix.
SHARPv3 and In-Network Computing

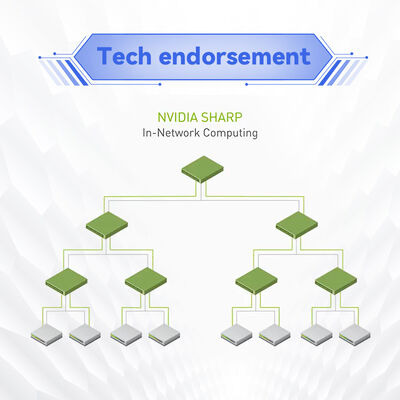

The QM9700 series extends NVIDIA In-Network Computing technologies and introduces SHARPv3. SHARPv3 creates virtually unlimited scalability for small and large data aggregation through the network, boosting application performance of complex computations while data moves through the data center network.
Externally Managed Architecture
Unlike the internally managed QM9700, the QM9790 is externally managed. It can utilize the advanced NVIDIA Unified Fabric Manager (UFM) feature sets to empower data center operators to efficiently provision, monitor, manage, preventatively troubleshoot, and maintain the modern data center fabric.
Typical Deployments
- Small to medium-sized deployments: Scale with a two-level Fat Tree topology while reducing power, latency, and space requirements
- Top-of-rack (TOR) switching: Up to 128 ports of 200Gb/s using port-split technology, delivering a dense TOR switch option
- HPC and AI clusters: 400Gb/s InfiniBand connectivity for high-resolution simulations, extreme-size datasets, and highly parallelized algorithms
- UFM-managed fabrics: Externally managed architecture for data center operators using NVIDIA UFM
- Multi-topology fabrics: Fat Tree, SlimFly, DragonFly+, multi-dimensional Torus, and more
Specifications
| Feature | Value |
|---|---|
| Orderable Part Number | MQM9790-NS2R |
| Product Series | NVIDIA Quantum-2 QM9700 Series |
| Management Type | Externally managed (for NVIDIA UFM) |
| Airflow | C2P (connector-to-power, reverse) |
| Performance | 400Gb/s per port |
| Switch Radix | 64 400Gb/s non-blocking ports |
| Aggregate Data Throughput | Up to 51.2 Tb/s |
| Packet Capacity | More than 66.5 billion packets per second (BPPS) |
| Connectors and Cabling | 32 octal small form-factor pluggable (OSFP) connectors; passive or active copper or active fiber cable; optical module |
| Power Supply | 1+1 redundant and hot-swappable; input range 200-240Vac; 80 Gold+ and ENERGY STAR certified |
| Cooling | Front-to-rear or rear-to-front; hot-swappable fan unit |
| Management Ports | 1x USB 3.0, 1x USB for I2C channel, 1x RJ45, 1x RJ45 (UART) |
| CPU | x86 Coffee Lake i3 |
| System Memory | Single 8GB, 2,666 MT/s, DDR4 SO-DIMM |
| Storage | M.2 SSD SATA 16GB 2242 FF |
| Software | MLNX-OS |
| System Weight | 14.5 kg |
| System Dimensions | Height: 1.7 in (43.6 mm); Width: 17.0 in (438 mm); Depth: 26.0 in (660.4 mm) |
| Rack Mount | 1U rack mount |
| Operating Temperature | 0°C to 40°C |
| Non-Operating Temperature | -40°C to 70°C |
| Humidity | Operating: 10% to 85% non-condensing; Non-operating: 10% to 90% non-condensing |
| Altitude | Up to 3050 m |
| EMC (Emissions) | CE, FCC, VCCI, ICES, and RCM |
| Product Safety | RoHS, CB, cTUVus, CE, and CU |
| Warranty | 1 year |
Compatibility Matrix
| Item | Status | Notes |
|---|---|---|
| NDR 400Gb/s | Supported | Native 400Gb/s per port |
| 200Gb/s port-split | Supported | Up to 128 ports of 200Gb/s |
| Previous InfiniBand generations | Backwards compatible | Confirm exact rates and cable types before ordering |
| OSFP cables and modules | Supported | Passive or active copper, active fiber, optical module |
| NVIDIA UFM | Supported | Externally managed architecture |
| MLNX-OS | Supported | Switch software package |
Frequently Asked Questions
What is the difference between the QM9700 and the QM9790?
The QM9700 is the internally managed variant, featuring an on-board subnet manager that enables out-of-the-box bring-up for up to 2,000 nodes. The QM9790 is the externally managed variant, designed to utilize the advanced NVIDIA Unified Fabric Manager (UFM) feature sets. Both deliver 64 ports of 400Gb/s InfiniBand over 32 OSFP connectors.
What does the "R" suffix in MQM9790-NS2R indicate?
The "R" suffix indicates connector-to-power (C2P) airflow, also described as reverse airflow. The "F" suffix in MQM9790-NS2F indicates power-to-connector (P2C) airflow, also described as forward airflow.
How many ports does the QM9790-NS2R support?
The switch provides 64 ports of 400Gb/s InfiniBand over 32 OSFP connectors. Using NVIDIA port-split technology, it can support up to 128 ports of 200Gb/s for double-density radix.
What is the aggregate throughput of the QM9790-NS2R?
A single switch carries an aggregated bidirectional throughput of 51.2 Tb/s, with a capacity of more than 66.5 billion packets per second (BPPS).
What software does the QM9790-NS2R run?
The system runs MLNX-OS. As an externally managed switch, it is designed to work with NVIDIA UFM for fabric provisioning, monitoring, management, and troubleshooting.
What is the warranty period?
The QM9790-NS2R ships with a 1-year warranty. Extended support options may be available. Please confirm with your sales representative before ordering.

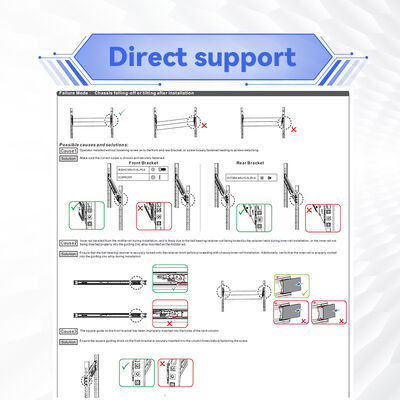

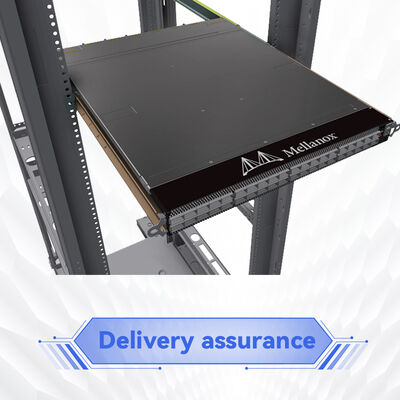

Precautions
- The switch system must be installed in a horizontal position. Do not install the system vertically.
- Use enough people or a mechanical lift to safely lift this product. The system weighs 14.5 kg.
- Do not operate the equipment in an area with an ambient temperature exceeding 40°C. Allow at least 8 cm (3 inches) of clearance around ventilation openings.
- Power supply units have directional air flows. The fan module airflow must coincide with the airflow of all power supply units.
- Disconnect all power supplies to ensure a powered down state inside the switch platform. The PSUs are independent.
- Do not force cables into the OSFP connector with excessive force. Follow NVIDIA cable management guidelines.
- Unused OSFP cages should be closed with thermal caps where applicable.
- Only trained and qualified personnel should install, replace, or service this equipment.
- Disposal of this equipment should be in accordance with all national laws and regulations.
- If the system status LED shows a fault after power on, unplug the system and contact your NVIDIA representative for assistance.
Service & Support
Hong Kong Starsurge Group Co., Limited provides network hardware, IT services, and system integration solutions for customers worldwide. For this product, Starsurge can support pre-sales specification review, configuration matching, and order coordination.
- Product selection and compatibility review before quotation
- Access to NVIDIA documentation for Quantum-2 switch systems
- Support for cable, transceiver, and airflow configuration selection
- Multilingual communication and global delivery coordination
The QM9790-NS2R ships with a 1-year warranty. Please confirm the exact support scope and service options with your sales representative before ordering.
