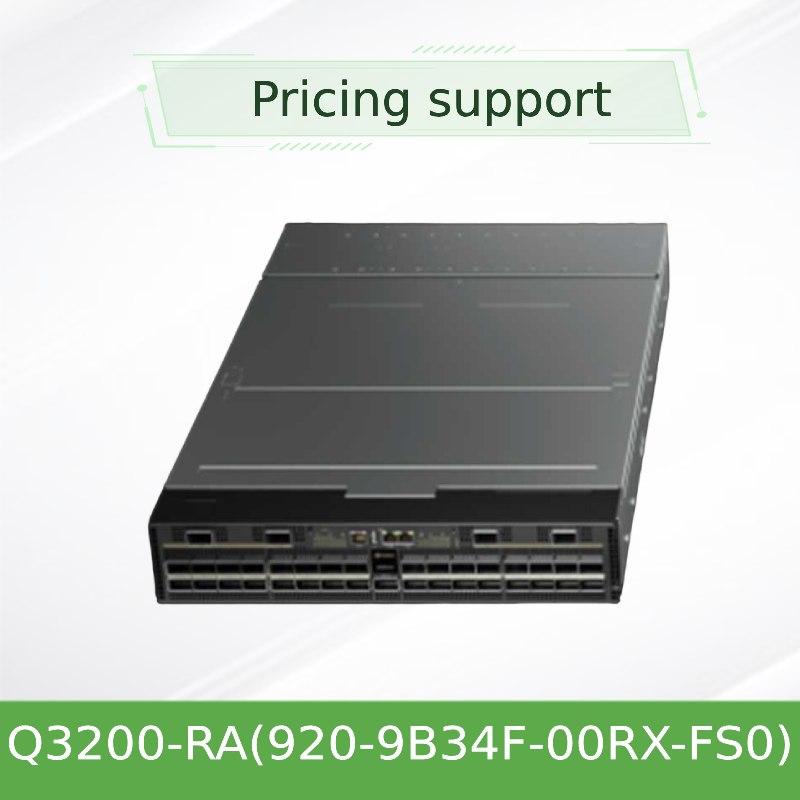

NVIDIA Q3200-RA 800Gb/s InfiniBand Switch
72-Port, 57.6 Tb/s Dual-Switch Chassis for AI Leaf & HPC Fabrics
72 XDR ports over 36 OSFP cages (2 * 36 per system)
57.6 Tb/s total switching capacity (2 * 28.8 Tb/s)
2U space-optimized chassis

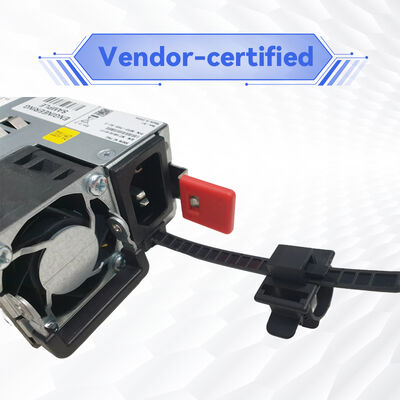

4 * PSU redundant, hot-swappable
Dual ASIC two independent Quantum-3 switches in one chassis
Product Overview
The NVIDIA Q3200-RA is a 2U, dual-system InfiniBand switch platform powered by two independent NVIDIA Quantum-3 ASICs. It delivers 72 XDR ports at 800Gb/s across 36 OSFP cages — with each ASIC driving 36 ports (28.8 Tb/s). This unique architecture makes the Q3200-RA the ideal leaf switch for two-level fat-tree topologies, offering excellent density, power efficiency, and cost savings for AI training, HPC, and enterprise data center fabrics.
Key Features
Dual-System Chassis
Two independent 36-port Quantum-3 switches in a single 2U enclosure
800Gb/s XDR Ports
72 ports over 36 OSFP cages, supporting 400Gb/s (NDR) and 800Gb/s (XDR)
57.6 Tb/s Aggregate
Each switch provides 28.8 Tb/s non-blocking throughput
Redundant & Hot-Swappable
4 power supplies (C2P airflow) and 5 fans with N+1 redundancy
Technology
Quantum-3 ASIC (x2): Each Q3200-RA houses two NVIDIA Quantum-3 switch ASICs, each driving 36 ports at 800Gb/s. The dual-ASIC design allows the chassis to function as two independent switches or be managed as a single logical entity with UFM. Each ASIC supports SHARPv3 for in-network compute acceleration, plus advanced adaptive routing and congestion control.
Typical Deployments
- Leaf in two-level Fat-Tree: Pair with Q3400-RA spines to build cost-effective, high-radix fabrics
- Space-constrained AI clusters: 2U form factor delivers 72 ports with minimal rack footprint
- Mixed-speed environments: Seamlessly interconnect NDR and XDR endpoints with auto-negotiation
- Enterprise data centers: Ideal for manufacturing, finance, and research workloads requiring deterministic low latency
Specifications
| Category | Detail |
|---|---|
| Port density | 72 XDR ports (800Gb/s) over 36 OSFP cages (2 * 36 per switch) |
| Switching capacity | 57.6 Tb/s aggregate (28.8 Tb/s per independent switch) |
| Form factor | 2U rack-mount (3.64" H * 17.24" W * 26.77" D) / 680 mm depth |
| Weight (fully populated) | 23 kg (with 4 PSUs) |
| PSU | 4 * 2000W AC, C2P airflow, 200-240V ~ 50/60Hz |
| Operating temperature | 0°C to 35°C (reverse airflow) |
| Management | NVOS (NVUE), UFM, serial console (RJ45), USB 2.0, dual 1GbE MGT ports |
Compatibility
| Component / Ecosystem | Compatibility | Notes |
|---|---|---|

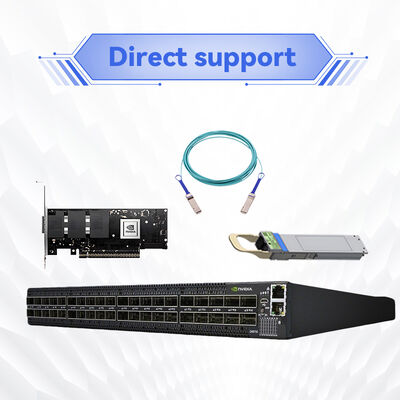

| NICs | ConnectX-8 (XDR), ConnectX-7 (NDR), ConnectX-6 (HDR) | With speed negotiation |
| Optics & cables | OSFP, OSFP-to-OSFP, active/passive copper | Single-mode/multi-mode |
| Management | NVOS (NVUE), UFM, SNMP, REST API | Serial console support |
Selection Guide
| SKU | Description | Airflow |
|---|---|---|
| 920-9B34F-00RX-FS0 | Q3200-RA, 2U, 72 XDR ports (2 * 36), 4 PSU, managed | C2P (connector-to-power) |
| 930-9SKIT-00LO-00C | Tool-less rail kit for 2U Q3200 | — |
| 930-9SPSU-00RA-00A | 2000W AC PSU (C2P) for Quantum-3 | C2P |
Advantages
- 2U density, 72 ports: Half the rack space of equivalent 4U solutions — lower TCO
- Dual ASIC flexibility: Operate as two independent switches or as unified fabric with UFM
- Investment protection: NDR/XDR mixed-speed support protects existing infrastructure
- SHARPv3 acceleration: Reduces AI training time by offloading collective operations
Service & Support
Hong Kong Starsurge Group Co., Limited provides full lifecycle support for NVIDIA Q3200-RA switches including pre-sales consulting, global logistics, technical support, training, and warranty services.
Frequently Asked Questions
What is the difference between Q3200-RA and Q3400-RA?
Q3200-RA is a 2U chassis with two independent switches (72 ports total) — ideal for leaf or smaller fabrics. Q3400-RA is a 4U chassis with 144 ports — ideal for spine roles in larger fabrics.
Can I use NDR optics with the Q3200-RA?
Yes. The ports support NDR (400Gb/s) and XDR (800Gb/s) optics and cables. Use 'connection-mode ndr' in NVOS for NDR links.
