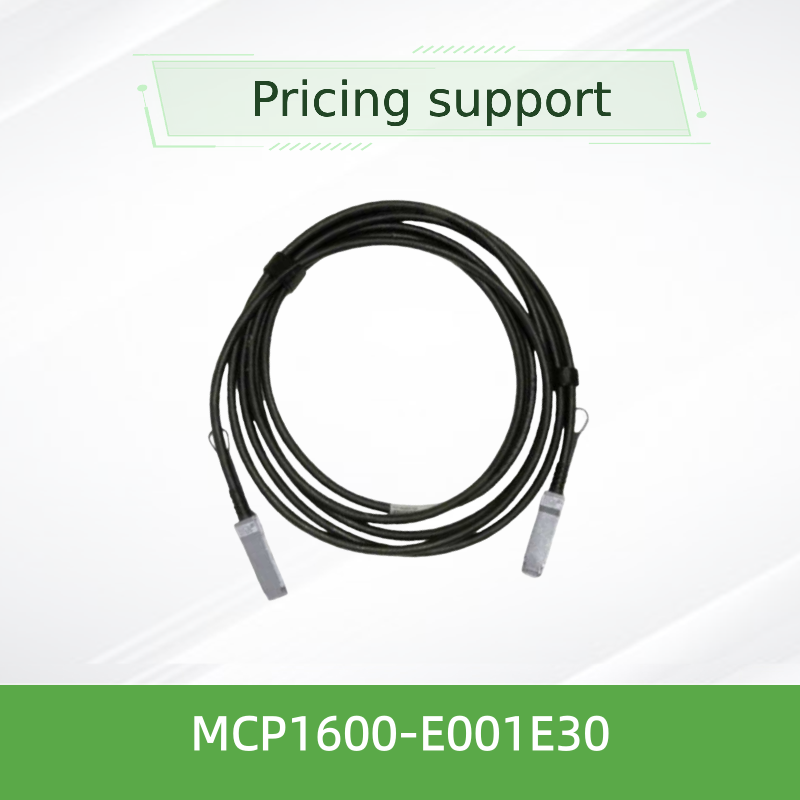

Mellanox MCP1600-E001E30 100Gb/s QSFP28 Passive DAC Cable – 1m, 30AWG, EDR InfiniBand
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCP1600-E001E30 |
| Document: | PB_MCP1600-E0xxEyy_100Gbps_...AC.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 3 Meters |
| Name: | Mellanox DAC Cable MCP1600-E003E26 IB EDR 100Gb/s 4x 25G-NRZ QSFP28 LSZH 3m 26AWG Infiniband Network Cable | Keyword: | Mellanox DAC Cable |
| Highlight: | Mellanox QSFP28 DAC cable 100Gb/s,1m passive DAC cable EDR InfiniBand,30AWG Nvidia cable with warranty |
||
Product Description
Product Overview
The Mellanox MCP1600-E001E30 is a 100Gb/s QSFP28 passive direct attach copper (DAC) cable designed for high-density, low-latency interconnects. It features four high-speed copper pairs operating at 25Gb/s per lane, delivering aggregate 100Gb/s bandwidth. This 1-meter cable uses 30 AWG gauge and is terminated with industry-standard QSFP28 connectors.
Fully compliant with SFF-8665 and SFF-8636 standards, ensuring seamless interoperability with Mellanox switches, adapters, and other QSFP28-enabled systems. The LSZH (Low Smoke Zero Halogen) jacket and RoHS compliance make it suitable for enterprise and green data center deployments.
Key Features
- 100Gb/s aggregate data rate (4 × 25Gb/s)
- QSFP28 form factor, SFF-8665 compliant
- Passive copper – zero power consumption for signal conditioning
- 3.3V single supply voltage (Vcc 3.135–3.465V)
- Operating case temperature 0°C to 70°C
- Bit Error Rate (BER) < 1E-15 with Mellanox systems
- Hot-pluggable, I²C management via SFF-8636
- LSZH jacket, RoHS compliant, lead-free & halogen-free PCB
- Rigorous production testing for out-of-box reliability
- 1-year limited hardware warranty
Technology & Signal Integrity
Mellanox passive copper cables utilize precision twin-ax copper construction with optimized impedance control (100Ω nominal) to minimize signal reflection and crosstalk. Each lane is independently shielded, and the overall cable is jacketed with LSZH material to reduce smoke and toxic emissions in case of fire.
The MCP1600 series is characterized for propagation delay (4.5 ns/m typical) and maintains excellent return loss and insertion loss performance across the 0–70°C operating range. The integrated EEPROM stores cable attributes and product information, enabling host systems to automatically configure parameters for optimal link performance.
Typical Deployments
- High-Performance Computing (HPC): Connect InfiniBand EDR switches to compute nodes, storage systems, and GPU clusters
- Data Center Leaf-Spine: Short reach top-of-rack (ToR) to spine switch interconnects in 100G Ethernet fabrics
- Enterprise Core Networking: Reliable backbone links within or between adjacent racks in enterprise data centers
- Test & Development Labs: Cost-effective, low-power links for prototyping and performance validation
Compatibility
The MCP1600-E001E30 is compatible with any QSFP28/100G port that adheres to SFF-8665 and SFF-8636 standards. It is validated with Mellanox Spectrum™ and Quantum™ switches, ConnectX® adapters, and BlueField® DPUs. It also works with third-party switches and servers equipped with QSFP28 cages, provided the host supports passive copper DACs.
Specifications
| Parameter | Min | Typical | Max | Unit |
|---|---|---|---|---|
| Supply voltage (Vcc) | 3.135 | 3.3 | 3.465 | V |
| Data input voltage | -0.3 | — | 3.6 | V |
| Control input voltage | -0.3 | — | 3.6 | V |
| Power consumption | — | — | 0.1 | W |
| Operating case temperature | 0 | — | 70 | °C |
| Storage temperature | -40 | — | 85 | °C |
| Operating relative humidity | 5 | — | 85 | % |
| Characteristic impedance | 90 | 100 | 110 | Ω |
| Propagation delay (informative) | — | 4.5 | — | ns/m |
Cable gauge: 30 AWG
Cable length: 1 m (±25 mm)
Outer diameter: 7.1 ± 0.35 mm
Minimum bend radius (single): 35.5 mm
Minimum bend radius (repetitive/assembly): 71 mm
Cable length: 1 m (±25 mm)
Outer diameter: 7.1 ± 0.35 mm
Minimum bend radius (single): 35.5 mm
Minimum bend radius (repetitive/assembly): 71 mm
Note: All specifications are based on Mellanox datasheet MCP1600-E0xxEyy. Please confirm before ordering.
Selection Guide (MCP1600 Series)
| Part Number | Length | AWG | Jacket | Description |
|---|---|---|---|---|
| MCP1600-E00AE30 | 0.5m | 30 | LSZH | Black, EDR, 100Gb/s QSFP28 |
| MCP1600-E001E30 | 1.0m | 30 | LSZH | Black, EDR, 100Gb/s QSFP28 (this model) |
| MCP1600-E01AE30 | 1.5m | 30 | LSZH | Black, EDR, 100Gb/s QSFP28 |
| MCP1600-E002E30 | 2.0m | 30 | LSZH | Black, EDR, 100Gb/s QSFP28 |
| MCP1600-E02AE26 | 2.5m | 26 | LSZH | Black, EDR, 100Gb/s QSFP28 |
| MCP1600-E003E26 | 3.0m | 26 | LSZH | Black, EDR, 100Gb/s QSFP28 |
| MCP1600-E004E26 | 4.0m | 26 | LSZH | Black, EDR, 100Gb/s QSFP28 |
| MCP1600-E005E26 | 5.0m | 26 | LSZH | Black, EDR, 100Gb/s QSFP28 |
* All cables are RoHS compliant, with LF/HF PCB and LSZH jacket.
Advantages
- Cost-efficient: Passive design eliminates optical transceivers, reducing total interconnect cost
- Ultra-low power: < 0.1W per link, ideal for power-sensitive data centers
- Zero latency penalty: Direct copper path avoids retiming or signal conversion delays
- Reliable signal integrity: Shielded pairs and precise impedance control ensure BER < 1E-15
- Easy deployment: Hot-pluggable, pre-tested, and automatically recognized by host systems
- Environmental responsibility: LSZH, RoHS, and halogen-free materials support green IT initiatives
Frequently Asked Questions (FAQ)
Q: What is the maximum data rate of MCP1600-E001E30?
A: 100Gb/s (4 lanes × 25Gb/s) – suitable for EDR InfiniBand and 100G Ethernet.
Q: Is this cable compatible with non-Mellanox switches?
A: Yes, any QSFP28 port that complies with SFF-8665 and SFF-8636 can use this passive DAC. However, for guaranteed BER performance, Mellanox recommends Mellanox end-to-end systems.
Q: What is the operating temperature range?
A: 0°C to 70°C case temperature; storage from -40°C to 85°C.
Q: Does this cable require external power?
A: No, it is passive and draws only Vcc for the EEPROM (< 0.1W).
Q: What is the minimum bend radius?
A: Single bend: 35.5mm; repetitive/assembly bend: 71mm (10× outer diameter).
Precautions
- Do not bend the cable beyond the specified minimum bend radius, especially near the connector (assembly bend)
- Avoid pulling or stressing the cable during installation; use appropriate cable management
- Ensure the host port is QSFP28 compatible and supports passive copper DACs
- Store in a dry, temperature-controlled environment within -40°C to 85°C
- Inspect connectors for dirt or damage before insertion; use approved cleaning tools if needed
About Hong Kong Starsurge Group
Hong Kong Starsurge Group Co., Limited is a technology-driven provider of network hardware, IT services, and system integration solutions. Founded in 2008, the company serves customers worldwide with products including network switches, NICs, wireless access points, controllers, cables, and related networking equipment.
Backed by an experienced sales and technical team, Starsurge supports industries such as government, healthcare, manufacturing, education, finance, and enterprise. The company also offers IoT solutions, network management systems, custom software development, multilingual support, and global delivery.
Key Facts
Product: Mellanox MCP1600-E001E30
Type: Passive DAC, QSFP28
Data Rate: 100 Gb/s (4×25G)
Length: 1 m (30 AWG)
Compliance: SFF-8665, SFF-8636
Jacket: LSZH, RoHS
Warranty: 1-year limited
Type: Passive DAC, QSFP28
Data Rate: 100 Gb/s (4×25G)
Length: 1 m (30 AWG)
Compliance: SFF-8665, SFF-8636
Jacket: LSZH, RoHS
Warranty: 1-year limited
Compatibility Matrix
- Mellanox Quantum™ / Spectrum™ switches
- Mellanox ConnectX®-5 / -6 adapters
- BlueField® DPU platforms
- Third-party QSFP28 ports (SFF-8665)
- InfiniBand EDR / 100G Ethernet
Buyer Checklist
- ✓ Confirm required length (1m, 30AWG)
- ✓ Verify host port supports passive copper DAC
- ✓ Check operating temperature range (0–70°C)
- ✓ Ensure LSZH jacket is suitable for your environment
- ✓ Request RMA policy and stock availability
