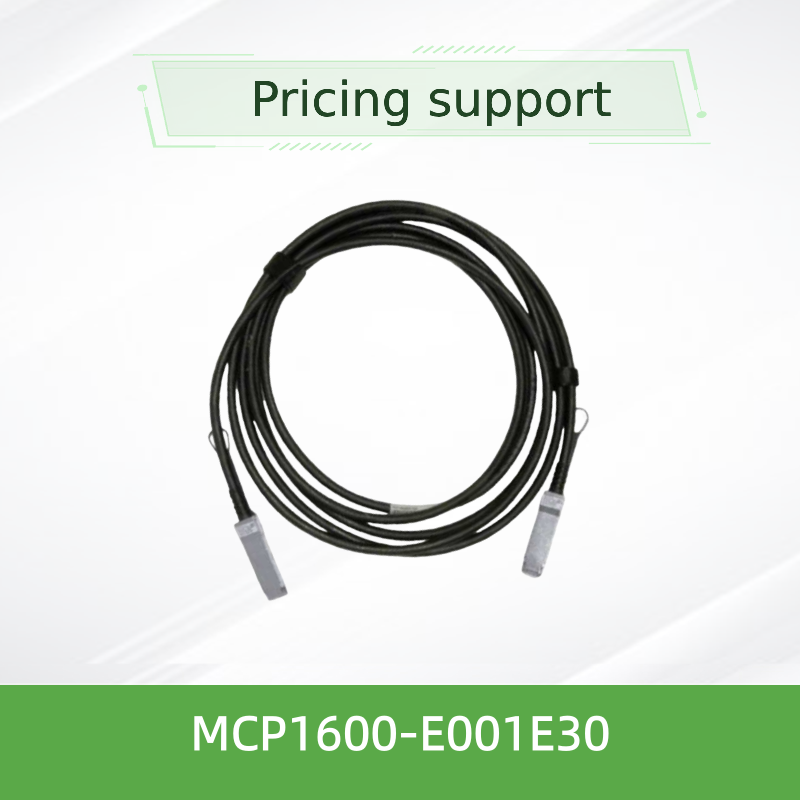

Mellanox MCP1600-E001E3 Passive DAC cable for 100Gb/s InfiniBand EDR & Ethernet 1 meter Low power
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCP1600-E001E30 |
| Document: | PB_MCP1600-E0xxEyy_100Gbps_...AC.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 3 Meters |
| Name: | Mellanox DAC Cable MCP1600-E003E26 IB EDR 100Gb/s 4x 25G-NRZ QSFP28 LSZH 3m 26AWG Infiniband Network Cable | Keyword: | Mellanox DAC Cable |
| Highlight: | Mellanox MCP1600-E001E3 DAC cable,100Gb/s InfiniBand EDR cable,1 meter low power Ethernet cable |
||
Product Description
Mellanox MCP1600-E001E3 Passive DAC Cable
100Gb/s QSFP28 Direct Attach Copper Cable for InfiniBand EDR & Ethernet - 1 Meter Low Power
Product Overview
The Mellanox MCP1600-E001E30 is a high-performance, cost-effective QSFP28 direct attach copper (DAC) cable designed for 100Gb/s InfiniBand EDR and Ethernet applications. It provides a reliable, power-efficient alternative to optical fiber for short-reach interconnects within data centers and high-performance computing (HPC) environments.
This passive copper cable assembly integrates four high-speed copper pairs, each operating at up to 25 Gb/s, to deliver an aggregate data rate of 100 Gb/s. With no active components, it offers the lowest possible latency and near-zero power consumption, making it ideal for top-of-rack (ToR) and adjacent-rack connectivity.
Key Features
- Up to 100 Gb/s aggregate data rate
- SFF-8665 compliant QSFP28 form factor
- Passive design - no active components, zero additional power draw
- Single 3.3 V supply voltage
- Operating case temperature: 0°C to 70°C
- Hot-pluggable for easy installation and replacement
- RoHS compliant and LSZH jacket for safety
- SFF-8636 compliant I²C management interface
Technical Specifications
| Parameter | Value |
|---|---|
| Data Rate | Up to 100Gb/s |
| Connector | QSFP28 to QSFP28 |
| Length | 1.0 m (3.3 ft) |
| AWG | 30 |
| Type | Passive Copper |
| Part Number | MCP1600-E001E30 |
| Manufacturer | NVIDIA / Mellanox |
| Protocol | InfiniBand EDR / 100GbE |
| Power Consumption | ≤ 0.1 W (passive) |
| Temperature Range | 0°C to 70°C |
| Compliance | RoHS, SFF-8665, SFF-8636 |
| Jacket | LSZH (Low Smoke Zero Halogen) |
Detailed Specifications
Absolute Maximum Ratings
| Parameter | Min | Max | Units |
|---|---|---|---|
| Supply voltage | -0.3 | 3.6 | V |
| Data input voltage | -0.3 | 3.6 | V |
| Control input voltage | -0.3 | 3.6 | V |
Operational Specifications
| Parameter | Min | Typ | Max | Units |
|---|---|---|---|---|
| Supply voltage (Vcc) | 3.135 | 3.3 | 3.465 | V |
| Power consumption | -- | -- | 0.1 | W |
| Operating case temperature | 0 | -- | 70 | °C |
| Operating relative humidity | 5 | -- | 85 | % |
Why Choose the MCP1600-E001E30?
Cost-effective - Lower cost than optical transceivers for short-reach links
Power efficient - Consumes < 0.1 W, reduces data center power and cooling costs
Ultra-low latency - Ideal for HPC, AI, and financial trading environments
Reliable & durable - Rigorous testing and LSZH jacket ensure long service life
Plug-and-play - Hot-pluggable QSFP28 connectors with EEPROM for easy integration
Standards-based - SFF-8665, SFF-8636, RoHS compliant for broad interoperability
Compatibility
The MCP1600-E001E30 is fully compliant with industry standards and is interoperable with a wide range of networking equipment:
- Standards: SFF-8665 (QSFP28), SFF-8636 (management interface), IEEE 802.3bj (100GBASE-CR4), InfiniBand EDR
- Compatible with: NVIDIA® / Mellanox® switches, adapters, and systems; also interoperable with other MSA-compliant QSFP28 ports
- EEPROM: Programmed with product information per SFF-8636; vendor name: NVIDIA, OUI: 00-02-C9
Note: For best performance and compatibility, we recommend verifying compatibility with your specific switch or server model before ordering.
Buyer Checklist
Confirm required cable length (1 m for this model)
Verify switch/server supports QSFP28 interfaces
Check if passive DAC is suitable for your distance (≤5 m recommended)
Ensure operating temperature range meets your environment
Confirm vendor compatibility (NVIDIA/Mellanox recommended)
Consider future scalability and port density
