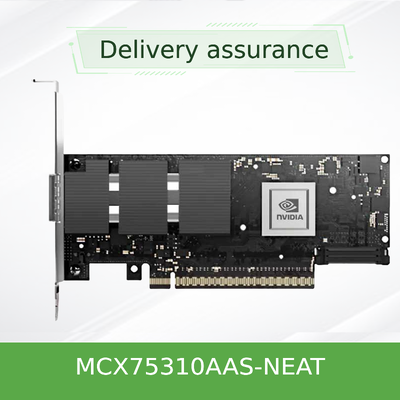

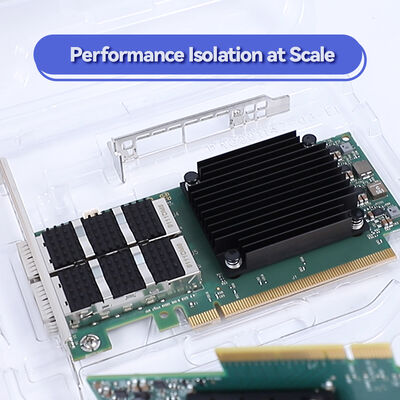

NVIDIA ConnectX-7 MCX75310AAS-NEAT 400Gb/s Dual-Port Adapter
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCX75310AAS-NEAT(900-9X766-003N-SQ0) |
| Document: | Connectx-7 infiniband.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MCX75310AAS-NEAT(900-9X766-003N-SQ0) | Ports: | Single-Port |
|---|---|---|---|
| Technology: | Infiniband | Interface Type: | Osfp56 |
| Specification: | 16.7cm X 6.9cm | Origin: | India / Israel / China |
| Transmission Rate: | 400gbe | Host Interface: | Gen3 X16 |
| Highlight: | NVIDIA ConnectX-7 400Gb/s network adapter,Dual-port ConnectX-7 adapter with warranty,Nvidia MCX75310AAS-NEAT network card |
||
Product Description
NVIDIA ConnectX-7 MCX75310AAS-NEAT 400Gb/s Dual-Port Adapter
The NVIDIA ConnectX‑7 MCX75310AAS‑NEAT is a dual‑port 400Gb/s SmartNIC that supports both InfiniBand (NDR) and Ethernet (400GbE) protocols. It delivers ultra‑low latency, high throughput, and a rich set of hardware‑accelerated networking, storage, and security features. Designed for the most demanding AI, scientific computing, and hyperscale cloud workloads, ConnectX‑7 offloads critical data‑center functions from the CPU, reducing total cost of ownership while increasing performance and security.
Key Specifications
| Max throughput | 400Gb/s (2×200Gb/s or 1×400Gb/s) |
| Host interface | PCIe Gen5 x16 (up to 32 lanes) |
| Form factor | PCIe HHHL (half‑height, half‑length) |
| Security engines | IPsec, TLS, MACsec (AES‑GCM 128/256) |
| In‑Network Computing | SHARP, collective offloads, DCT, XRC |
| Timing | IEEE 1588v2 (Class C), SyncE, PPS |
Key Features
- Dual‑port 400Gb/s (NDR / 400GbE)
- PCIe Gen5 x16 (up to 32 lanes)
- InfiniBand 1.5 & Ethernet (RoCE) support
- In‑line IPsec, TLS, MACsec (AES‑GCM 128/256)
- GPUDirect® RDMA & Storage
- NVIDIA SHARP (Scalable Hierarchical Aggregation)
- ASAP2 SDN acceleration (VXLAN, GENEVE, NVGRE)
- IEEE 1588v2 Class C (12 ns accuracy) & SyncE
- NVMe‑oF, NVMe/TCP, T10‑DIF offloads
- Secure boot with hardware root‑of‑trust
Technology & Acceleration Engines
NVIDIA In‑Network Computing
ConnectX‑7 integrates collective communication offloads (SHARP), rendezvous protocol offload, and on‑board memory to accelerate MPI and deep learning frameworks. Combined with GPUDirect RDMA, data can move directly between GPU memory and the network, bypassing the CPU.
ASAP2 (Accelerated Switch and Packet Processing)
Delivers line‑rate SDN and VNF acceleration with overlay networking (VXLAN, GENEVE, NVGRE), flexible parser, connection tracking, and flow mirroring - all without CPU overhead.
Security Offloads
Hardware engines for IPsec, TLS, and MACsec with AES‑GCM 128/256‑bit keys, plus platform security (secure boot, flash encryption, device attestation).
Precision Timing
Advanced PTP (IEEE 1588v2) with 12 ns accuracy, G.8273.2 Class C, SyncE, and configurable PPS in/out, ideal for 5G, financial trading, and distributed data centers.
Typical Deployments
- AI & Deep Learning - GPU‑accelerated training and inference with GPUDirect RDMA and SHARP
- High‑Performance Computing (HPC) - MPI workloads, scientific simulations, and weather modeling
- Hyperscale Cloud - SDN, network function virtualization (NFV), and overlay networks
- Enterprise Storage - NVMe‑oF, RoCE, and GPUDirect Storage for fast data access
- Financial Services - low‑latency trading with precise PTP timing and MACsec security
Detailed Specifications
| Parameter | Details |
|---|---|
| Product model | MCX75310AAS‑NEAT |
| Network protocols | InfiniBand (NDR/HDR/EDR) * Ethernet (400/200/100/50/25/10GbE) |
| Number of ports | 2 (OSFP) |
| Host interface | PCIe Gen5 (x16) * up to 32 lanes * bifurcation support |
| Form factor | PCIe HHHL (half‑height, half‑length) |
| Security offloads | IPsec, TLS, MACsec (AES‑GCM 128/256) * secure boot * flash encryption |
| Timing & synchronization | IEEE 1588v2 (Class C, 12 ns) * SyncE * PPS in/out |
| Storage offloads | NVMe‑oF, NVMe/TCP, SRP, iSER, NFS over RDMA, T10‑DIF |
| SDN acceleration | ASAP2: VXLAN, GENEVE, NVGRE, L4 firewall, flow mirroring, QoS |
| In‑Network Computing | SHARP, collective offloads, rendezvous offload, on‑board memory |
| Virtualization | SR‑IOV, VirtIO acceleration, Multi‑Host (4 hosts) |
| Management | NC‑SI, MCTP, PLDM (monitor, firmware, FRU), SPDM, SPI flash, JTAG |
| Remote boot | IB boot, iSCSI, UEFI, PXE |
Key Advantages
- Ultra‑low latency - sub‑microsecond latency for HPC and AI workloads
- CPU offload - hardware engines for networking, storage, and security free up CPU cores
- Unified fabric - single adapter for InfiniBand and Ethernet, reducing inventory complexity
- Future‑proof - PCIe Gen5 and 400Gb/s readiness for next‑gen data centers
- Enhanced security - in‑line encryption at line rate with zero performance penalty
- Precision timing - Class C PTP and SyncE for time‑sensitive applications
Frequently Asked Questions
Q: What is the difference between InfiniBand and Ethernet modes on this adapter?
A: The adapter supports both protocols and can be configured via firmware. InfiniBand mode offers RDMA, SHARP, and hardware transport; Ethernet mode supports RoCE, overlay networking, and standard L2/L3 features.
Q: Does it support GPUDirect?
A: Yes, GPUDirect RDMA and GPUDirect Storage are fully supported, enabling direct data movement between GPU and network.
Q: Can I use this adapter in a virtualized environment?
A: Yes, SR‑IOV, VirtIO, and Multi‑Host allow efficient virtualization and container networking.
About Hong Kong Starsurge Group
Hong Kong Starsurge Group Co., Limited is a technology‑driven provider of network hardware, IT services, and system integration solutions. Founded in 2008, we serve customers worldwide with products including network switches, NICs, wireless access points, controllers, cables, and related equipment. With an experienced sales and technical team, Starsurge supports industries such as government, healthcare, manufacturing, education, finance, and enterprise.
Key Facts
400Gb/s dual‑port OSFP
PCIe Gen5 x16 (32 lanes)
InfiniBand NDR & Ethernet 400GbE
In‑line IPsec/TLS/MACsec
GPUDirect RDMA + Storage
SHARP & collective offloads
IEEE 1588v2 Class C (12 ns)
NVMe‑oF, NVMe/TCP offload
ASAP2 SDN acceleration
Secure boot + flash encryption
Want to Know more details about this product
