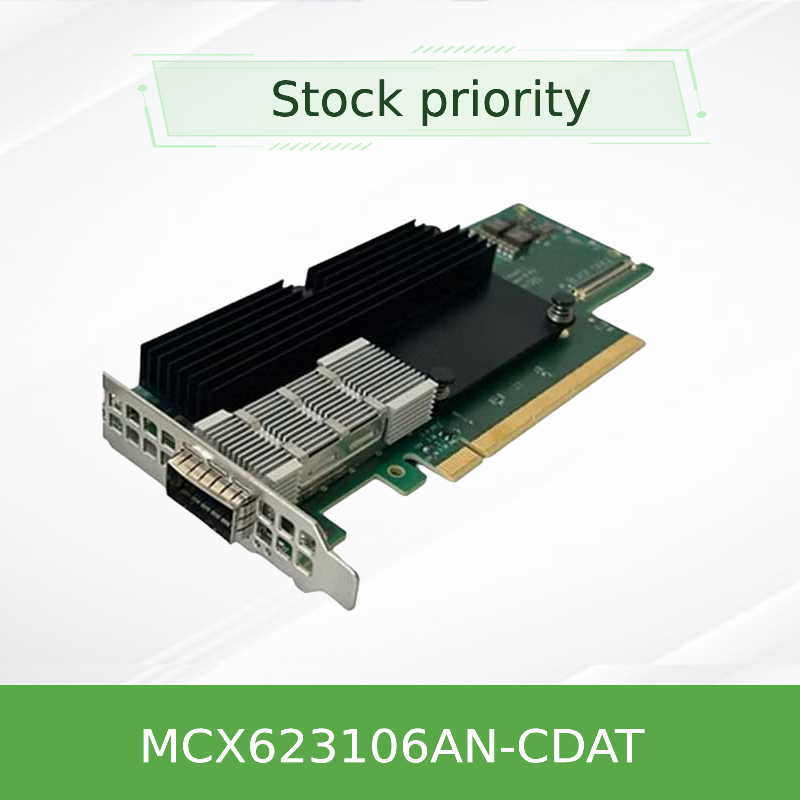

NVIDIA MCX623106AN-CDAT ConnectX-6 Lx 25/50GbE SmartNIC, Dual SFP28, PCIe Gen4

The NVIDIA MCX623106AN-CDAT is a ConnectX-6 Lx Ethernet SmartNIC delivering up to two ports of 25GbE or a single port of 50GbE, with PCIe Gen4 x8 host connectivity. It combines ASAP² SDN acceleration, Zero-Touch RoCE, inline IPsec crypto acceleration, and a hardware root-of-trust for secure, scalable 25GbE deployments in cloud and enterprise data centers.

The NVIDIA ConnectX-6 Lx SmartNIC is engineered for modern enterprise and cloud data centers requiring scalable, secure, and accelerated 25GbE networking. The MCX623106AN-CDAT provides two SFP28 ports supporting 10/25GbE each, or a single 50GbE port, with a maximum total bandwidth of 50Gb/s. Host connectivity is provided through a PCIe Gen 4.0 compatible x8 interface, which is also backward compatible with PCIe Gen3 x8.

The adapter accelerates software-defined networking by offloading the SDN data plane to the SmartNIC using NVIDIA ASAP² (Accelerated Switch and Packet Processing) technology. This reduces CPU load in virtualized and containerized environments while allowing customers to keep their existing SDN solution and operate through SR-IOV or VirtIO interfaces. ASAP² supports cloud overlays such as VXLAN, GENEVE, and NVGRE, as well as service provider encapsulations such as MPLS and GTP, making it suitable for both enterprise cloud and NFV transitions.

Security is built in at the endpoint. The MCX623106AN-CDAT offers inline hardware IPsec encryption and decryption acceleration with AES-XTS 256/512-bit keys, and supports IPsec over RoCE. ASAP² connection-tracking hardware offload accelerates Layer 4 firewall performance. Supply chain protection is provided by a hardware root-of-trust with secure boot and firmware updates using RSA cryptography and device-unique key cloning protection.

• Up to two ports of 10/25GbE, or one port of 50GbE
• Up to 50Gb/s total bandwidth
• PCIe Gen 4.0 compatible, x8 lanes (also supports PCIe Gen3 x8)
• Line-speed message rate of 75Mpps
• Advanced RoCE with Zero-Touch RoCE (ZTR)
• ASAP² Accelerated Switch and Packet Processing for SDN and VNF acceleration
• Single Root I/O Virtualization (SR-IOV) and VirtIO acceleration
• Overlay network acceleration: VXLAN, GENEVE, NVGRE
• Programmable flexible parser
• Connection tracking for L4 firewall offload
• Flow mirroring, sampling, and statistics
• Header rewrite and hierarchical QoS
• Stateless TCP offloads
• Inline hardware IPsec encryption and decryption with AES-XTS 256/512-bit keys
• IPsec over RoCE
• Hardware root-of-trust and secure firmware update

NVIDIA ASAP² technology offloads the software-defined networking data plane to the SmartNIC. This accelerates performance and frees up CPU resources in virtualized or containerized cloud data centers. Customers can accelerate their data centers with an SR-IOV or VirtIO interface while continuing to use their preferred SDN solution. ASAP² supports both cloud encapsulations such as VXLAN, GENEVE, and NVGRE, and communication service provider encapsulations such as MPLS and GTP, helping CSPs transition to network function virtualization (NFV).

ConnectX-6 Lx continues the ConnectX tradition of industry-leading RDMA over Converged Ethernet (RoCE). With Zero-Touch RoCE (ZTR), RoCE payloads can run seamlessly on existing networks without special configuration for priority flow control (PFC) or explicit congestion notification (ECN), simplifying RoCE deployment. This makes the adapter suitable for scalable, resilient, and easy-to-deploy RoCE solutions.

The MCX623106AN-CDAT brings security down to the endpoints with inline hardware IPsec encryption and decryption acceleration. It uses AES-XTS 256/512-bit keys and supports IPsec over RoCE. ASAP² connection-tracking hardware offload accelerates Layer 4 firewall performance. The adapter also provides supply chain protection with a hardware root-of-trust for secure boot and firmware updates using RSA cryptography, plus cloning protection via a device-unique key to guarantee firmware authenticity.

Management features include NC-SI, MCTP over SMBus and MCTP over PCIe, Baseboard Management Controller interface, and NCSI over RBT on OCP cards. The adapter supports PLDM for Monitor and Control (DSP0248) and PLDM for Firmware Update (DSP0267).

Remote boot options include remote boot over Ethernet and remote boot over iSCSI, with Unified Extensible Firmware Interface (UEFI) support for x86 and Arm servers, as well as Pre-execution Environment (PXE) boot.

• Cloud and enterprise data centers deploying 25GbE server connectivity
• Virtualized and containerized environments using SR-IOV or VirtIO
• Software-defined networking (SDN) and network function virtualization (NFV)
• Communication service provider (CSP) infrastructures transitioning to NFV
• Secure multi-tenant environments requiring inline IPsec
• Storage and compute fabrics relying on RoCE and Zero-Touch RoCE
• Servers requiring remote boot over Ethernet or iSCSI with UEFI/PXE support

The MCX623106AN-CDAT uses standard SFP28 connectivity for 10/25GbE and supports 50GbE on a single port. It is compatible with PCIe Gen4 x8 and PCIe Gen3 x8 host slots. UEFI support covers both x86 and Arm servers, and remote boot supports Ethernet, iSCSI, and PXE.

The ConnectX-6 Lx portfolio includes PCIe low-profile and OCP 3.0 small form factor (SFF) cards, with SFP28 and QSFP28 connectivity options, in crypto and non-crypto versions. Because system-level compatibility can depend on server platform, firmware, and OS/driver versions, please confirm the exact host configuration before ordering.

The ConnectX-6 Lx portfolio includes multiple form factors and connectivity options. The table below summarizes the main portfolio options described in the product datasheet. For a complete list of orderable part numbers, please contact your NVIDIA sales representative.

• Best TCO for 25GbE: Designed to deliver scalability, high performance, and advanced security at the best total cost of ownership for 25GbE deployments.
• CPU offload: ASAP² offloads the SDN data plane, reducing CPU load in virtualized and containerized environments.
• Simplified RoCE: Zero-Touch RoCE allows RoCE payloads to run on existing networks without special PFC or ECN configuration.
• Endpoint security: Inline IPsec, L4 firewall connection tracking, hardware root-of-trust, and secure firmware update.
• Flexible deployment: SR-IOV and VirtIO support lets customers keep their preferred SDN solution.
• Service provider ready: Supports MPLS and GTP encapsulations alongside cloud overlays such as VXLAN, GENEVE, and NVGRE.
• Broad server support: UEFI support for x86 and Arm, plus remote boot over Ethernet, iSCSI, and PXE.
• Flexible host connectivity: PCIe Gen4 x8 with backward compatibility to PCIe Gen3 x8.

Starsurge Group provides pre-sales configuration support, compatibility checks, and post-sales technical assistance for NVIDIA networking products. Our team can help confirm whether the MCX623106AN-CDAT is suitable for your server platform, operating system, and SDN or NFV stack, and can advise on alternative ConnectX-6 Lx form factors or port configurations when needed.

For NVIDIA ordering information, please contact your NVIDIA sales representative or visit the online ConnectX-6 Lx user manuals for the PCIe HHHL form factor and the OCP 3.0 form factor. To learn more about NVIDIA SmartNICs, visit nvidia.com/networking/ethernet-adapters.

• Confirm that your server platform supports PCIe Gen4 x8 or Gen3 x8 and has adequate airflow for the adapter.
• Verify operating system, driver, and firmware compatibility before deployment.
• Confirm the required port configuration: two 10/25GbE ports or one 50GbE port.
• Use SFP28 optical modules or DAC cables rated for the intended link speed and reach.
• Verify that your SDN or NFV stack supports ASAP² and the required overlay encapsulations.
• Confirm crypto requirements if inline IPsec or IPsec over RoCE is required.
• Power consumption, operating temperature, dimensions, and regulatory compliance are not publicly specified in this datasheet — please confirm before ordering.

Hong Kong Starsurge Group Co., Limited is a technology-driven provider of network hardware, IT services, and system integration solutions. Founded in 2008, the company serves customers worldwide with products including network switches, NICs, wireless access points, controllers, cables, and related networking equipment.

Backed by an experienced sales and technical team, Starsurge supports industries such as government, healthcare, manufacturing, education, finance, and enterprise. The company also offers IoT solutions, network management systems, custom software development, multilingual support, and global delivery.

With a customer-first approach, Starsurge focuses on reliable quality, responsive service, and tailored solutions that help clients build efficient, scalable, and dependable network infrastructure.

• Confirm the required port configuration: two 10/25GbE SFP28 ports or one 50GbE port.
• Confirm the server has a PCIe Gen4 x8 or Gen3 x8 slot available.
• Confirm the required form factor: this part number is PCIe low-profile (HHHL).
• Confirm whether crypto capability (inline IPsec) is required.
• Confirm your SDN/NFV stack supports ASAP², SR-IOV, or VirtIO as needed.
• Confirm required overlay support: VXLAN, GENEVE, NVGRE, MPLS, or GTP.
• Confirm remote boot requirements: Ethernet, iSCSI, UEFI, or PXE.
• Request power consumption, operating temperature, and regulatory information before ordering.
