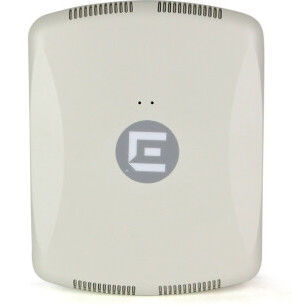

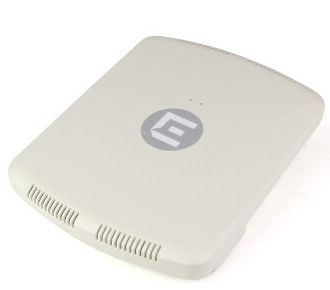

AP6522-66030-WR Extreme Wireless Access Points 802.11n Indoor Dual Base Station

AP6522-66030-WR Extreme Wireless Access Points 802.11n Indoor Dual Base Station

AP6522 Extreme Wireless Access Points

66030 Extreme Wireless Access Points

Indoor extreme 66030

Brand Name:


Model Number:



Request A Quote
Product Details
New And Original
Supported Frequency:
5GHz And 2.4GHz
Indoor Wireless Access Point
Transmission Standard:
Warranty Time:
1 Year
Integrated Antenna
Lead Time:
According To Stock
Product Description

Extreme wireless access points AP-6522-66030-WR

Automatic channel and power optimization

SMART RF (Smart RF) function of switch/controller can automatically optimize power and channel selection, so that each user can get uninterrupted high-quality access service and mobility, and reduce common problems to a greater extent, such as building attenuation, electronic interference or sub-optimal access point location


High reliability

AP6522 can dynamically detect weak or attenuated signals, safely transfer users to standby access points, improve signal power, automatically fill in radio frequency vulnerabilities, ensure uninterrupted mobile user access, and optimize network availability through its proactive intelligent features.


Device and network acceleration

Virtual LAN functions can be used through switches/directors to improve device and network performance. Each AP 6521 access point can be virtualized into four different VLANs. VLAN can guide broadcast traffic to target recipients through customization. This reduces the total network traffic, and improves the device performance and battery life by up to 25%. In addition, this also reduces the total number of access points required to provide unique device services.


frequency characteristic

Working channel: 5 GHz: all channels from 4920 MHz to 5825 MHz; 2.4 GHz: channel 1-13 (2412-2427 MHz), channel 14 (2484 MHz) Only Japan's actual operating frequency depends on the regulatory restrictions of each country/region

Maximum output power setting: 27dBm

Transmission power regulation: 1dB

Antenna configuration: 2 × 2 MIMO (two transmit, two receive)

Operating frequency band: FCC EU 2.412 to 2.462 GHz 2.412 to 2.472 GHz 5.150 to 5.250 (UNI-1) 5.150 to 5.250 GHz 5.725 to 5.825 (UNI-3) 5.150 to 5.350 GHz 5.725 to 5.850 (ISM) 5.470 to 5.725 GHz

Wireless data communication and network

Supported data rates: 802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48 and 54 Mbps; 802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps; 802.11n: MCS 0-15 up to 300 Mbps

Network standards: 802.11a, 802.11b, 802.11g, 802.11n

Wireless media: direct sequence spread spectrum (DSSS), orthogonal frequency division multiplexing (OFDM) and spatial multiplexing (MIMO)

Uplink: automatic sensing 10/100/1000Base-T Ethernet

Physical parameters

Dimensions: AP6521 (internal antenna): length 241.3 mm x width 189.1 mm x height 43.6 mm; AP6521 (external antenna): 216.4 mm long x 141 mm wide x 37.7 mm high

Weight: AP6521 (internal antenna): 0.91Kg; AP6521 (external antenna): 1.14Kg

Model: AP6521 (internal antenna): AP-6521-60010-US, AP-6521-60010-WR; AP6521 (external antenna): AP-6521-60020-US, AP-6521-60020-WR

Available installation configuration: ceiling installation (installed on the suspended ceiling T-beam, under the ceiling); Wall mounted external antenna: ceiling mounted (above the ceiling); Wall mounting

LED indicators: 2 LED indicators with multiple modes, indicating 2.4 GHz/5 GHz activity, power supply, admission and error

AP6522-66030-WR Extreme Wireless Access Points 802.11n Indoor Dual Base Station 0


Q1.What can you buy from us?

A:Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, Access Point, etc.

Q2.How about the delivery date?

A:It usually takes 3-5 working days. For specific models, please contact us to check the stock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.

Q3.What's your warranty terms?

A: We supply 12 months warranty time.

Q4.How about the Shipping Method?

A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.

Q5.Can I get some samples?

A:Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

Q6.What are your core strengths?

A:First-hand supply, Original and new products with the favorable price and perfect after-sales service.
