AP360I-WR Extreme Wireless Access Points Wi-Fi WPA3

AP360I-WR Extreme Wireless Access Points Wi-Fi WPA3

WPA3 Extreme Wireless Access Points

AP360I Extreme Wireless Access Points


Brand Name:


Model Number:



Request A Quote
Product Details
New And Original
Supported Frequency:
5GHz And 2.4GHz
Dual Radio
Transmission Standard:
Warranty Time:
1 Year
190mm X 145mm X 50mm
Product Description

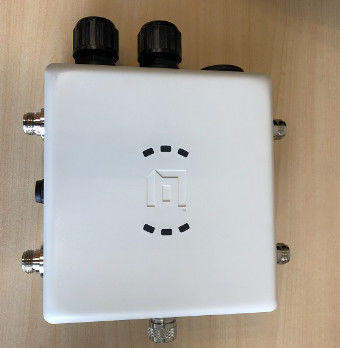

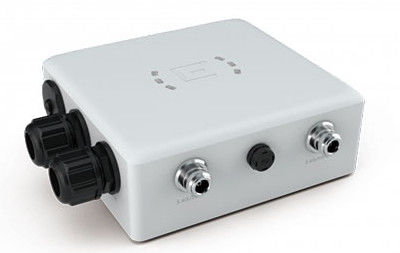

Extreme wireless access points AP360I-WR


AP360i/e provides advanced security services and support for the Wi-Fi Alliance's new WPA3 security certification. A stateful L2-L7 DPI firewall is also provided for context-based access security.



Manage analytics
With the Extreme Management System, AP360i/e deployed in the cloud or on-premises is used to display rich data sets through context-driven widgets, showing historical data or the combination of historical and current data. Provides granularity, context-specific, perspectives on location, network, APs, client devices, and policy roles. In each context, administrators can adjust the display of the dashboard through the widget gallery.



Built-in BLE and Zigbee
Supporting IoT and customer engagement services, the AP360i/e integrates Bluetooth, wirelessly connects IoT devices via Thread, and engages loyal customers through AppleiBeacon. Enterprises can use API-driven applications to provide services directly to demanders. This is ideal for companies promoting their app download pages, portal pages, or site-specific information.




• The previous generation of 802.11n, 802.11ac generation 1 and 2 is a phased improvement, emphasizing faster speed. The 80211ax technology increases speed and improves Wi-Fi efficiency, bringing Wi-Fi networks to a new level.

Programmable Radios

• Geagin's software-defined 802.11ax access point not only supports dual 5GHz, but also supports 3 software programmable modes to optimize RF management and provide high-quality client performance.
The AP360i/e's intelligent monitoring of software-configurable radios allows network administrators to configure the network RF topology according to the user environment, configuring access points into different modes as required.

Radio Specifications

• 5.150-5850GHZ working frequency
• Orthogonal frequency-division multiplexed modulation method (OFDM)
• Rate (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 with automatic speed down function
• 2.4-2.5GHz operating frequency
• Direct Sequence Spread Spectrum Modulation Method (DSSS)
• Rate (Mbps): 11, 5.5, 21 with automatic speed down function
• 2.4-2.5GHz operating frequency
• Orthogonal frequency-division multiplexed modulation method (OFDM)
• Rate (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 with automatic speed down function
• 2.4-2.5GHz&5150-5850GH operating frequency
• 80211N modulation
• Rate (Mbps): MCSO-MCS15 (65MBps-300Mbps)
• 2x2 Multi-Input, Multiple Output Radio Frequency (MIMO)
• Support for HT20 High-Throughput (HT) (both 2.4 GHz and 5GHz)
• 5GHz support HT40 High-Throughput (HT)
• A-MPDU and A-MSDU aggregation
• 5.150-5.850GHZ operating frequency
• 802.11ac modulation (256-QAM)
• Rate (Mbps): MCSO-MCS9, NSS=1-2
• 2x2:2 multiple-input, multiple-output radio frequency (MIMO)
• Support VHT20/VHT40/VHT80
• TxBF (Transmission Beamforming)
• 2.4-2.5GHz &5150-5850GHz operating frequency
• 802.11ax modulation (1024-QAM)
• Dual-band OFDMA
• Rate (Mbps):
   5G:HEO-HE11(8 Mbps - 1200 Mbps)
   2.4G: HEO-HE11(8 Mbps - 574 Mbps)
• 2x2:2 spatial stream multiple-input multiple-output radio frequency (MIMO)
• 5GHz support H320/HE40/HE80
• 2.4GHz support H320/HE40
• TxBF (Transmission Beamforming)
