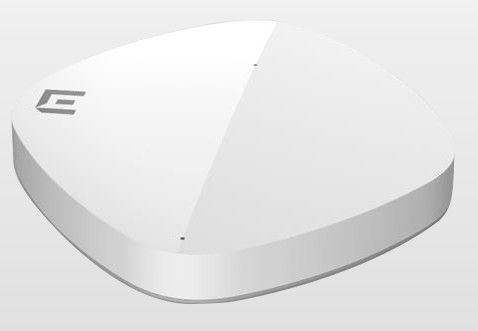

Tri-Radio Access Points Extreme Networks AP410C -WR 2.4 GHz 5 GHz Sensor

Tri-Radio Access Points Extreme Networks AP410C -WR 2.4 GHz 5 GHz Sensor

Tri-Radio extreme networks ap410c

2.4 GHz extreme networks ap410c

Tri-Radio extreme ap410c

Brand Name:

Extreme

Model Number:

AP410C-WR

CONTACT US

Request A Quote
Product Details
Condition:
New And Original
Availability:
Stock
Supported Frequency:
5GHz And 2.4GHz
Type:
Tri-Radio
Transmission Standard:
802.11ax
Warranty Time:
1 Year
Weight:
0.9kg
Dimensions:
205mm X 205mm X 37mm
Product Description

Extreme wireless access points AP410C-WR

Advanced Tri-Radio Technology
Available in 5 GHz 4x4:4, 2.4 GHz 2x2:2, and 2.4 GHz / 5GHz / Sensor configurations. Includes Dual 5 GHz operation.

Optimal RF Management User Experience
Adaptive RF management with AI/ML functionality provides intelligent selection of the best channels and transmit power for an optimal user experience.


Security & Performance Optimization
Dedicated, dual-band sensor scans for threats full time, eliminating the risks of radio time-sharing between clients and WIPS.

WiFi6(802.11ax)Technology

• Prior generations of 802.11n, 802.11ac wave 1 and 2, can be considered generational improvements with an emphasis on faster speed. 802.11ax technology instead enhances Wi-Fi efficiency as well as speed, taking Wi-Fi networks to an entirely new level.

Programmable Radios

• Extreme launched the industry's first software defined 802.11ax access point supporting not only a dual 5 GHz capability but also two software programmable modes to optimally manage radios to provide the highest level of client performance. The AP410C intelligent monitoring of the software- configurable radios enables network managers to configure network RF technology based on user environment and configure the access points in different modes was required.

Radio Specifications

Max Users
• SSID per Radio/Total: 8/16
• Users per Radio/total: 512/1024
802.11a
• 5.150–5.850 GHz Operating Frequency
• Orthogonal Frequency Division Multiplexing (OFDM) Modulation
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11b
• 2.4–2.5 GHz Operating Frequency
• Direct-Sequence Spread-Spectrum (DSSS) Modulation
• Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g
• 2.4–2.5 GHz Operating Frequency
• Orthogonal Frequency Division Multiplexing (OFDM) Modulation
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11n
• 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
• 802.11n Modulation
• HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
• HT40 High-Throughput (HT) Support for 5 GHz
• A-MPDU and A-MSDU Frame Aggregation
802.11ac
• 5.150–5.850 GHz Operating Frequency
• 802.11ac Modulation (256-QAM)
• Rates (Mbps): MCS0 – MCS31 (6.5MBps - 600Mbps)
• 5G: 4x4 Multiple-In, Multiple-Out (MIMO) Radio
• 2.4G: 2x2 Multiple-In, Multiple-Out (MIMO) Radio
• Rates (Mbps): MCS0–MCS9 (6.5Mbps – 3467Mbps), NSS = 1-4.
• 4x4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio
• VHT20/VHT40/VHT80/VHT160 support
• TxBF ( Transmit Beamforming)
802.11ax
• 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
• 802.11ax Modulation (1024-QAM)
• Dual-band OFDMA
• Rates (Mbps):
• 5G: HE0-HE11 (8 Mbps – 4800 Mbps).
• 2.4G: HE0-HE11 (8Mbps – 574 Mbps).
• 4x4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 5GHz
• 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio @2.4GHz
• HE20/HE40/HE80/HE160 support for 5 GHz
• HE20/HE40 support for 2.4 GHz
• DL SU-MIMO and MU-MIMO
• TxBF (Transmit Beamforming)

Tri-Radio Access Points Extreme Networks AP410C -WR 2.4 GHz 5 GHz Sensor 0
