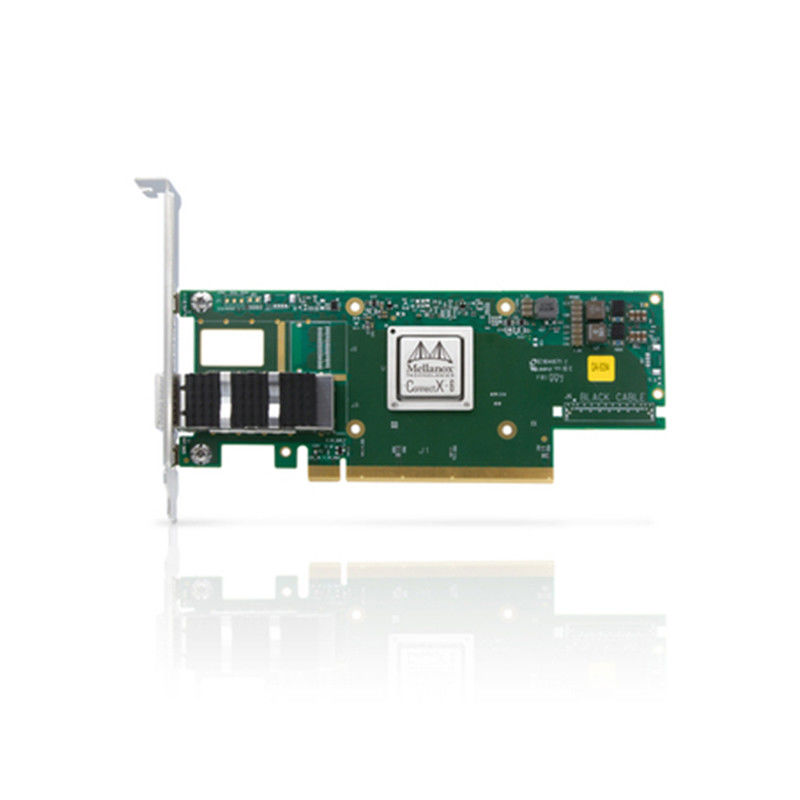

Nvidia MCX653105A-Ecat-Sp Connectx6 Single-Port Osfp56 EDR 100GB/S Vpi Infiniband Network Card
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCX653105A-ECAT-SP |
| Document: | connectx-6-infiniband.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Products Status: | Stock | Application: | Server |
|---|---|---|---|
| Interface Type:: | InfiniBand | Ports: | Single |
| Max Speed: | 100GbE | Connector Type: | QSFP56 |
| Type: | Wired | Condition: | New And Original |
| Highlight: | Single Port Mellanox Network Card,100Gb ConnectX-6 Mellanox Network Card,ConnectX-6 mellanox 100gb nic |
||
Product Description
High-Performance Network Interface Card for Demanding Workloads
The NVIDIA ConnectX-6 MCX653105A-ECAT represents the pinnacle of network interface card technology, delivering exceptional performance for modern data-intensive applications. This advanced nic card supports dual-port 200Gb/s connectivity through InfiniBand or Ethernet interfaces, providing the foundation for high-performance computing, artificial intelligence, and cloud infrastructure deployments. With sophisticated hardware offloads and innovative in-network computing capabilities, this adapter significantly reduces CPU overhead while maximizing data throughput efficiency.
Ultra-High Speed Connectivity
200Gb/s per port performance with extremely low latency for data-intensive applications
Advanced Hardware Offloads
Comprehensive processing of networking, security and storage operations directly on the adapter
Multi-Protocol Support
Native support for both InfiniBand and Ethernet protocols with automatic adaptation
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | MCX653105A-ECAT |
| Interface Standard | PCI Express 3.0/4.0 x16 |
| Data Rate | Up to 200Gb/s per port (HDR InfiniBand/200GbE) |
| Physical Ports | 2 × QSFP56 cages |
| Supported Protocols | InfiniBand, Ethernet, iWARP, RoCE |
| Security Features | Hardware-based XTS-AES 256/512 encryption |
| Virtualization | SR-IOV with up to 1000 virtual functions |
| Form Factor | Standard profile PCIe card |
| Dimensions | 167.65mm × 68.90mm |
Advanced Technologies
The ConnectX-6 network card incorporates multiple cutting-edge technologies that set it apart from conventional network adapters:
- RDMA Remote Direct Memory Access for zero-copy data transfers
- NVMe-oF NVMe over Fabrics target and initiator offloads
- SR-IOV Single Root I/O Virtualization with advanced QoS controls
- Tunneling Hardware offload for VXLAN, NVGRE, and GENEVE
- Encryption IEEE AES-XTS 256/512-bit block-level encryption
- In-Network Computing Processing within the network fabric
Performance Characteristics
This high-performance network card delivers exceptional metrics that benefit demanding applications:
- Message rate: Up to 215 million messages per second
- Latency: Sub-microsecond end-to-end latency
- Bandwidth: 200Gb/s per port with full bidirectional throughput
- CPU utilization: Dramatically reduced through hardware offloads
- Power efficiency: Optimized performance per watt
Application Environments
The ConnectX-6 adapter is ideally suited for numerous high-demand scenarios:
- High-Performance Computing clusters and supercomputers
- Artificial Intelligence and Machine Learning training infrastructures
- Cloud data centers and hyperscale environments
- Network Function Virtualization (NFV) platforms
- Big Data analytics and storage systems
- Financial trading and real-time analytics systems
Competitive Advantages
This network interface card offers significant benefits over alternative solutions:
- Superior performance compared to previous generation adapters
- Comprehensive hardware offloads reduce server CPU utilization by up to 30%
- Enhanced security with inline encryption without performance impact
- Broader ecosystem support across multiple operating systems and platforms
- Future-proof design supporting both InfiniBand and Ethernet networks
Service and Support
We provide comprehensive support services for all our products:
- Standard warranty: 1-3 years with optional extensions
- Global technical support available 24/7/365
- Fast shipping: Typically 3-5 business days for in-stock items
- Custom configuration and integration assistance
- Regular firmware and driver updates
- Compatibility validation with partner solutions
Frequently Asked Questions
What are the key differences between ConnectX-6 and ConnectX-5 adapters?
The ConnectX-6 offers double the bandwidth (200Gb/s vs. 100Gb/s), improved message rates, enhanced in-network computing capabilities, and more advanced security features including hardware-accelerated encryption.
Does this network card support both InfiniBand and Ethernet simultaneously?
The adapter can be configured for either InfiniBand or Ethernet operation per port, but both ports must run the same protocol. The nic card does not support mixed protocol operation on different ports.
What cooling requirements does this adapter have?
The card requires adequate airflow through the server chassis. For extended operation at maximum throughput, ensure ambient temperature does not exceed 35°C and airflow is at least 200 LFM.
Installation and Compatibility Notes
- Verify PCIe slot generation compatibility (Gen3 or Gen4 x16 required)
- Ensure proper cooling and airflow in the server environment
- Use qualified optical or Direct Attach Copper cables for optimal performance
- Update to the latest firmware and drivers available from NVIDIA
- Follow proper electrostatic discharge (ESD) precautions during handling
- Check compatibility with switch infrastructure for specific protocol features
