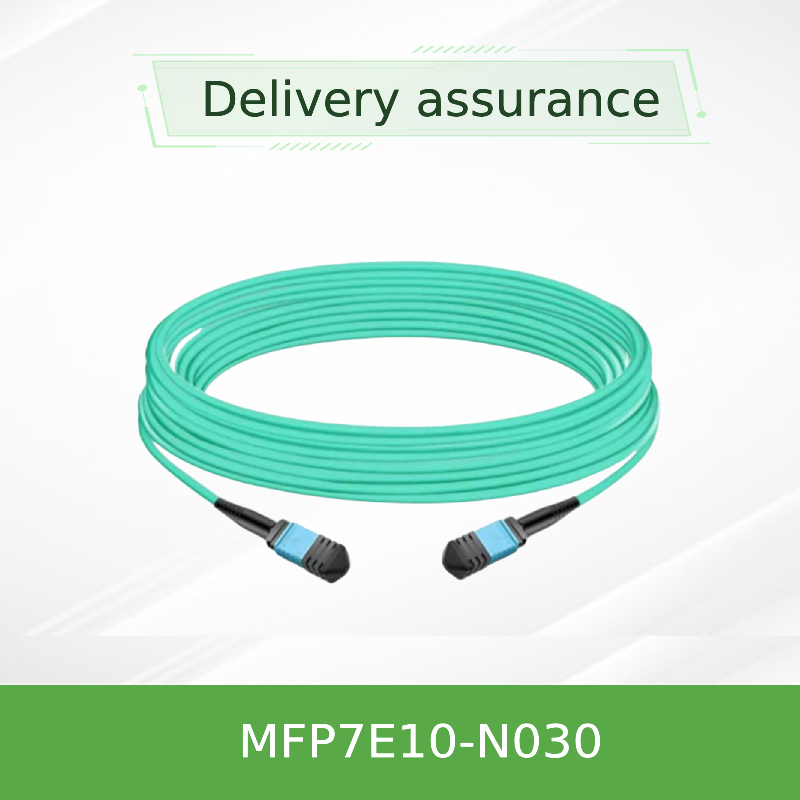

NVIDIA MFP7E10-N030 30-Meter Multimode MPO-12/APC Fiber Optic Cable
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFP7E10-N030(980-9I557-00N030) |
| Document: | MFP7E10-Nxxx.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model: | MFP7E10-N030 | Length: | 30 M |
|---|---|---|---|
| Fiber Type: | Multimode OM4 | Connectors: | MPO-12/APC (Female) |
| Insertion Loss: | ≤ 0.362 DB | Return Loss: | ≥ 35 DB |
| Highlight: | NVIDIA multimode MPO-12 fiber optic cable,30-meter MPO-12 APC fiber cable,NVIDIA 30-meter multimode fiber cable |
||
Product Description
NVIDIA MFP7E10-N030 30-Meter Multimode MPO-12/APC Fiber Optic Cable
NVIDIA MFP7E10-N030 — 30-meter MPO-12/APC to MPO-12/APC multimode fiber cable, Type-B crossover, OM4 (50/125 μm). Designed for 400G/800G InfiniBand and Ethernet links between twin-port OSFP, single-port OSFP, and QSFP112 transceivers. Low insertion loss, LSZH/OFNR jacket, supports up to 50m reach with patch panels.
Product Overview
The NVIDIA MFP7E10-Nxxx series passive optical cable is engineered for high-density data center interconnects. The MFP7E10-N030 (30m) uses 8 active fibers within a 12-fiber MPO‑12/APC connector, with 4 fibers serving as strength members. The 8‑degree angled polish (APC) minimizes back reflections, ensuring signal integrity for high-speed protocols.
This cable is a Type-B crossover assembly, aligning transmit channel 1 at one end to receive channel 12 at the opposite end—critical for direct transceiver pairing without additional polarity management. It supports both InfiniBand (NDR) and Ethernet (400GbE/800GbE) environments.
Key Features
Optical & Physical
- 50/125 μm OM4 multimode fiber (length >30 m)
- MPO‑12/APC female connectors, green shell
- 8 active fibers / 4 inactive (strength members)
- Type-B crossover polarity
- Aqua LSZH / OFNR jacket, 3.0 ±0.2 mm diameter
Performance & Compliance
- Insertion loss ≤ 0.35 + 0.0004 * L (dB) ; for 30m: ≤ 0.362 dB
- Return loss ≥ 35 dB
- Min bending radius: 30 mm (anywhere on cable)
- Operating temp: 0 °C to 70 °C
- Telcordia GR‑1435, IEC 61754‑7, ANSI/TIA‑604‑5
Technology
The APC (Angled Physical Contact) endface with an 8‑degree polish is critical for high‑speed optical links: it deflects internal back reflections away from the transceiver laser, reducing signal distortion and bit errors. The cable is passive and contains no active electronics, ensuring low latency and high reliability. The MPO‑12 alignment pins (in the transceiver) mate with alignment holes in the cable connector for precise optical coupling.
NVIDIA specifies the MFP7E10‑Nxxx for links that include up to two optical patch panels (total 4 connector junctions) while maintaining the 50‑meter maximum reach.
Typical Deployments
- Switch‑to‑Switch: Linking twin‑port OSFP 800G switches in spine‑leaf fabrics.
- Switch‑to‑Adapter: Connecting OSFP switches to ConnectX‑7 or BlueField‑3 DPUs using OSFP or QSFP112 transceivers.
- 400G/800G breakout: Used with twin‑port OSFP transceivers (e.g., MMA4Z00‑NS) to support two 4‑channel 400G links.
- AI and HPC clusters requiring low‑latency, high‑bandwidth GPU‑to‑GPU connectivity.
Compatibility
The MFP7E10‑N030 is compatible with NVIDIA transceivers including:
- Twin‑port OSFP: MMA4Z00‑NS (800G DR8) for InfiniBand/Ethernet switches
- Single‑port OSFP: MMA4Z00‑NS400 (400G) for ConnectX‑7 adapters
- QSFP112: MMA1Z00‑NS400 (400G) for BlueField‑3 DPUs
- Also supports 400GbE/NDR InfiniBand and NVLink protocols.
Important: MPO‑12/APC connectors are not compatible with MPO‑12/UPC (blue shell) connectors. Do not mix with 100G/200G transceivers that use UPC polish.
Specifications
| Parameter | Value |
|---|---|
| Model | MFP7E10‑N030 |
| Length | 30 m (tolerance: +2% * L / -0) |
| Fiber type | Multimode OM4 (50/125 μm) for length >30 m ; OM3 for ≤30 m |
| Connector type | MPO‑12/APC female to MPO‑12/APC female, green shell |
| Active fibers | 8 (4 Tx, 4 Rx) |
| Polarity | Type‑B crossover |
| Insertion loss (max) | ≤ 0.35 + 0.0004 * L (dB) → 0.362 dB @ 30m |
| Return loss (min) | ≥ 35 dB |
| Cable diameter | 3.0 ± 0.2 mm |
| Min bend radius | 30 mm (anywhere on cable) |
| Jacket | Aqua, LSZH / OFNR |
| Operating temperature | 0 °C to 70 °C |
| Storage temperature | ‑40 °C to 85 °C |
| Humidity (non‑condensing) | 10% – 85% RH |
| Standards | GR‑1435, IEC 61754‑7, ANSI/TIA‑604‑5 |
Selection Guide
| Ordering Part Number | Description | Length |
|---|---|---|
| MFP7E10‑N003 | NVIDIA passive fiber cable, MMF, MPO12 APC to MPO12 APC | 3 m |
| MFP7E10‑N005 | NVIDIA passive fiber cable, MMF, MPO12 APC to MPO12 APC | 5 m |
| MFP7E10‑N007 | NVIDIA passive fiber cable, MMF, MPO12 APC to MPO12 APC | 7 m |
| MFP7E10‑N010 | NVIDIA passive fiber cable, MMF, MPO12 APC to MPO12 APC | 10 m |
| MFP7E10‑N015 | NVIDIA passive fiber cable, MMF, MPO12 APC to MPO12 APC | 15 m |
| MFP7E10‑N020 | NVIDIA passive fiber cable, MMF, MPO12 APC to MPO12 APC | 20 m |
| MFP7E10‑N025 | NVIDIA passive fiber cable, MMF, MPO12 APC to MPO12 APC | 25 m |
| MFP7E10‑N030 | NVIDIA passive fiber cable, MMF, MPO12 APC to MPO12 APC | 30 m |
| MFP7E10‑N035 | NVIDIA passive fiber cable, MMF, MPO12 APC to MPO12 APC | 35 m |
| MFP7E10‑N040 | NVIDIA passive fiber cable, MMF, MPO12 APC to MPO12 APC | 40 m |
| MFP7E10‑N050 | NVIDIA passive fiber cable, MMF, MPO12 APC to MPO12 APC | 50 m |
Advantages
- Low loss & high return loss: Ensures clean optical signals for 400G/800G PAM4 modulation.
- APC polish: Minimizes reflections, critical for NDR InfiniBand and 800G Ethernet.
- Type‑B crossover: Simplifies direct transceiver mating; no need for polarity reversal adapters.
- LSZH/OFNR jacket: Low smoke and flame‑retardant, suitable for plenum and riser spaces.
- NVIDIA qualified: Tested and recommended for ConnectX‑7, BlueField‑3, and Spectrum switch families.
Service & Support
Hong Kong Starsurge Group provides global delivery, multilingual support, and technical expertise for NVIDIA networking solutions. Our team assists with deployment planning, compatibility validation, and post‑sales support. Contact our sales team for volume pricing and custom length inquiries.
Frequently Asked Questions
Is this cable compatible with QSFP112 transceivers?
Yes, when used with the appropriate NVIDIA QSFP112 400G transceiver (e.g., MMA1Z00‑NS400) on the adapter side.
Can I use this with MPO‑12/UPC connectors?
No. MPO‑12/APC (green shell) is not mechanically or optically compatible with MPO‑12/UPC (blue shell). Using them together can damage the connector endfaces.
What is the maximum reach for a 30m cable?
The cable itself is 30m, but the overall link can support up to 50m when including two patch panels (4 connector junctions) with proper loss budgeting.
Is the cable ESD sensitive?
No, the cable has no conductive parts. However, standard ESD precautions apply when handling transceivers.
Handling Precautions
- Keep dust caps on connectors until installation to prevent contamination.
- Clean both cable and transceiver connectors using an optical connector cleaner before mating.
- Avoid bending the cable below the 30 mm bend radius.
- Do not expose to liquids or operate outside the rated temperature range.
- Store between ‑40 °C and 85 °C when not in use.
Company Introduction
Hong Kong Starsurge Group Co., Limited is a technology‑driven provider of network hardware, IT services, and system integration solutions. Founded in 2008, we serve customers worldwide with products including network switches, NICs, wireless access points, controllers, cables, and related networking equipment.
Backed by an experienced sales and technical team, Starsurge supports industries such as government, healthcare, manufacturing, education, finance, and enterprise. We offer IoT solutions, network management systems, custom software development, multilingual support, and global delivery. With a customer‑first approach, we focus on reliable quality, responsive service, and tailored solutions that help clients build efficient, scalable, and dependable network infrastructure.
Key Facts at a Glance
Connector & Polarity: MPO‑12/APC female, Type‑B crossover, green shell
Fiber & Length: Multimode OM4, 30 m (98 ft), 8 active fibers
Optical Performance: IL ≤ 0.362 dB, RL ≥ 35 dB
Compliance: GR‑1435, IEC 61754‑7, OFNR/LSZH
Compatibility Matrix
| Transceiver / Device | Port Type | Compatible |
|---|---|---|
| NVIDIA MMA4Z00‑NS (800G DR8) | Twin‑port OSFP | Yes |
| NVIDIA MMA4Z00‑NS400 (400G) | OSFP (single port) | Yes |
| NVIDIA MMA1Z00‑NS400 (400G) | QSFP112 | Yes |
| ConnectX‑7 / BlueField‑3 | OSFP / QSFP112 | Yes |
| MPO‑12/UPC transceivers (100G/200G) | MPO‑12/UPC | No (different polish) |
Buyer Checklist
- Confirm transceiver port type: OSFP, twin‑port OSFP, or QSFP112
- Verify connector polish: MPO‑12/APC (green shell) vs. UPC (blue shell)
- Check required cable length — MFP7E10‑N030 is 30 meters
- Ensure fiber type: multimode OM4 for lengths >30m, OM3 for shorter
- Plan for cable management: 30 mm minimum bend radius
- Consider patch panel insertion loss if used in long links
