NVIDIA MFS1S00-H005V – 5m 200G QSFP56 AOC for InfiniBand HDR & 200GbE
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MFS1S00-H005V |
| Document: | MFS1S00-HxxxV 200Gbs-QSFP56...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Availability: | Stock | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New And Original | Technology: | InfiniBand |
| Type: | Mellanox AOC Cable | Cable Length: | 5 Meters |
| Model: | MFS1S00-H005V | Name: | Mellanox AOC Cable MFS1S00-H005V Active Optical Cable Up To 200Gb/s IB HDR QSFP56 5m |
| Keyword: | Mellanox AOC Cable | ||
| Highlight: | NVIDIA QSFP56 AOC cable,200G InfiniBand HDR cable,5m 200GbE optical cable |
||
Product Description

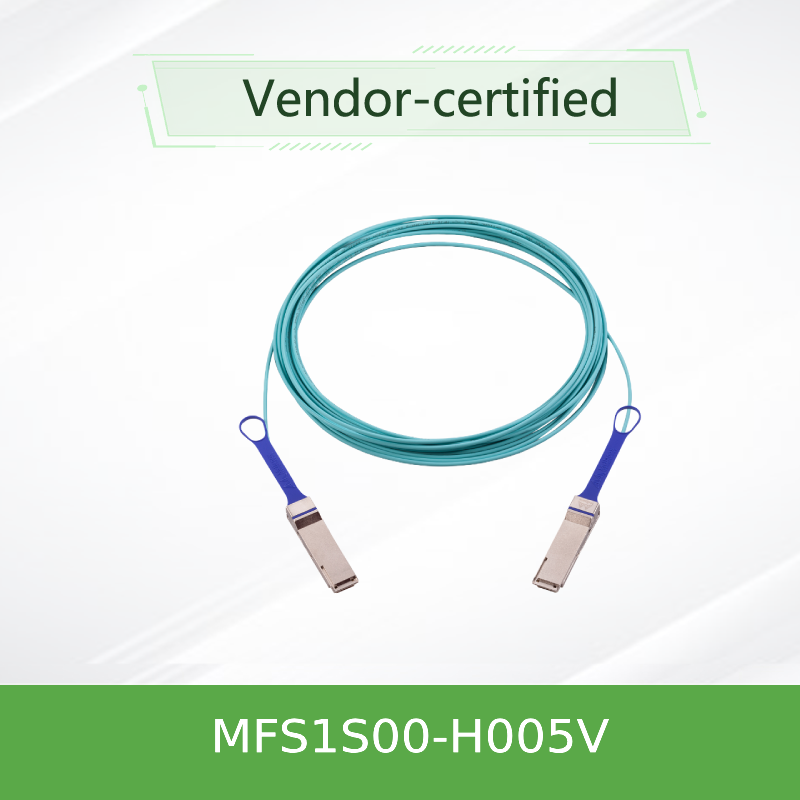

NVIDIA MFS1S00-H005V – 5m 200G QSFP56 AOC for InfiniBand HDR & 200GbE
High-performance 200Gb/s QSFP56 VCSEL-based active optical cable designed for InfiniBand HDR and 200GbE systems. This 5-meter cable features four multimode fiber channels operating at 50Gb/s PAM4 per lane, with hot-pluggable SFF-8665 compliant connectors and selectable retiming capabilities.
Key Specifications
| Data Rate | 200Gb/s (4×50Gb/s PAM4) |
| Length | 5 m (MFS1S00-H005V) |
| Connector | QSFP56 (SFF-8665) |
| Fiber Type | Multimode (MMF) |
| Power Consumption | 5.0W typical (per end) |
| Maximum Reach | Up to 100 m |
| Protocols | InfiniBand HDR, 200GbE |
| Management | SFF-8636 I²C |
Product Overview
The NVIDIA MFS1S00-HxxxV series is a QSFP56 VCSEL-based active optical cable designed for 200Gb/s InfiniBand HDR and 200GbE applications. The MFS1S00-H005V 5-meter variant provides a complete optical link with integrated transceivers at both ends, eliminating the need for separate optical modules and patch cords.
Key Features
- 200Gb/s aggregate bandwidth - 4 lanes × 50Gb/s PAM4 modulation
- QSFP56 form factor - SFF-8665 compliant, hot-pluggable
- Selectable retiming - Per-lane Tx/Rx CDR control for flexible system integration
- Programmable output - Rx output amplitude and pre-emphasis adjustments
- Low power consumption - 5.0W typical per end with retiming enabled
- Extended reach - Up to 100m over multimode fiber
- Digital diagnostics - Real-time monitoring of temperature, voltage, bias current, and Tx/Rx optical power
- RoHS compliant - Environmentally friendly materials
Technical Specifications
| Parameter | Value / Range | Notes |
|---|---|---|
| Product Number | MFS1S00-H005V | 5 m length |
| Data Rate | 200Gb/s (4×50Gb/s PAM4) | Also supports 100Gb/s NRZ |
| Fiber Type | Multimode (MMF) | VCSEL-based optics |
| Connector Type | QSFP56 | SFF-8665 compliant |
| Power Dissipation | 5.0W (typical, per end) | With retiming on all lanes |
| Supply Voltage | 3.135V - 3.465V | 3.3V nominal |
| Cable Diameter | 3.0 ±0.2 mm | Round, flexible |
| Minimum Bend Radius | 30 mm | Anywhere on the cable |
| Length Tolerance (≥5m) | +500 / -0 mm | For 5m ≤ length < 50m |
| Operating Case Temp. | 0 °C to 70 °C | Internal readout up to 75°C |
| Storage Temp. | −40 °C to 85 °C | -- |
| Maximum Reach | Up to 100 m | Depending on system budget |
Ordering Information
| Ordering Part Number | Length | Description |
|---|---|---|
| MFS1S00-H003V | 3 m | Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56 |
| MFS1S00-H005V | 5 m | Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56 |
| MFS1S00-H010V | 10 m | Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56 |
| MFS1S00-H015V | 15 m | Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56 |
| MFS1S00-H020V | 20 m | Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56 |
| MFS1S00-H030V | 30 m | Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56 |
| MFS1S00-H050V | 50 m | Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56 |
| MFS1S00-H100V | 100 m | Active optical cable, up to 200Gb/s VPI (IB HDR & 200GbE), QSFP56 |
