ConnectX-7 MCX75310AAS-NEAT 400G Single-Port RDMA Adapter for AI, HPC, and Cloud Data Centers
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MCX75310AAS-NEAT(900-9X766-003N-SQ0) |
| Document: | Connectx-7 infiniband.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MCX75310AAS-NEAT(900-9X766-003N-SQ0) | Ports: | Single-Port |
|---|---|---|---|
| Technology: | Infiniband | Interface Type: | Osfp56 |
| Specification: | 16.7cm X 6.9cm | Origin: | India / Israel / China |
| Transmission Rate: | 400gbe | Host Interface: | Gen3 X16 |
| Highlight: | ConnectX-7 400G RDMA adapter,Nvidia network card for AI,single-port HPC adapter with RDMA |
||
Product Description

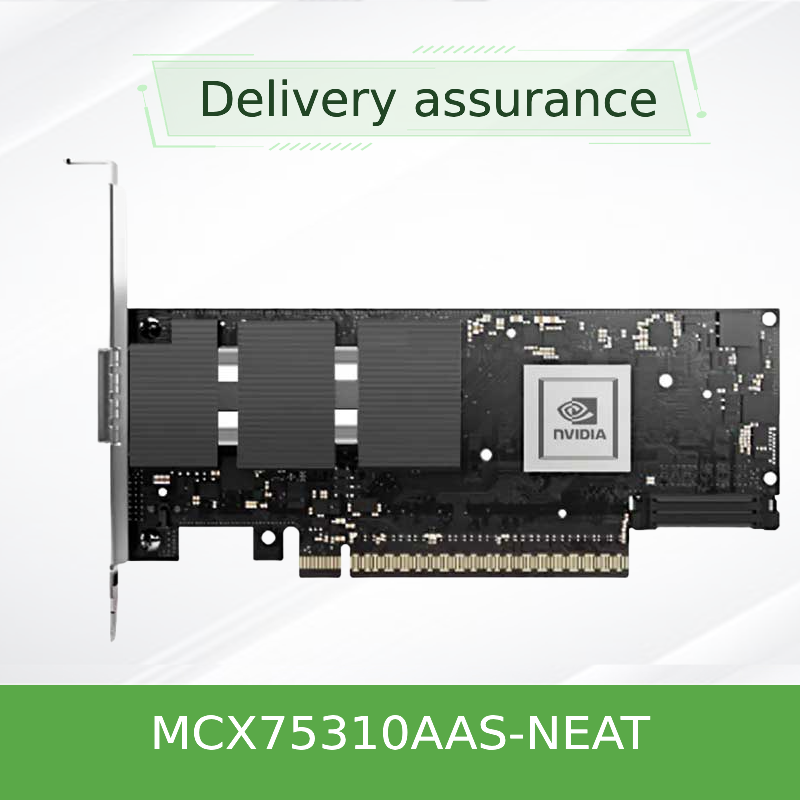

NVIDIA ConnectX-7 MCX75310AAS-NEAT 400G Single-Port RDMA Adapter
High-performance 400Gb/s RDMA adapter designed for AI, scientific computing, and hyperscale cloud data centers.
Product Overview
The NVIDIA ConnectX-7 MCX75310AAS-NEAT is a single-port, 400Gb/s network adapter supporting both InfiniBand (NDR/HDR/EDR) and Ethernet (400/200/100/50/25/10GbE) protocols. Featuring PCIe Gen5 x16 host interface, GPUDirect RDMA and Storage, in-line encryption (IPsec, MACsec, TLS), SHARP in-network computing, and advanced timing (PTP Class C, SyncE), it delivers ultra-low latency and extreme throughput for demanding workloads.
400 Gb/s total bandwidth
InfiniBand + Ethernet
PCIe Gen5 x16 lanes
GPUDirect RDMA & Storage
Single-port QSFP112
SHARP in-network computing
Key Features & Technology
Networking & Performance
- Up to 400 Gb/s total bandwidth
- InfiniBand: NDR 400Gb/s, HDR 200Gb/s, EDR 100Gb/s
- Ethernet: 400/200/100/50/25/10 Gb/s
- PCIe Gen5 host interface (x16 lanes)
- Single-port QSFP112 connector
- RDMA & RoCEv2 accelerations
- NVIDIA GPUDirect® RDMA and Storage
- In-network computing with SHARP™
- Adaptive routing & enhanced congestion control
- 16 million I/O channels
Security, Timing & Management
- In-line encryption: IPsec, MACsec, TLS (AES-GCM 128/256-bit)
- Platform security: Secure boot, flash encryption, device attestation (SPDM 1.1)
- Advanced PTP: IEEE 1588v2 Class C, 12ns accuracy
- SyncE (G.8262.1 eEEC), PTM, PPS, time-triggered scheduling
- ASAP² for SDN & VNF acceleration
- Overlay networks: VXLAN, GENEVE, NVGRE
- Connection tracking (L4 firewall), flow mirroring, QoS
- NC-SI, MCTP, PLDM (Monitor/Control, Firmware Update, Redfish, FRU)
- SR-IOV, VirtIO acceleration
Typical Deployments
- AI & machine learning clusters - GPU-accelerated training and inference
- High-performance computing (HPC) - research, simulation, and scientific workloads
- Hyperscale cloud data centers - scalable, multi-tenant infrastructure
- Enterprise data centers - virtualization, SDN, and storage acceleration
- Storage systems - NVMe-over-Fabrics, GPUDirect Storage, distributed file systems
- Telecommunications & edge - 5G core, timing-sensitive applications, NFV
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MCX75310AAS-NEAT |
| Supported network protocols | InfiniBand, Ethernet |
| Maximum total bandwidth | 400 Gb/s |
| InfiniBand speeds | NDR 400Gb/s, HDR 200Gb/s, EDR 100Gb/s |
| Ethernet speeds | 400/200/100/50/25/10 Gb/s |
| Number of network ports | 1 port (single-port QSFP112) |
| Host interface | PCIe Gen5 (x16 lanes) |
| Form factor | PCIe HHHL (half-height, half-length) |
| I/O channels | 16 million |
| Security features | In-line IPsec/MACsec/TLS (AES-GCM 128/256), secure boot, flash encryption, SPDM 1.1 |
| Operating systems | Linux (RHEL, Ubuntu), Windows, VMware ESXi, Kubernetes |
Key Advantages
- Unmatched performance - 400 Gb/s bandwidth with sub-microsecond latency
- Protocol flexibility - single adapter for InfiniBand and Ethernet (VPI)
- AI-optimized - GPUDirect RDMA and Storage, SHARP collective offloads
- Future-ready - PCIe Gen5 host interface for maximum data throughput
- Security built-in - in-line encryption with zero performance impact
- Precision timing - IEEE 1588v2 Class C for 5G and timing-sensitive applications
Service & Support
- NVIDIA standard warranty - 1-year limited hardware warranty (extended options available)
- Global delivery - Worldwide shipping with tracking
- Technical pre-sales support - solution design, compatibility verification, and performance tuning
- Post-sales engineering - driver installation, firmware updates, and troubleshooting
- Bulk & custom orders - tailored pricing and configuration for enterprise deployments
Frequently Asked Questions
What is the maximum bandwidth of the MCX75310AAS-NEAT?
It delivers up to 400 Gb/s total bandwidth, supporting both InfiniBand (NDR 400Gb/s, HDR 200Gb/s, EDR 100Gb/s) and Ethernet (400/200/100/50/25/10 Gb/s) speeds.
What host interface does this adapter use?
PCIe Gen5 with x16 lanes, offering high host bandwidth for data-intensive workloads.
Does it support GPUDirect?
Yes, the MCX75310AAS-NEAT supports NVIDIA GPUDirect RDMA and GPUDirect Storage for low-latency GPU-to-GPU and GPU-to-storage communication.
