Aruba AP-505 (R2H28A) Wi-Fi 6 Access Point 802.11ax Indoor Wireless IoT-Ready
Product Details:
| Brand Name: | Aruba |
| Model Number: | AP-505(R2H28A) |
| Document: | DS_AP500Series.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Condition: | New And Original | Availability: | Stock |
|---|---|---|---|
| Use: | Wireless WiFi 6 | Supported Frequency: | Dual Radio 2x2:2 |
| Type: | Indoor Access Point | Transmission Standard: | 802.11n/ac/ax |
| Size: | 193mm (W) X 183mm (D) X 63mm (H) | Weight: | 645g |
Product Description

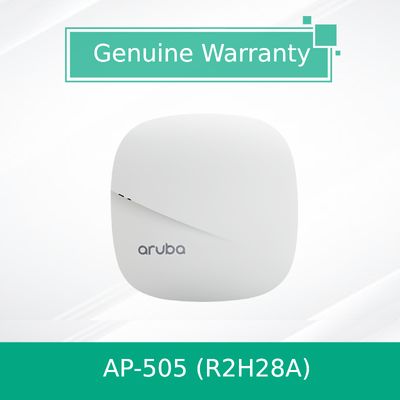

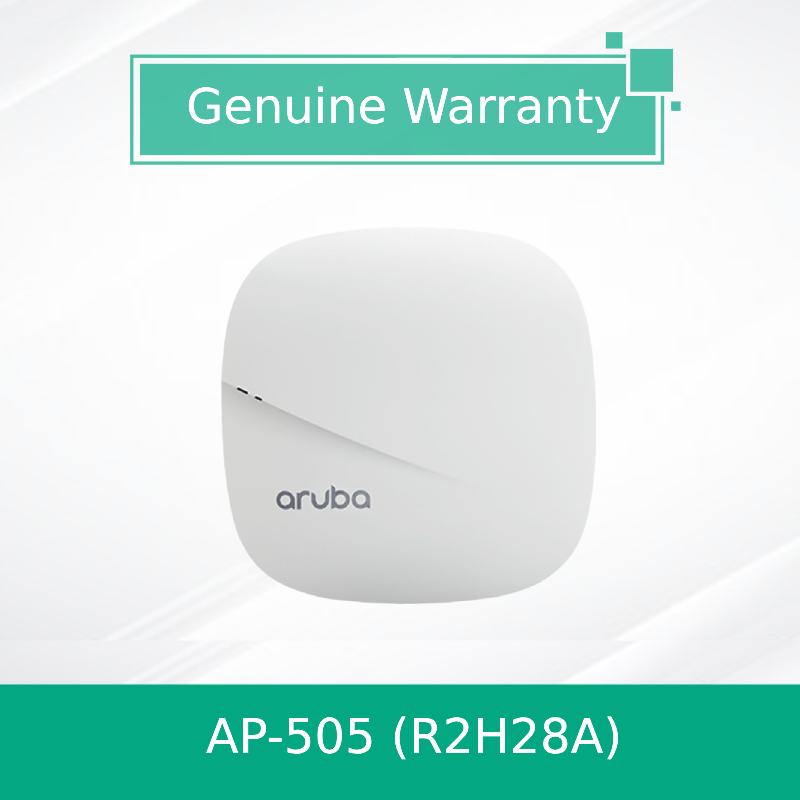

Aruba AP-505 (R2H28A) Wi-Fi 6 Indoor Access Point
High-Performance Wi-Fi 6 Solution for Medium-Density Environments
The Aruba AP-505 represents a cost-effective yet powerful Wi-Fi 6 (802.11ax) access point engineered to address the growing connectivity demands of modern organizations. With maximum real-world speeds reaching 1.49 Gbps and comprehensive IoT integration, this access point delivers enterprise-grade wireless performance for educational institutions, mid-size offices, retail spaces, and healthcare facilities.
Key Features & Benefits
- Dual-Radio Wi-Fi 6 Performance: 2.4GHz (574 Mbps) and 5GHz (1.2 Gbps) with 2x2 MIMO technology
- Integrated IoT Platform: Built-in Bluetooth 5 and Zigbee support eliminates need for separate IoT infrastructure
- Advanced RF Management: ClientMatch technology and OFDMA for optimized client connectivity and airtime efficiency
- Enterprise Security: WPA3, Enhanced Open, and Trusted Platform Module for secure operations
- Flexible Deployment: Operates in controller-based or Instant (controller-less) modes with cloud management options
Advanced Wireless Technologies
The AP-505 incorporates cutting-edge wireless standards and proprietary technologies to ensure optimal network performance:
- Wi-Fi 6 (802.11ax): Orthogonal Frequency-Division Multiple Access (OFDMA) for multi-user efficiency
- Aruba ClientMatch: AI-powered technology that eliminates sticky client issues and optimizes roaming
- Aruba Air Slice: Provides SLA-grade performance through dynamic radio resource allocation
- Target Wake Time (TWT): Enhances battery life for IoT devices by scheduling communication times
- Advanced Cellular Coexistence (ACC): Minimizes interference from cellular networks and DAS systems
Operational Framework
This network access point functions as an intelligent wireless bridge, managing radio frequency allocation through sophisticated algorithms. The integrated ARM processor handles real-time traffic analysis, while the dual-radio architecture separates 2.4GHz and 5GHz bands to optimize performance. The system continuously monitors client devices, automatically steering them to optimal access points and radio bands based on capability, signal strength, and application requirements.
Ideal Deployment Scenarios
The AP-505 excels in various medium-density indoor environments where reliable wireless connectivity is essential:
- Educational Campuses: Classroom connectivity, digital learning environments, and administrative networks
- Corporate Offices: Open workspace coverage, conference rooms, and collaborative areas
- Healthcare Facilities: Patient monitoring systems, electronic health records access, and medical device connectivity
- Retail Environments: Point-of-sale systems, inventory management, and customer Wi-Fi services
- Hospitality Venues: Guest internet access, staff communications, and facility management systems
Technical Specifications
| Specification | AP-505 Details |
|---|---|
| Wireless Standards | Wi-Fi 6 (802.11ax), 802.11ac/n/g/b/a |
| Maximum Speed | 1.49 Gbps aggregate (HE80/HE20) |
| Client Capacity | Up to 256 clients per radio (512 total) |
| Antennas | Integrated dual-band downtilt omni-directional |
| Power Options | 802.3af/at PoE+ or 12V DC power |
| Maximum Power Consumption | 16.5W (with USB device attached) |
| Dimensions | 160 x 161 x 37 mm (W x D x H) |
| Weight | 500g (unit only) |
Model Comparison
| Model | Antenna Type | Best For | Regulatory Domains |
|---|---|---|---|
| AP-505 (R2H28A) | Integrated | Standard indoor deployment | RW (Rest of World) |
| AP-504 | External RP-SMA | Custom antenna requirements | Multiple options |
| AP-505 TAA Models | Integrated | Government/regulated industries | Multiple options |
Competitive Advantages
- Future-Ready Architecture: Wi-Fi 6 technology provides longevity and investment protection
- Integrated IoT Capabilities: Built-in Bluetooth 5 and Zigbee eliminate additional hardware costs
- Intelligent Client Management: ClientMatch technology ensures optimal client-AP associations
- Flexible Management Options: Cloud, controller-based, or controller-less deployment modes
- Enhanced Security Framework: WPA3, TPM, and policy enforcement firewall for comprehensive protection
- Proven Reliability: 1.3 million hours MTBF ensures continuous operation
Service & Support
Our organization provides comprehensive support services for all networking equipment including this advanced network access point:
- Warranty Protection: Standard manufacturer warranty with optional extended coverage
- Technical Assistance: 24/7 customer consultation and engineering support
- Rapid Deployment: Zero-touch provisioning for simplified installation
- Integration Services: Professional configuration and network optimization available
- Global Logistics: Efficient supply chain management for timely delivery
Frequently Asked Questions
Q: What is the difference between AP-504 and AP-505 models?
A: The primary distinction is antenna configuration. The AP-505 features integrated dual-band antennas optimized for ceiling mounting, while the AP-504 offers external RP-SMA connectors for custom antenna deployments in specialized environments.
Q: Does the AP-505 support Power over Ethernet?
A: Yes, the access point supports both 802.3af and 802.3at PoE standards. When powered by 802.3at PoE+, all features operate without restrictions, including the USB port functionality.
Q: Can this access point be managed through the cloud?
A: Absolutely. The AP-505 can be managed through Aruba Central for cloud-based orchestration, providing a single-pane-of-glass view for wired and wireless network infrastructure.
Q: What IoT capabilities are integrated into this network access point?
A: The unit includes both Bluetooth 5 and Zigbee (802.15.4) radios, enabling location services, asset tracking, and IoT sensor connectivity without requiring additional infrastructure.
Installation & Operational Considerations
- Ensure adequate PoE budget allocation, particularly when utilizing USB-powered devices
- Maintain operating temperature between 0°C to 50°C for optimal performance
- For ceiling mounting, utilize the pre-installed bracket and appropriate mounting kit
- Verify regulatory domain compatibility for intended deployment location
- Implement proper RF planning to optimize channel selection and minimize interference
- Ensure minimum ArubaOS 8.6.0.0 or ArubaOS 10.1.0.0 for full feature support
Product Attributes
| Attribute | Value |
|---|---|
| Product Category | Wireless Access Point |
| Wireless Standard | Wi-Fi 6 (802.11ax) |
| Network Interface | Gigabit Ethernet with PoE+ |
| Deployment | Indoor ceiling/wall mount |
| Management | Cloud, controller, or standalone |
