Hpe Aruba Networking Ap-577ex (RW) Dual Radio 2X2/4X4 Wi-Fi 6 Internal Directional Hazloc Ap
Product Details:
| Brand Name: | Aruba |
| Model Number: | AP-577EX-RW (R4W38A) |
| Document: | HPE Aruba Networking AP-577...EN.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | AP-577EX-RW (R4W38A) | WiFi Antenna Type: | External |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 5V |
| Antenna Gain: | 23dBi | Color: | White |
| Security Features: | AES-Ccmp | Warranty: | 12 Months |
| Selling Units: | Single Item | Use: | In Door |
| Condition: | New And Original | Transport Package: | Protecting Boxes |
| Specification: | 200mm× 200mm× 48mm | Trademark: | Aruba |
| Highlight: | Aruba Networking Wi-Fi 6,Aruba Networking Ap-577ex,HPE Aruba Networking Ap-577ex |
||
Product Description

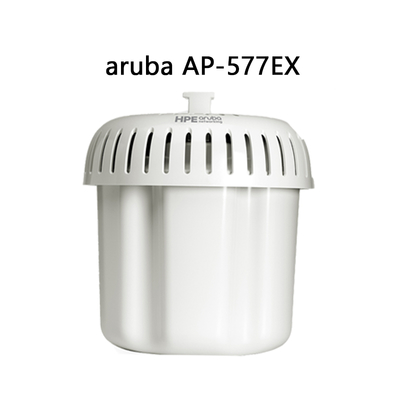

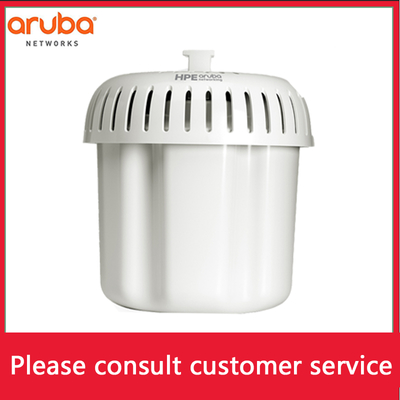

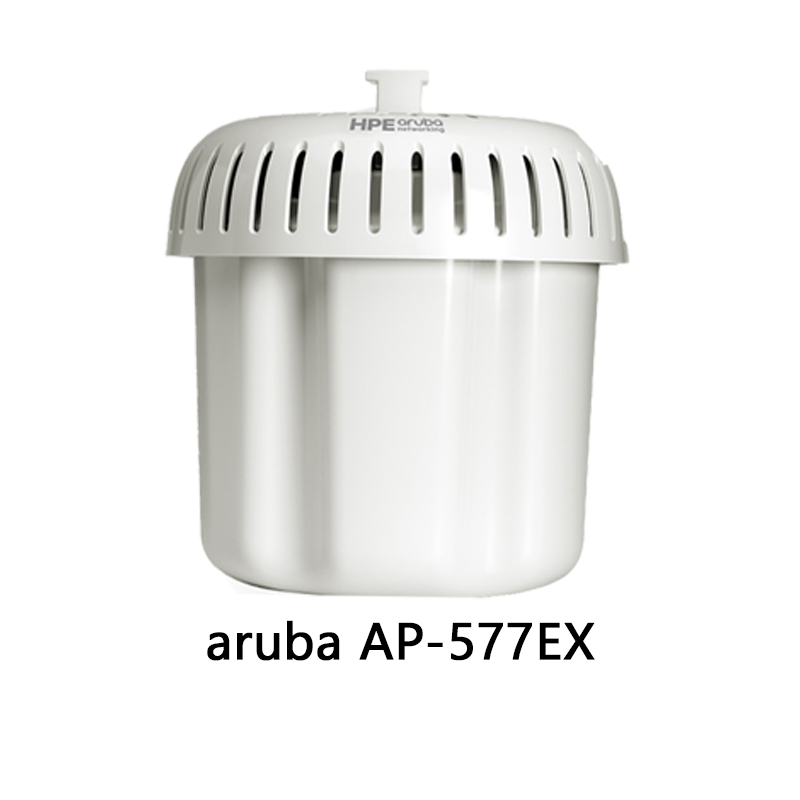

HPE Aruba AP-577EX Directional Wi-Fi 6 Hazardous Location Access Point
Product Overview
The HPE Aruba AP-577EX is a high-performance, ruggedized Wi-Fi 6 access point specifically engineered for hazardous environments requiring directional antenna coverage. Certified for Class 1 Division 2 and ATEX Zone 2, this AP delivers reliable wireless connectivity in extreme conditions including oil rigs, mining operations, and chemical plants. With a maximum aggregate data rate of 2.69 Gbps, integrated Bluetooth 5, and Zigbee support, this Aruba access point is built to support both traditional Wi-Fi and IoT deployments in challenging outdoor settings.
Key Features
- Wi-Fi 6 (802.11ax) with OFDMA, MU-MIMO, and Target Wake Time (TWT)
- Dual radio: 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO
- Built-in directional antennas: 5 GHz (6.3 dBi), 2.4 GHz (6.4 dBi)
- Built-in Bluetooth 5 and 802.15.4 (Zigbee) for IoT readiness
- Ruggedized design for extreme temperatures (-40°C to +65°C)
- Dynamic Segmentation and Policy Enforcement Firewall for enhanced security
Technology & Standards
This Aruba AP supports Wi-Fi 6 (802.11ax) with advanced features including OFDMA, MU-MIMO, and TWT for efficient multi-user communication and power savings. It includes integrated support for Bluetooth 5 and Zigbee via an 802.15.4 radio, making it an ideal platform for IoT convergence. Security is enhanced with WPA3, TPM for secure boot, and Dynamic Segmentation. The directional antennas provide focused coverage ideal for long-range applications in hazardous environments.
How It Works

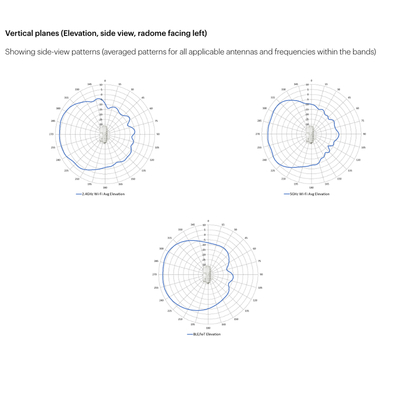

The AP-577EX operates by receiving and transmitting wireless signals across two dedicated radios (5 GHz and 2.4 GHz) using directional antennas with 90°H x 90°V coverage. It uses ClientMatch technology to steer clients to the best available AP and radio. Traffic is secured through Aruba's Policy Enforcement Firewall, which encapsulates data from the AP to the gateway for end-to-end inspection. The integrated IoT radio allows concurrent operation of Bluetooth and Zigbee protocols alongside Wi-Fi, making this access point a comprehensive connectivity solution.
Applications
Ideal for hazardous and industrial environments such as:
- Oil and gas refineries and rigs with long-range requirements
- Mining and tunneling operations requiring directional coverage
- Chemical processing plants with specific coverage areas
- Outdoor logistics and transportation hubs
- Smart manufacturing and IIoT deployments
Specifications
| Attribute | Value |
|---|---|
| Model | AP-577EX |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Max Data Rate | 2.69 Gbps |
| Radios | Dual Radio: 5 GHz 4x4, 2.4 GHz 2x2 |
| Antenna Type | Directional (90°H x 90°V) |
| Antenna Gain | 5 GHz: 6.3 dBi, 2.4 GHz: 6.4 dBi |
| IoT Radio | Bluetooth 5, Zigbee |
| Power Consumption | Max 32W (dual PoE), 26.1W (single PoE) |
| Operating Temperature | -40°C to +65°C |
| Dimensions | 27 x 23 x 24 cm (HxWxD) |
| Weight | 2.4 kg |
| Certifications | Class 1 Div 2, ATEX Zone 2, cTUVus, UL2043 |
Advantages & Selling Points
- Directional antennas provide focused coverage for long-range applications
- Designed for hazardous locations with industry certifications
- Superior Wi-Fi 6 performance with dual radio support
- Integrated IoT capabilities reduce need for additional hardware
- Robust security with WPA3, TPM, and Dynamic Segmentation
- Ruggedized housing withstands extreme temperatures and conditions
Service & Support
This Aruba access point comes with a limited lifetime warranty. We offer global shipping, 24/7 customer support, and technical consultation. Professional services including deployment, configuration, and network integration are available. Our team ensures timely delivery and post-sale support to keep your operations running smoothly.
Frequently Asked Questions
Q: What makes the AP-577EX different from other Aruba access points?
A: The AP-577EX features built-in directional antennas with 90°H x 90°V coverage pattern, making it ideal for applications requiring focused wireless coverage in hazardous environments.
Q: What makes this AP suitable for hazardous locations?
A: It is certified for Class 1 Division 2 and ATEX Zone 2, meaning it can operate safely in areas with flammable gases, vapors, or liquids.
Q: Can this access point support IoT devices?
A: Yes, it has a built-in Bluetooth 5 and Zigbee radio, making it ideal for IoT deployments without additional hardware.
Q: What is the maximum data rate?
A: The AP supports up to 2.69 Gbps aggregate data rate across both radios.
Q: What power source does it require?
A: It supports Power over Ethernet (PoE) via either single or dual Ethernet ports.
Precautions
- Ensure proper grounding and installation by qualified personnel.
- Do not operate outside specified temperature ranges (-40°C to +65°C).
- Use only recommended mounting kits and accessories.
- Verify compatibility with existing network controllers and management systems.
- Follow local regulatory requirements for wireless deployments.
- Consider antenna pattern when planning coverage in hazardous areas.
