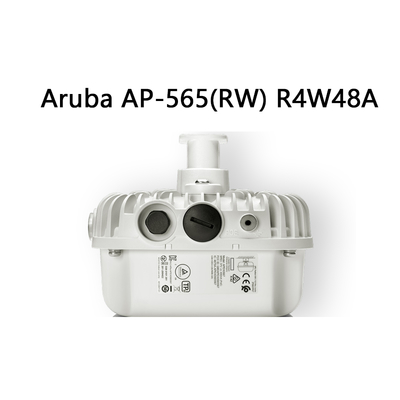

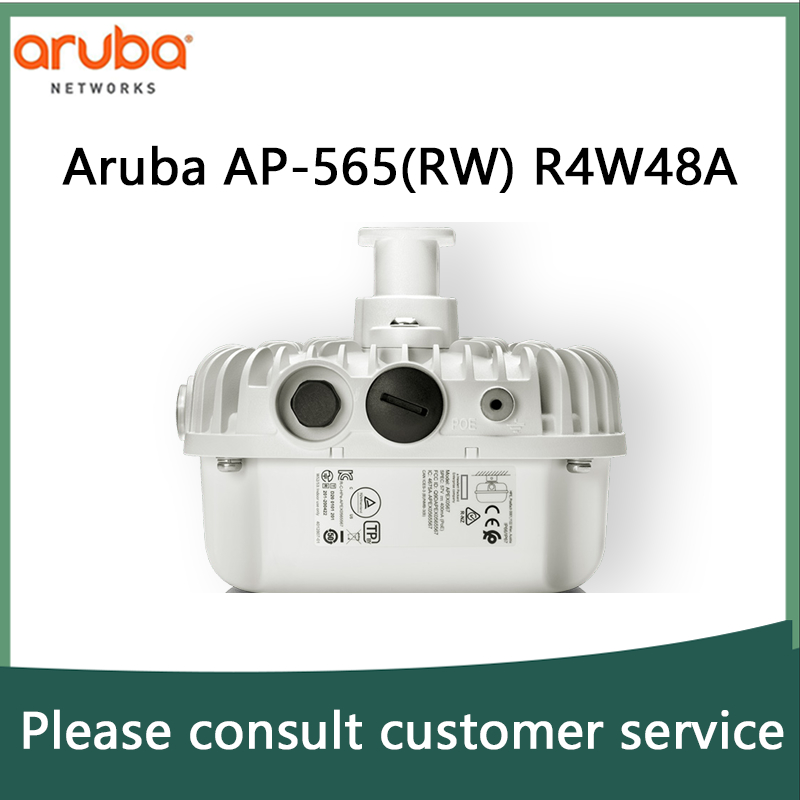

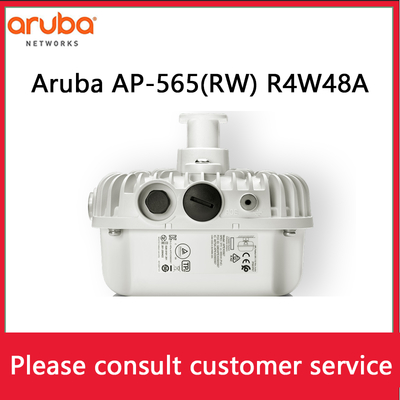

Aruba Manufacturer Supply Ap-565 (R4W43A) in Door Wireless Ap
Product Details:
| Brand Name: | Aruba |
| Certification: | ISO9001, RoHS, FCC, CE |
| Model Number: | Ap-565 (R4W43A) |
| Document: | DS_AP560Series.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | Ap-565 (R4W43A) | WiFi Antenna Type: | External |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 5V |
| Antenna Gain: | 23dBi | Color: | White |
| Security Features: | AES-Ccmp | Warranty: | 12 Months |
| Selling Units: | Single Item | Use: | In Door |
| Condition: | New And Original | Transport Package: | Protecting Boxes |
| Specification: | 165mm× 165mm× 110mm | Trademark: | Aruba |
| Highlight: | indoor aruba ap-565,r4w43A aruba ap-565,ap-565 aruba ap-565 |
||
Product Description
Aruba AP-565 (R4W43A) - Outdoor Wi-Fi 6 Access Point
Enterprise-Grade Outdoor Wi-Fi 6 for Extreme Environments
The Aruba AP-565 (R4W43A) delivers robust Wi-Fi 6 connectivity in challenging outdoor conditions with a maximum aggregate data rate of 1.49 Gbps. This industrial-grade AP features integrated omni-directional antennas, IP66/67 weatherproof rating, and operates in temperatures from -40°C to +55°C. With advanced technologies including OFDMA, MU-MIMO, and integrated Bluetooth for IoT services, this Aruba access point provides reliable wireless coverage for outdoor campuses, industrial facilities, and harsh environments where conventional APs cannot perform.
Technical Specifications
Advanced Capabilities
Rugged Outdoor Design
Built to withstand extreme environmental conditions including temperature extremes, high winds (up to 165 mph), moisture, precipitation, dust, and salt spray with industrial-strength surge protection on all electrical interfaces.
Wi-Fi 6 Efficiency
OFDMA and MU-MIMO technologies enable simultaneous multi-user access with efficient channel utilization, dramatically improving network efficiency in high-density outdoor environments.
Integrated IoT Platform
Bluetooth 5 and Zigbee radios enable location services, asset tracking, and sensor connectivity without additional infrastructure, making the AP-565 a comprehensive outdoor IoT solution.
Performance Features
- ClientMatch Technology: AI-powered client steering eliminates sticky client issues and optimizes device connections to the best available AP based on real-time conditions
- Advanced Cellular Coexistence: Built-in filtering minimizes interference from cellular networks, DAS systems, and femtocell equipment
- Intelligent Power Monitoring: Dynamic power management based on available PoE budget, enabling features when sufficient power is available
- Enterprise Security: WPA3 encryption, Enhanced Open security, Trusted Platform Module (TPM), and Policy Enforcement Firewall (PEF) for comprehensive protection
- Flexible Deployment: Supports controller-based, Instant (controller-less), remote AP, and mesh operational modes for versatile deployment scenarios
Compatibility Information
Frequently Asked Questions
Q: What is the difference between the AP-565 and AP-567 models?
A: The AP-565 features integrated omni-directional antennas ideal for general outdoor coverage, while the AP-567 has integrated directional antennas designed for longer-range point-to-point or focused coverage applications.
Q: Can this access point withstand direct exposure to weather elements?
A: Yes, the AP-565 is rated IP66/67 for dust and water resistance, can operate in temperatures from -40°C to +55°C, and withstands wind speeds up to 165 mph.
Q: What power source is required for full functionality?
A: The AP-565 requires 802.3at PoE+ for full functionality. With IPM enabled, it can dynamically adjust features based on available power budget.
Warranty & Support
The Aruba AP-565 comes with a limited lifetime warranty. We provide comprehensive technical support and integration services, with delivery typically within 5-7 business days for in-stock items. Our professional services include outdoor site planning, deployment assistance, and network optimization to ensure optimal performance of your outdoor wireless infrastructure.
