Product Details:

Brand Name: Aruba
Certification: ISO9001, RoHS, FCC, CE
Model Number: AP-615(R7J49A)

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: carton
Delivery Time: According to quantity
Payment Terms: T/T
Supply Ability: 10000pcs/month
Get Best Price Contact Now

Detail Information

Model NO.: AP-615(R7J49A) WiFi Antenna Type: External
Transmission Rate: >200Mbps Voltage: 5V
Antenna Gain: 23dBi Color: White
Security Features: AES-Ccmp Warranty: 12 Months
Selling Units: Single Item Use: In Door
Condition: New And Original Transport Package: Protecting Boxes
Specification: 160mm× 160mm× 39mm Trademark: Aruba
Origin: China

Product Description

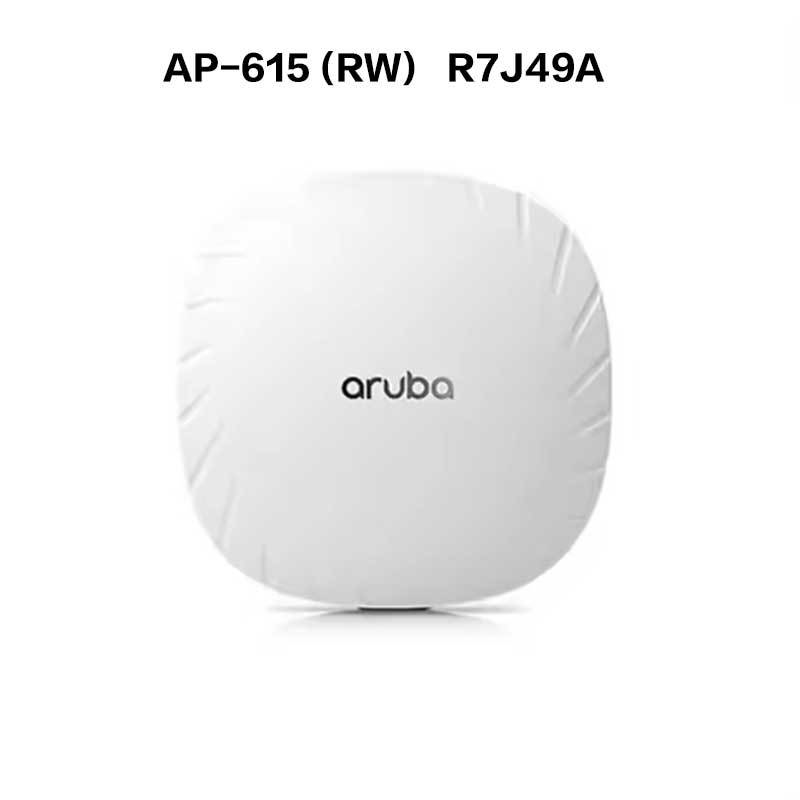

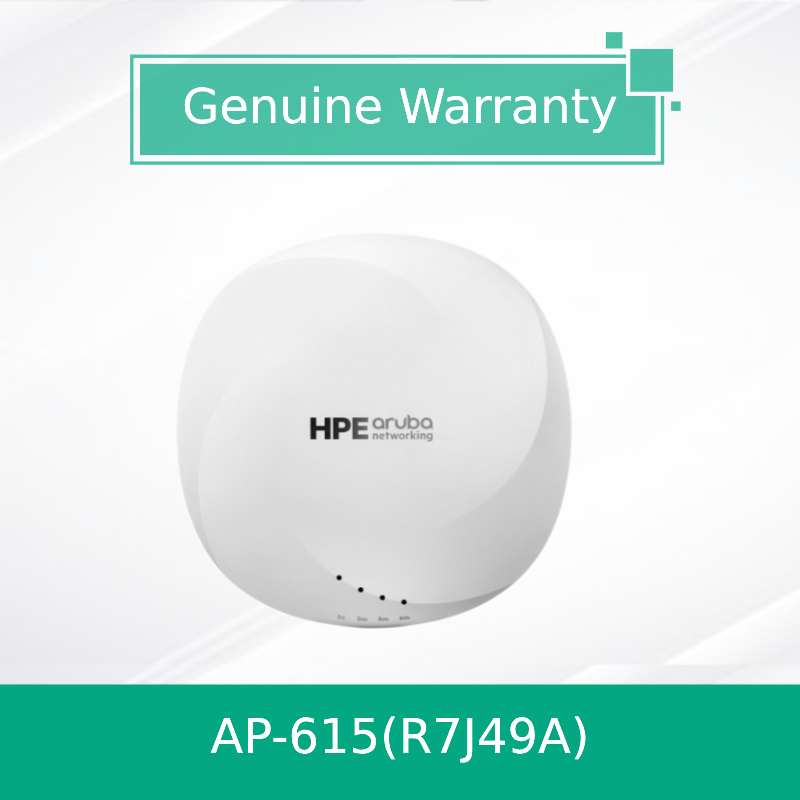

AP-615 (R7J49A)
HPE Aruba Networking AP-615 (R7J49A) Campus Access Points are designed to take advantage of the 6 GHz band and achieve up to a combined maximum 3.6 Gbps data rate for higher throughput and faster speeds indoors. Adding support for the 6 GHz band increases capacity by up to 1200 MHz with more 80/160 MHz channels to support growing demands due to bandwidth-hungry video, growth in client and IoT devices, and expanded use of the cloud. The compact and cost-effective AP-615 (R7J49A) features dual radios that can be tuned to any two of the three spectrum bands for Wi-Fi: 2.4 GHz, 5 GHz, and 6 GHz. Full tri-band coverage is available in a multi-AP deployment. Built-in GPS receivers and fine time measurements enable the AP-615 (R7J49A) to automatically locate themselves and serve as reference points for accurate indoor location measurements. The AP-615 (R7J49A) includes a limited lifetime warranty.
HPE Aruba Networking AP-615 (R7J49A) Campus Access Points with dual radios deliver up to a maximum combined 3.6 Gbps data rate for higher throughput and faster speeds. With up to seven 160 MHz channels, the APs increase performance for lowlatency, bandwidth-hungry applications. The Designed for Low Power Indoor environments (LPI).
HPE Aruba Networking AP-615 (R7J49A) Campus Access Points equip enterprises with 6 GHz coverage providing up to 1200 MHz additional capacity at an attractive price point. Software-programable radios can be configured to cover any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz. It offers low power (802.3af Class 3) and compact form factor for ease of deployment. Client and RF optimization to match clients with the best available access point and reduce coverage gaps. Zero Touch Provisioning provides ease of implementation in branch offices and remote sites, without on-site technical expertise.
Product Number
R7J49A
Differentiator
Available everywhere except US, Israel, Japan and Egypt Add Mount Kits
Certifications
UL2043 plenum rating; Bluetooth SIG; Ethernet Alliance (PoE, PD device, Class 4); Wi-Fi Alliance (WFA): Wi-Fi CERTIFIED a, b, g, n, ac, Wi-Fi CERTIFIED 6E (ax, 6 GHz), WPA, WPA2 and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE), WMM, WMM-PS, W-Fi Agile Multiband, Wi-Fi CERTIFIED Location™
Input voltage
The AP supports direct DC power and Power over Ethernet (PoE) on port E0
Regulatory
AP-615 (all models): APIN0615 FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2
Wi-Fi antenna
AP-615: Integrated downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 2.8 dBi in 2.4 GHz, 4.5 dBi in 5 GHz and 4.5 dBi in 6 GHz.
Connectivity, standard
Wi-Fi 6 (IEEE 802.11ax)
Ports
E0: Ethernet wired network ports (RJ-45) DC power interface: 12 Vdc (nominal, +/- 5%) USB 2.0 host interface (Type A connector) Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio Visual indicators (four multi-color LEDs) Reset button: factory reset, LED mode control (normal/off) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot

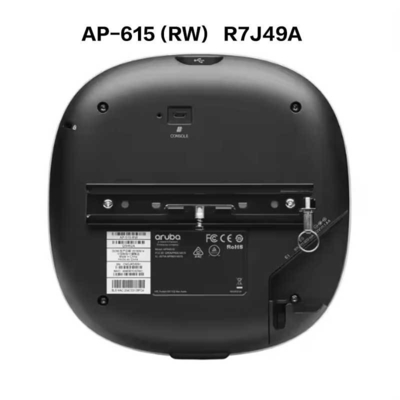

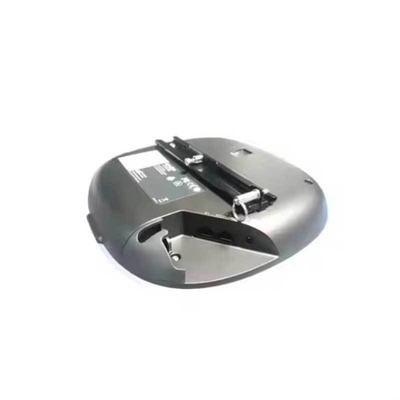

Mounting
A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately) see the 610 Series ordering guide for details.
Power consumption
Maximum (worst-case) power consumption: DC powered:12.5W/18.2W POE powered: 14.7W/20.9W
Radio coverage
Indoor, dual-radio/tri-band 2.4 GHz, 5 GHz and 6 GHz (dual concurrent) 802.11ax 2x2 MIMO
Warranty
Limited lifetime warranty. See the warranty duration.
Product dimensions
5.1 x 20.1 x 18.3 x cm
Weight
0.72 kg
