Hpe Aruba Networking Ap-303-RW JZ320A Series Campus Access Points New and Original
Product Details:
| Brand Name: | Aruba |
| Model Number: | AP-303(JZ320A) |
| Document: | JZ320A Networking 303 Serie...nw.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | AP-303(JZ320A) | WiFi Antenna Type: | External |
|---|---|---|---|
| Transmission Rate: | >200Mbps | Voltage: | 5V |
| Antenna Gain: | 23dBi | Color: | White |
| Use: | In Door | Condition: | New And Original |
| Highlight: | Original Aruba Networking Ap-303-RW,JZ320A Series Campus Access Points,Hpe Aruba Networking Ap-303-RW |
||
Product Description

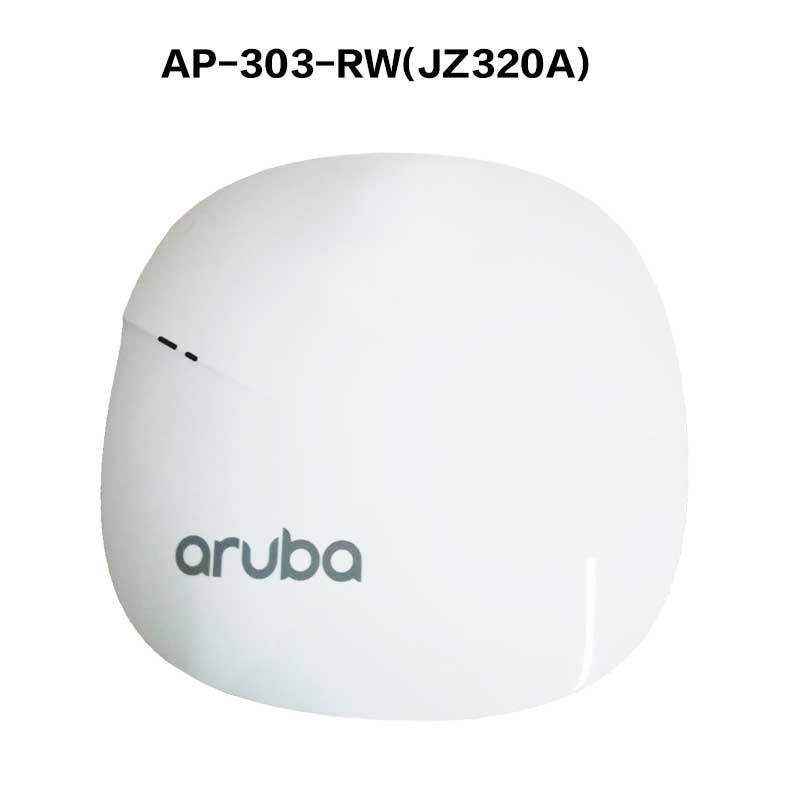

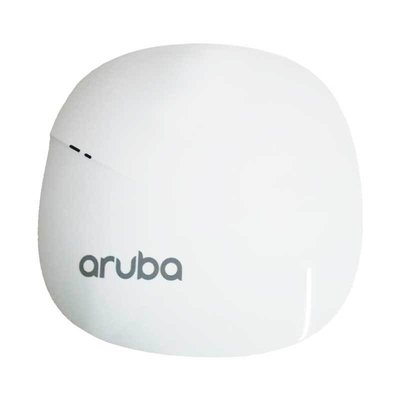

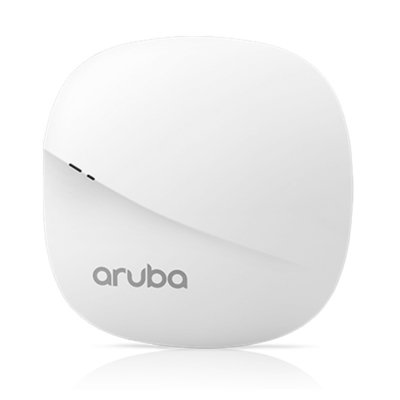

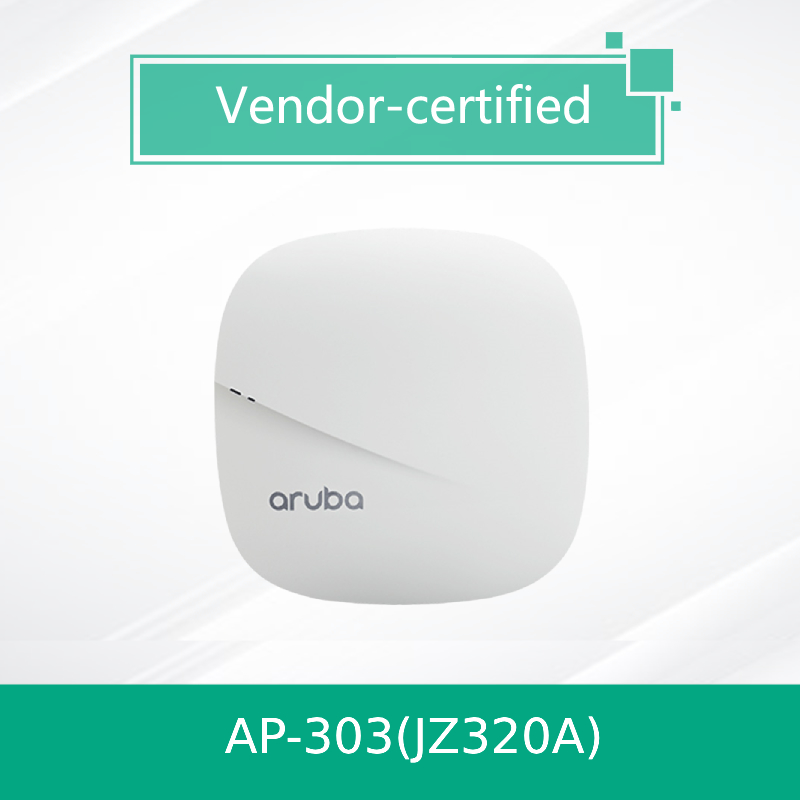

HPE Aruba Networking AP-303 (JZ320A) Wireless Access Point
The HPE Aruba Networking AP-303 (JZ320A) is an affordable mid-range 802.11ac Wave 2 access point designed for medium-density enterprise environments. This versatile AP delivers high-performance connectivity with MU-MIMO technology, integrated Bluetooth Low Energy, and flexible deployment options in both controller-based and controller-less modes.
Key Features
- Dual radio 2x2:2 MU-MIMO 802.11ac Wave 2 technology
- Integrated Bluetooth 5.0 and Zigbee-ready 802.15.4 radio for IoT applications
- Flexible deployment: controller-based or controller-less (Instant) modes
- Advanced Cellular Coexistence (ACC) minimizes interference
- Daisy-chain capability for simplified network expansion
Product Overview
The AP-303 access point from HPE Aruba Networking's 300 SERIES provides reliable Wi-Fi 5 connectivity for cost-sensitive medium-density environments. With maximum concurrent data rates of 867 Mbps (5GHz) and 300 Mbps (2.4GHz), this AP delivers an aggregate peak data rate of 1.2 Gbps. The compact design features internal antennas optimized for ceiling mounting with approximately 30 degrees downtilt for optimal coverage.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | JZ320A (AP-303 RW) |
| Wi-Fi Standards | 802.11a/b/g/n/ac Wave 2 |
| MIMO Configuration | 2x2:2 MU-MIMO |
| Maximum Data Rate | 867 Mbps (5GHz), 300 Mbps (2.4GHz) |
| Ethernet Ports | 1x 10/100/1000BASE-T (PoE input) |
| Bluetooth | BLE 5.0 integrated |
| Power Options | 802.3af PoE or 12V DC |
| Maximum Power Consumption | 10.1W (PoE) / 8.8W (DC) |
| Dimensions | 150 x 150 x 35 mm (5.9 x 5.9 x 1.4 in) |
| Weight | 260g (9.2oz) |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
Advanced Technologies
The AP-303 incorporates several advanced technologies including Multi-User MIMO (MU-MIMO) for simultaneous data transmission to multiple devices, Adaptive Radio Management (ARM) with AirMatch for automatic RF optimization, and Advanced Cellular Coexistence (ACC) to minimize interference from 3G/4G networks. The integrated Trusted Platform Module (TPM) provides secure storage of credentials and secure boot capabilities.
Deployment & Applications
This access point is ideal for medium-density environments such as schools, retail branches, warehouses, hotels, and enterprise offices. The AP-303 supports multiple operating modes including controller-managed, Instant (controller-less), Remote AP for branch deployments, air monitor for wireless intrusion detection, and secure enterprise mesh. The integrated IoT capabilities allow organizations to leverage the AP as an IoT platform for location services, asset tracking, and sensor connectivity without additional infrastructure.
Competitive Advantages
- Lower total cost of ownership compared to similar enterprise-grade access points
- Unified architecture supports both controller-based and controller-less deployments
- Integrated IoT capabilities eliminate need for separate Bluetooth beacons
- Advanced security features including WPA3, wireless intrusion protection, and IP reputation services
- Daisy-chaining capability simplifies network expansion for connected devices
Service & Support
We provide comprehensive support including HPE Aruba Networking's limited lifetime warranty, global shipping options, and 24/7 technical consultation. Our professional team offers integration services and post-sale support to ensure optimal performance of your wireless infrastructure.
Frequently Asked Questions
Q: What is the difference between AP-303 and AP-303P models?
A: The AP-303P includes a second Ethernet port with PoE output capability for connecting and powering additional devices such as IP cameras or IoT gateways.
Q: Does the AP-303 support mesh networking?
A: Yes, the AP-303 can be configured as a secure enterprise mesh portal or point for environments where Ethernet connections are unavailable.
Q: What power source is required for full functionality?
A: The AP-303 supports standard 802.3af PoE or 12V DC power. For full functionality without power-saving limitations, 802.3af PoE is sufficient.
Q: Can the AP-303 be deployed without a controller?
A: Yes, the AP-303 supports controller-less deployment using Aruba InstantOS, where one AP automatically distributes configuration to others in the network.
Installation Notes
- Ensure proper ventilation and operating temperature range (0° to 40°C)
- Verify regulatory domain compliance before deployment
- Use recommended PoE injectors or switches for optimal performance
- For ceiling mounting, use provided clips for secure installation on T-bar drop-tile ceilings
- Keep firmware updated to latest version for security and feature enhancements
