High-Speed Mellanox MMA1b00-C100d Network Interface for Seamless Connectivity
Product Details:
| Brand Name: | Mellanox |
| Model Number: | MMA1B00-C100D |
| Document: | MMA1B00.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | outer box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
|
Detail Information |
|||
| Model NO.: | MMA1B00-C100D | Operating Temperature: | 0℃ - 70℃ |
|---|---|---|---|
| Shape: | Cuboid | Technology: | Ib And Eth Support |
| Specification: | MMA1B00-C100D | Origin: | India / Israel / China |
| Trademark: | Mellanox | Power: | Single 3.3V Power |
| Highlight: | Seamless Connectivity Mellanox MMA1b00-C100d |
||
Product Description

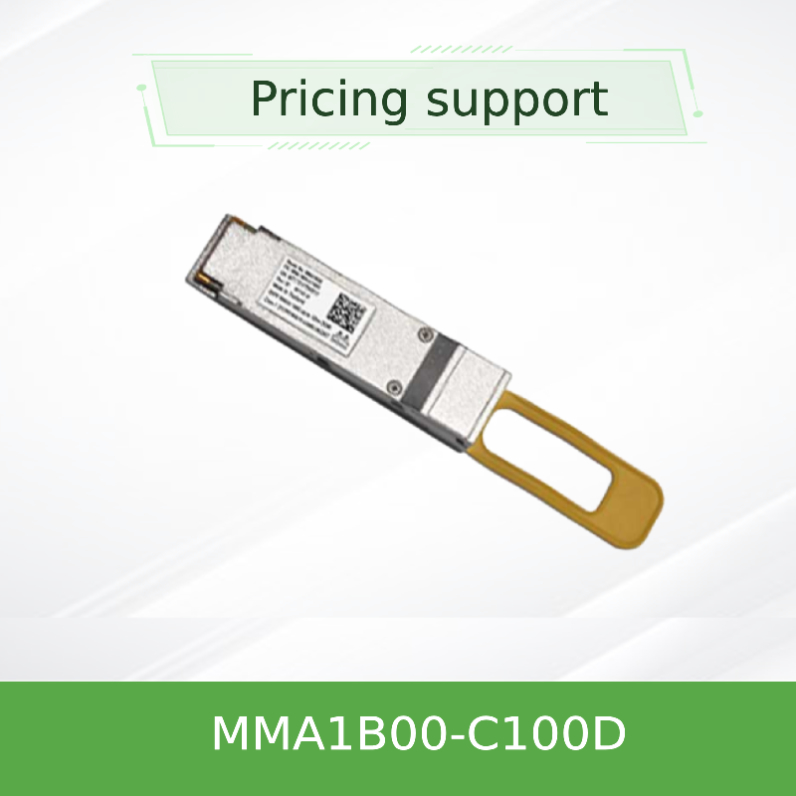

Mellanox MMA1B00-C100D 40GbE QSFP+ SR4 Optical Transceiver
The Mellanox MMA1B00-C100D is a high-performance, 40GbE QSFP+ SR4 optical transceiver designed for reliable and efficient data transmission in high-speed network environments. It supports distances up to 150 meters over OM4 multi-mode fiber optic cable and features digital diagnostic monitoring (DDM), low power consumption, and hot-pluggability. Ideal for data centers, enterprise networks, and high-performance computing applications.
Key Features:
- 40GbE Ethernet (4x10GbE) over multi-mode fiber optic cable
- Digital Diagnostic Monitoring (DDM) for real-time performance tracking
- Hot-pluggable QSFP+ form factor
- Low power consumption: 1.3W typical
- Compliant with IEEE 802.3ba, SFF-8436, and RoHS
Technology
The transceiver utilizes VCSEL (Vertical Cavity Surface Emitting Laser) technology operating at 850nm wavelength. It complies with industry standards including IEEE 802.3ba 40GBASE-SR4, SFF-8436, and SFF-8636 for I²C management. The device supports programmable Tx equalization and Rx output control for optimized signal integrity.
Working Principle
The MMA1B00-C100D converts electrical signals into optical signals using four independent 10.3125 Gb/s channels. These signals are transmitted over a parallel multi-mode fiber optic cable via an MPO connector. The receiver side converts the optical signals back to electrical data, ensuring high-speed, low-latency communication with minimal bit error rate (BER < 1E-15).
Applications
- Data center interconnects and spine-leaf architectures
- High-performance computing (HPC) clusters
- Enterprise network aggregation
- Cloud infrastructure and server farms
- Storage area networks (SANs)
Specifications
| Parameter | Value |
|---|---|
| Model | MMA1B00-C100D |
| Data Rate | 40 Gb/s (4x10.3125 Gb/s) |
| Wavelength | 850 nm |
| Max Distance | 150m (OM4), 100m (OM3) |
| Connector | MPO |
| Power Consumption | 1.3W (Typical) |
| Operating Temperature | 0°C to 70°C |
Advantages
- Lower power consumption compared to competitive optical transceivers
- Advanced DDM capabilities for proactive network management
- High compatibility with Mellanox switches and industry-standard hardware
- Rigorous testing ensures reliability and long-term performance
Service & Support
We offer a 1-year warranty on all Mellanox optical transceivers. Our technical team provides 24/7 support for installation, configuration, and troubleshooting. Bulk order discounts and fast shipping available.
Frequently Asked Questions
Q: What type of fiber optic cable is compatible with this transceiver?
A: It is compatible with OM3 and OM4 multi-mode fiber optic cables.
Q: Is the transceiver hot-pluggable?
A: Yes, it supports hot-plugging for easy installation and maintenance.
Q: Does it support digital diagnostics?
A: Yes, it provides DDM for monitoring voltage, temperature, TX/RX power, and bias current.
Precautions
- Avoid exposing the transceiver to static electricity or physical shock.
- Ensure compatible fiber optic cable and connectors are used.
- Do not exceed maximum operating temperature or humidity ranges.
- Verify compatibility with host equipment before installation.
