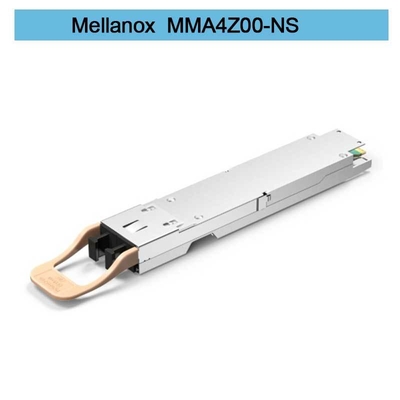

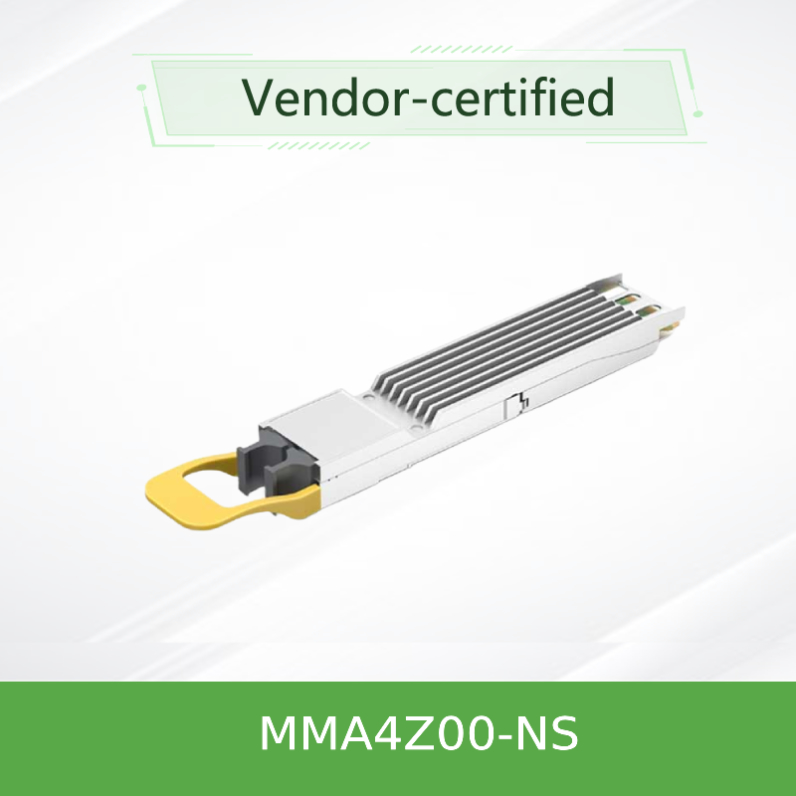

NVIDIA MMA4Z00-NS 800Gb/s Twin-port OSFP SR8 Optical Transceiver

1. Product Overview

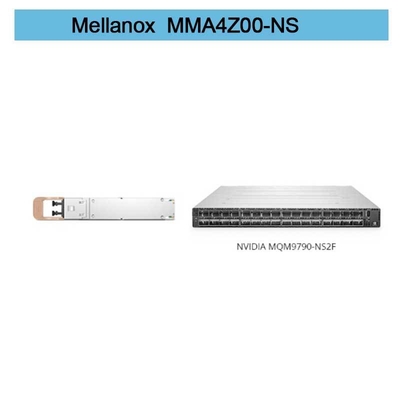

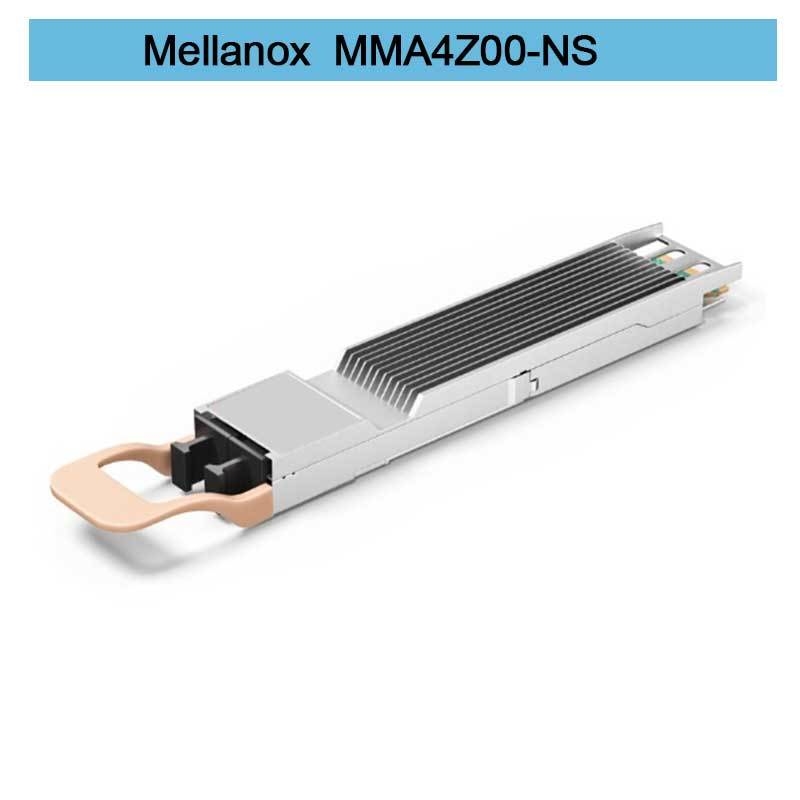

The NVIDIA MMA4Z00-NS is an 800Gb/s twin-port OSFP optical transceiver designed for high-performance data center and enterprise networking. It supports 2x400Gb/s multimode SR8 connectivity with a reach of up to 50 meters using OM4 fiber. This transceiver is engineered for use in NVIDIA Quantum-2 and Spectrum-4 switches, providing seamless integration for both InfiniBand and Ethernet protocols. It features a finned-top design for enhanced thermal management in air-cooled systems.

2. Key Characteristics

• Dual-port 800G SR8 multimode transceiver with 2x MPO-12/APC connectors
• Supports 100G-PAM4 modulation per lane
• Hot-pluggable, RoHS compliant, and Class 1 laser safe
• Low-power sleep mode (2.0W) and max power consumption of 17W
• Operating case temperature: 0°C to 70°C

3. Technology & Standards

The transceiver complies with OSFP MSA Rev. 1.12 and CMIS 4.0 management interface. It uses 850nm VCSEL technology and supports digital diagnostic monitoring (DDM) for real-time performance tracking. The device is also compatible with IEEE and InfiniBand standards.

4. Working Principle

The MMA4Z00-NS utilizes eight multimode fibers (4 Tx, 4 Rx per port) to transmit and receive 100G-PAM4 signals. Each port operates independently, enabling flexible connectivity options. The integrated microcontroller monitors key parameters such as temperature, voltage, and optical power, ensuring reliable operation.

5. Applications

• Data center spine-leaf architectures
• High-performance computing (HPC) clusters
• AI and machine learning infrastructure
• Cloud service provider networks
• Enterprise core and aggregation switching

6. Specifications

7. Advantages & Selling Points

• Dual-port design doubles port density in switch systems
• Automatic protocol detection (InfiniBand or Ethernet)
• Low latency and high reliability for critical applications
• Robust thermal management with finned-top design
• Supported by NVIDIA end-to-end validation and warranty

8. Service & Support

We offer 24/7 technical support, worldwide shipping, and a full warranty on all products. Our team provides pre-sales consultation and post-sales integration assistance to ensure seamless deployment.

9. Frequently Asked Questions

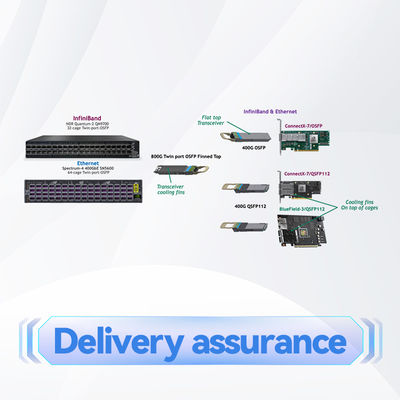

Q: What is the difference between finned-top and flat-top versions?
A: Finned-top is for air-cooled switches; flat-top is for liquid-cooled or DGX-H100 systems.

Q: Can I use single-mode fibers with this transceiver?
A: No, the MMA4Z00-NS is designed for multimode fiber only.

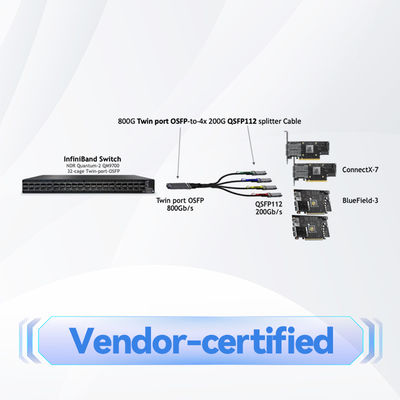

Q: Does it support splitter cables for 200G operation?
A: Yes, with 1:2 splitter cables, each port can support two 200G connections.

10. Precautions

• Use only NVIDIA-compatible MPO-12/APC optical fiber cables.
• Avoid mixing straight and splitter cables in the same transceiver.
• Ensure proper cleaning of optical connectors before insertion.
• Do not exceed maximum operating temperature and power ratings.
